Remove/Install Fuel Pump Control Unit - Ar47.20-D-5717A
Model 906
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||
| 1 | Connect diagnostic system and read out variant coding for FSCU (4) | When replacing the FSCU (4). | |
| AD00.00-D-2000-04SD | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove driver's seat | AR91.10-D-1010H | |
| 4 | Remove cover under the driver's seat | ||

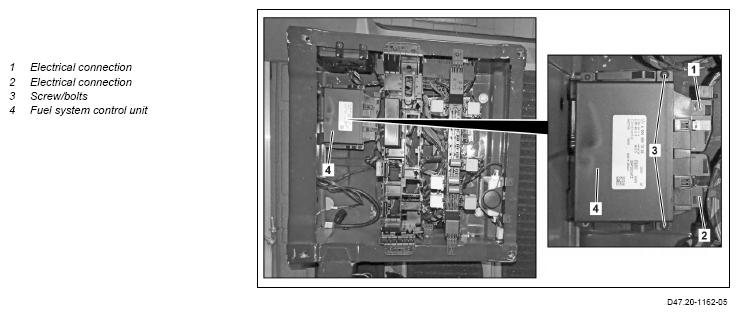

| 5 | Release and disconnect electrical connections (1, 2) | ||
| 6 | Remove screw/bolt (3) | ||
| 7 | Remove FSCU (4) | ||
| 8 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Carry out an engine test run |
