Remove And Install Central Electronics Control Unit - Ar54.21-S-0025JC

MODEL 906 with CODE (ZO1) Camper James Cook Compact with CODE (ZO2) Camper James Cook Classic

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge	All models	AH54.00-P-0001-01A
1	Remove lining of auxiliary battery compartment		AR86.60-S-0055JC
2	Switch off electrical system at battery master switch	See owner's manual.

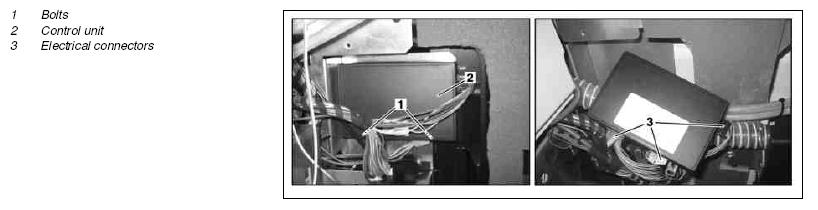

3	Remove bolt (1)
4	Remove control unit (2)	To do this, remove control unit (2) downwards and disconnect electrical connectors (3).
5	Install in the reverse order
6	Code control unit (2)		AR54.21-S-0025-01JC
	Checking
7	Check function of mobile home equipment
