Remove/Install Steering Column Module - Ar54.25-D-2802M
Model 906

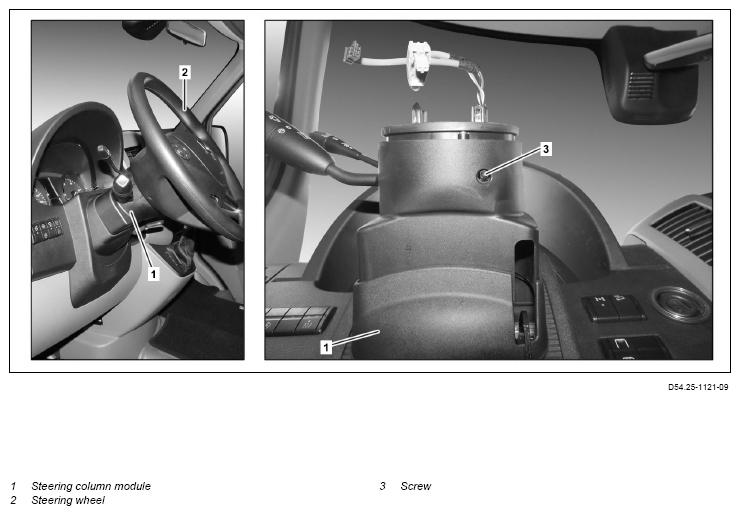

Shown on model 906 with code CL1 (Tilt and height adjustable steering wheel), with code MS1 (Cruise control) and with code SA5 (Driver airbag)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||
| 1 | Remove steering wheel (2) | AR46.10-D-0100E | |
| 2 | Loosen screw/bolt (3) | ||
| 3 | Detach steering column tube module (1) from steering column and remove | ||
| 4 | Install in the reverse order | ||
| Check | |||
| 5 | Check all functions of components of steering column tube module (1) |
