Trailer Connection Unit [AAG] Control Unit, Component Description - GF31.19-D-4200H
MODEL 906.111/113/131/133/135/153/155/211/213/231/233/235/253/255/611/613/631/633/635/637/653/655/657/711/713/731/733/735 with CODE (E43) Trailer hitch socket
Location

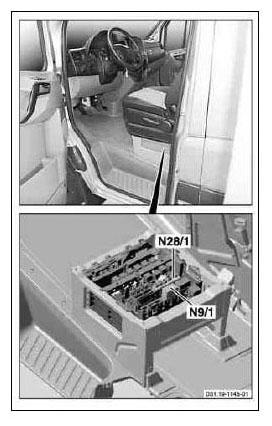

The trailer connection unit [AAG] control unit is located in the driver seat frame.
Task
The trailer connection unit [AAG] control unit forwards the signals of the exterior lights system (ABL) to the trailer hitch socket (13-pin) (X58) and reports any change in status.
The trailer connection unit [AAG] control unit is connected to the Controller Area Network bus class B (interior) CAN-B and communicates with the following control units via this CAN:
- With the EIS [EZS] control unit (N73)
- The trailer connection unit [AAG] control unit transmits e.g. "ANH_ERK (trailer operation detected)"
- The trailer connection unit [AAG] control unit receives e.g. "U_BATT (battery voltage)"
- With the instrument cluster (A1)
- The trailer connection unit [AAG] control unit transmits e.g. "BEL_ANH_ST1 (trailer lighting status)"
- The trailer connection unit [AAG] control unit receives e.g. "KM_KI (kilometer reading)"
- With the electronic level control [ENR] control unit (N97), with code (CE2) Rear air suspension
- The trailer connection unit [AAG] control unit transmits e.g. "ANH_ERK (trailer operation detected)"
- With the SAM control unit (N10)
- The trailer connection unit [AAG] control unit transmits e.g. "BEL_ANH_ST2 (trailer lighting status)"
- The trailer connection unit [AAG] control unit receives e.g. "LICHT_ST (exterior lights or rotary light switch status (S1))"
- With the PTS control unit (N62), with code (EZ8) Parktronic system (PTS)
- The trailer connection unit [AAG] control unit transmits e.g. "ANH_ERK (trailer operation detected)"
