Remove/Install O2 Sensor - Ar07.04-D-0080SF
ENGINE 642.992 in MODEL 906
| Remove/install | |||
| Risk of injury to skin and eyes caused by handling hot or glowing objects. | Wear safety gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |

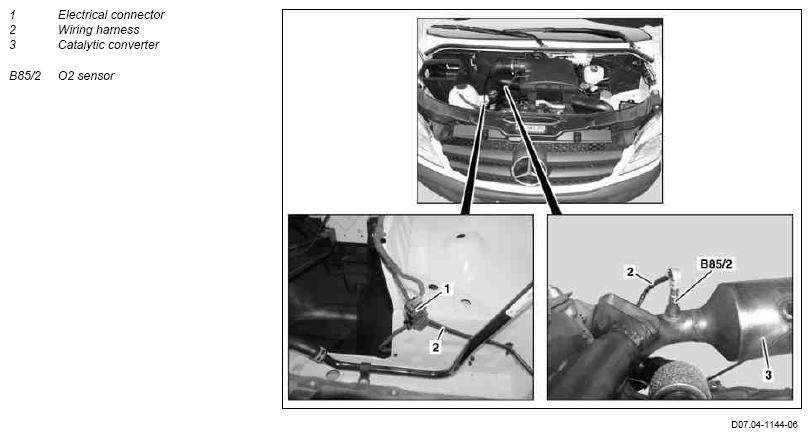

| 1 | Disconnect electrical connector (1) | ||
| 2 | Expose electric wiring harness (2) | ||
| 3 | Remove O2 sensor (B85/2) on catalytic converter (3) | *BA07.04-N-1003-01G | |
| Paste | *BR00.45-Z-1005-06A | ||
| 4 | Install in the reverse order | ||
| Check | |||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns from working on the vehicle as it is being started or when the engine is running | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 5 | Test run engine and check exhaust system in the area of the O2 sensor (B85/2) for leaks |
O2 SENSOR TO CATALYTIC CONVERTER TORQUE SPECIFICATION - ENGINE 642.992
| Number | Designation | Engine 642.992 | |
|---|---|---|---|
| BA07.04-N-1003-01G | O2 sensor to catalytic converter | Nm | 45 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1005-06A | Paste, hot lubrication 1 kg, DB supply specification 6879.20 | A 000 989 76 51 |
