Overview of automatic climate control system component - GF83.40-P-9995CE

MODEL 204.0/2 as of model year 2009

MODEL 204.3

MODEL 204.9

Shown on model 204.0

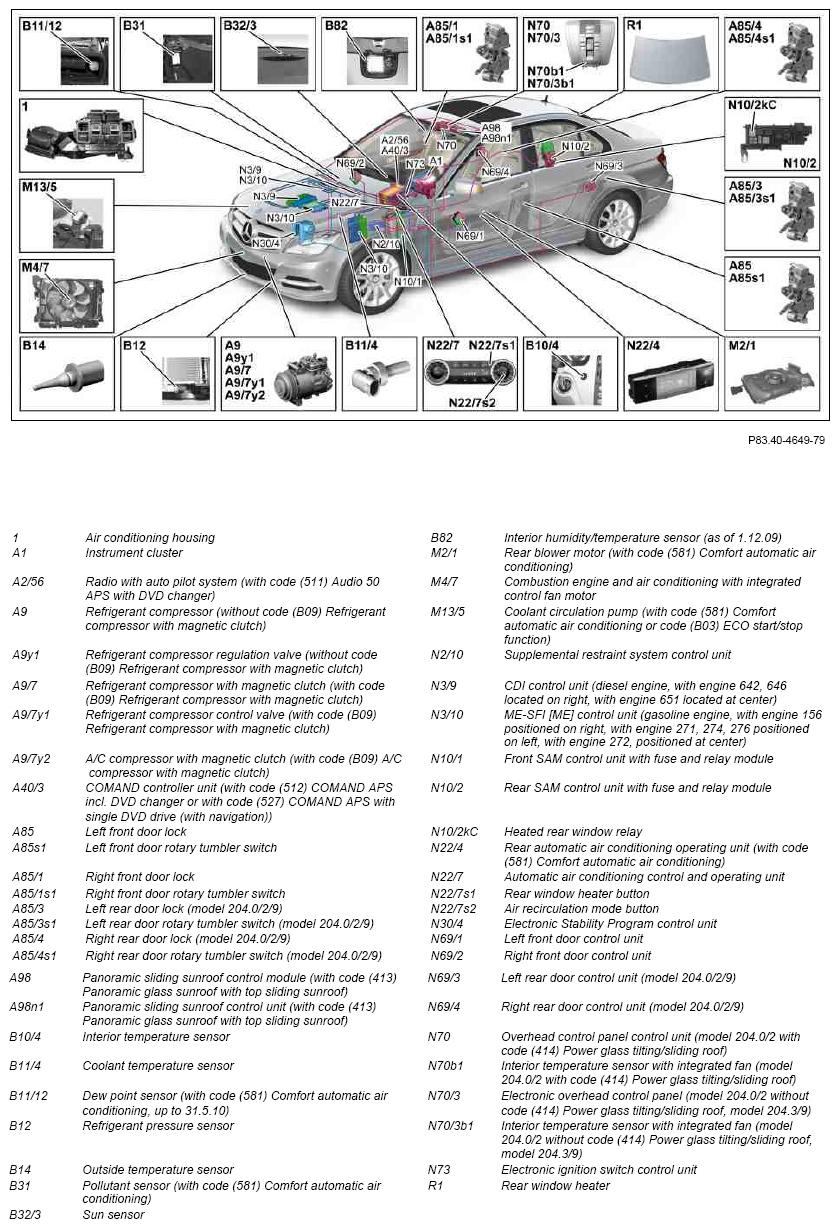

Fig 1: Overview Of Automatic Climate Control System Component - Shown On Model 204.0
G09984170Courtesy of MERCEDES-BENZ USA

IMPORTANT In model 204.2 rear window antenna amplifier 1 (A2/71) is also installed.

up to 31.5.10

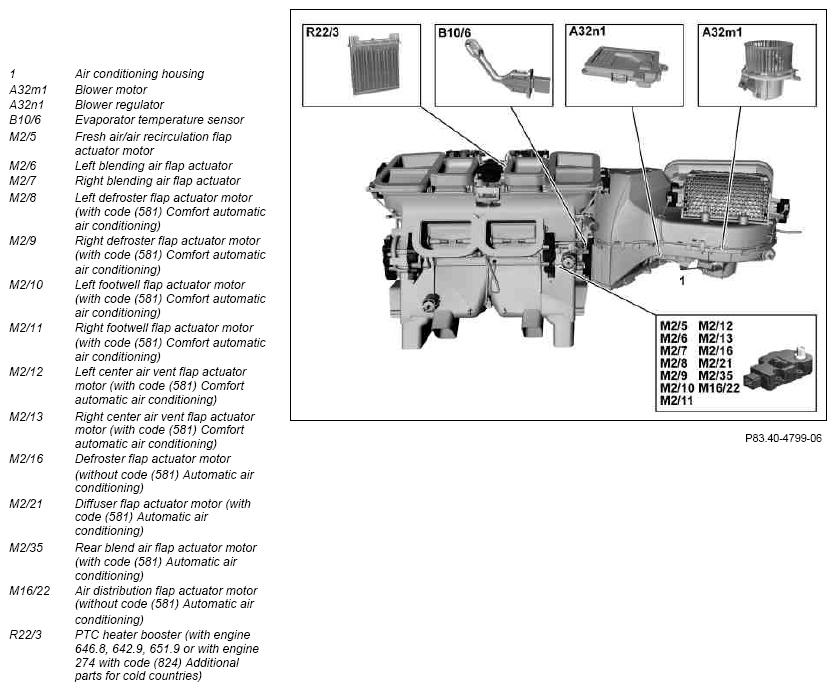

Fig 2: Overview Of Automatic Climate Control System Component
G09984171Courtesy of MERCEDES-BENZ USA

As of 1.6.10

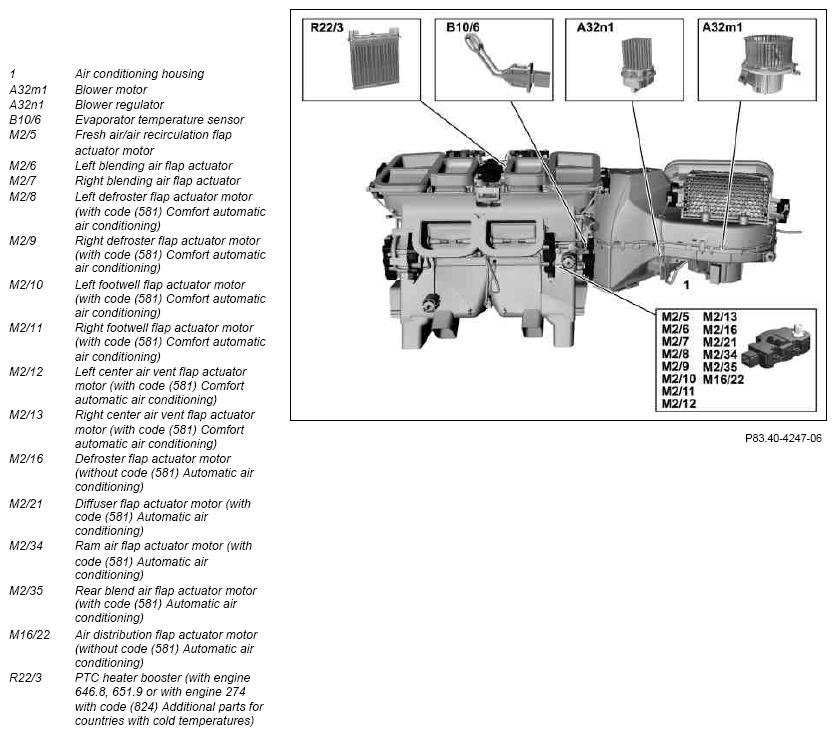

Fig 3: Overview Of Automatic Climate Control System Component
G09984172Courtesy of MERCEDES-BENZ USA
  Component description for instrument cluster A1 GF54.30-P-6000CE
  Component description for radio with auto pilot system MODEL 204.0/2 as of model year 2009 with CODE 511 (Audio 50 APS with DVD changer) MODEL 204.0/2 as of model year 2009 with CODE 525 (MB Audio 50 APS radio) MODEL 204.3 with CODE 511 (Audio 50 APS with DVD changer) MODEL 204.3 with CODE 525 (MB Audio 50 APS radio) MODEL 204.9 with CODE 511 (Audio 50 APS with DVD changer) MODEL 204.9 with CODE 525 (MB Audio 50 APS radio) A2/56 GF82.61-P-4112CE
  Component description for COMAND controller unit MODEL 204.0/2 as of model year 2009 up to model year 2012 with CODE 512 (COMAND APS with DVD changer) MODEL 204.0/2 as of model year 2009 up to model year 2012 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 498 (Japanese version) MODEL 204.0 as of model year 2009 up to model year 2012 with CODE 528 (COMAND with DVD changer) MODEL 204.9 as of model year 2010 up to model year 2013 with CODE 528 (COMAND with DVD changer) without CODE 512 (COMAND APS with DVD changer) MODEL 204.9 up to model year 2013 with CODE 512 (COMAND APS with DVD changer) MODEL 204.9 up to model year 2013 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 498 (Japanese version) A40/3 GF82.85-P-3136CE
MODEL 204.0/2 as of model year 2012 with CODE 512 (COMAND APS with DVD changer) without CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 204.0/2 as of model year 2012 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 512 (COMAND APS with DVD changer) MODEL 204.3 with CODE 512 (COMAND APS with DVD changer) MODEL 204.3 with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 204.9 as of model year 2013 with CODE 512 (COMAND APS with DVD changer) without CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 204.9 as of model year 2013 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 512 (COMAND APS with DVD changer) A40/3 GF82.85-P-3136CEA
MODEL 204.0/2 as of model year 2009 up to model year 2012 with CODE 498 (Japanese version) with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 204.9 up to model year 2013 with CODE 498 (Japanese version) with CODE 527 (COMAND APS with single DVD drive (with navigation)) A40/3 GF82.85-P-3136CEJ
  Component description for panoramic sliding roof control module MODEL 204.0/2 as of model year 2009 with CODE 413 (Panoramic glass roof with top sliding roof) MODEL 204.3 with CODE 413 (Panoramic glass roof with top sliding roof) MODEL 204.9 with CODE 413 (Panoramic glass roof with top sliding roof) A98, A98n1 GF77.20-P-4106CE
  Component description for CDI control unit MODEL 204.0/2 with ENGINE 642.8 as of model year 2009MODEL 204.9 with ENGINE 642.8 N3/9 GF07.16-P-6000OG
MODEL 204.0/2 with ENGINE 642.9 as of model year 2009MODEL 204.9 with ENGINE 642.9 N3/9 GF07.16-P-6000OH
MODEL 204.0/2 with ENGINE 646.8 as of model year 2009 N3/9 GF07.16-P-6000OL
MODEL 204.0/2 with ENGINE 651.9 as of model year 2009MODEL 204.3 with ENGINE 651.9MODEL 204.9 with ENGINE 651.9 N3/9 GF07.16-P-6000OM
  Component description for ME-SFI (ME) control unit MODEL 204.0/2 with ENGINE 156.9 as of model year 2009MODEL 204.3 with ENGINE 156.9 N3/10 GF07.61-P-6000MAW
MODEL 204.0/2 with ENGINE 271.8 as of model year 2009MODEL 204.3 with ENGINE 271.8 N3/10 GF07.61-P-6000MG
MODEL 204.041/241 with ENGINE 271.950 as of model year 2009MODEL 204.044/045/245 with ENGINE 271.910 as of model year 2009MODEL 204.046/246 with ENGINE 271.952 as of model year 2009 N3/10 GF07.61-P-6000MFW
MODEL 204.0 (except 204.065) with ENGINE 272.9 (except 272.982) as of model year 2009MODEL 204.2 with ENGINE 272.9 as of model year 2009MODEL 204.9 with ENGINE 272.9 N3/10 GF07.61-P-6000MI
MODEL 204.065 with ENGINE 272.982 as of model year 2009 N3/10 GF07.61-P-6000MIE
MODEL 204.0/2 with ENGINE 274.9 as of model year 2009MODEL 204.3 with ENGINE 274.9MODEL 204.9 with ENGINE 274.9 N3/10 GF07.61-P-6000MR
MODEL 204.0/2 with ENGINE 276.9 as of model year 2009MODEL 204.3 with ENGINE 276.9MODEL 204.9 with ENGINE 276.9 N3/10 GF07.61-P-6000MM
  Component description for front SAM control unit with fuse and relay module N10/1 GF54.21-P-6070CE
  Component description for rear SAM control unit with fuse and relay module N10/2 GF54.21-P-6030CE
  Component description for automatic air conditioning control and operating unit MODEL 204.0/2 as of model year 2009 without CODE 581 (Comfort automatic air conditioning) MODEL 204.3MODEL 204.9 without CODE 581 (Comfort automatic air conditioning) N22/7 GF83.40-P-3000CEA
MODEL 204.0/2 as of model year 2009 with CODE 581 (Comfort automatic air conditioning) MODEL 204.9 with CODE 581 (Comfort automatic air conditioning) N22/7 GF83.40-P-3000CEB
  component description for electronic stability Program control unit N30/4 GF42.45-P-5119CE
  Component description for left front door control unit N69/1 GF72.29-P-6001CE
  Component description for right front door control unit N69/2 GF72.29-P-6009CE
  Component description for rear door control unit MODEL 204.0/2 as of model year 2009MODEL 204.9 N693, N694 GF72.29-P-6021CE
  Component description for overhead control panel control unit MODEL 204.0/2 as of model year 2009 with CODE 414 (Power glass tilting/sliding roof) N70 GF82.20-P-5216CE
  Component description for electronic overhead control panel MODEL 204.0/2 as of model year 2009 without CODE 414 (Power glass tilting/sliding roof) MODEL 204.3MODEL 204.9 N70/3 GF82.20-P-5217CE
  Component description for the electronic ignition lock control unit N73 GF80.57-P-6001CE
  Table of contents for automatic climate control function description   GF83.40-P-0995CE
