Remove/install sidebag sensor - AR91.60-P-0710EC
MODEL 204.3, 207.3/4
Illustrated on model 207.3
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Adjust front seat to foremost position | ||
| 2 | Disconnect ground cable | Model 204.3 | AR54.10-P-0003CW |
| Model 207.3/4 | AR54.10-P-0003EW | ||

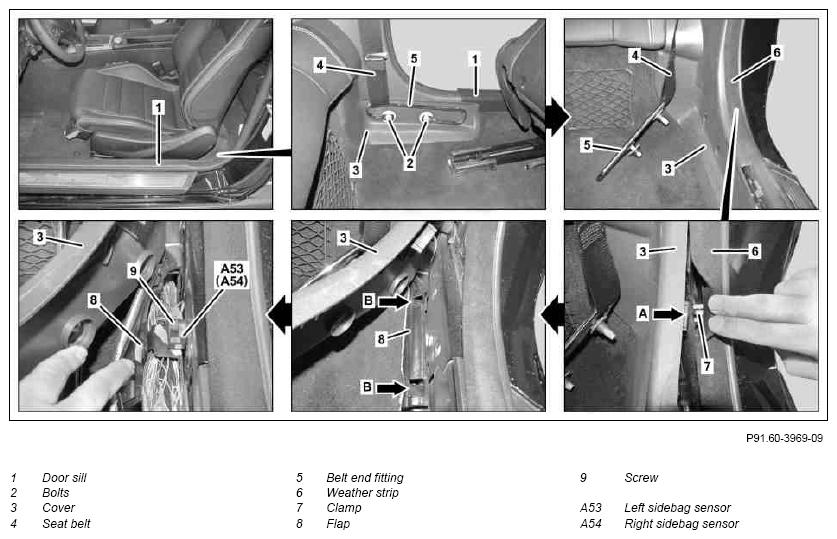

| 3 | Unclip door sill (1) | Fig 2 | |
| 4 | Remove screws/bolts (2) at belt end fitting (5) | ||
| *BA91.40-P-1003-01P | |||
| 5 | Remove belt end fitting (5) with seat belt (4) and place to one side | ||
| 6 | Remove edge stripping (6) in area of paneling (3) | ||
| 7 | Unclip catch hook (arrow A) of panel (3) from clamp (7) | ||
| 8 | Swivel paneling (3) to one side until flap (8) of cable duct is accessible | ||
| 9 | Release catch hooks (arrows B) at flap (8) and swivel flap (8) to one side until screw/bolt (9) is accessible | ||
| 10 | Remove screw/bolt (9) at left sidebag sensor (A53) or at right sidebag sensor (A54) | *BA91.60-P-1010-01M | |
| 11 | Remove left sidebag sensor (A53) or right sidebag sensor (A54) and disconnect electrical connector | ||
| 12 | Install in the reverse order | ||
| 13 | Read out fault memory, erase if necessary | After replacing the left sidebag sensor (A53) or the right sidebag sensor (A54). | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 204.3 | Model 207 | |
|---|---|---|---|---|
| BA91.40-P-1003-01P | Bolt at front belt end fitting | Nm | 35 | 35 |
AIRBAG
| Number | Designation | Model 204.3 | Model 207 | |
|---|---|---|---|---|
| BA91.60-P-1010-01M | Screw, sidebag and windowbag sensor to B-pillar | Nm | 8 | 8 |
