Remove/install front engine mount and/or engine support - AR22.10-P-1260FH

ENGINE 276.9 in MODEL 204 with TRANSMISSION 722.9 (except 722.96)

ENGINE 276.9 in MODEL 207 with TRANSMISSION 722.9 (except 722.96)

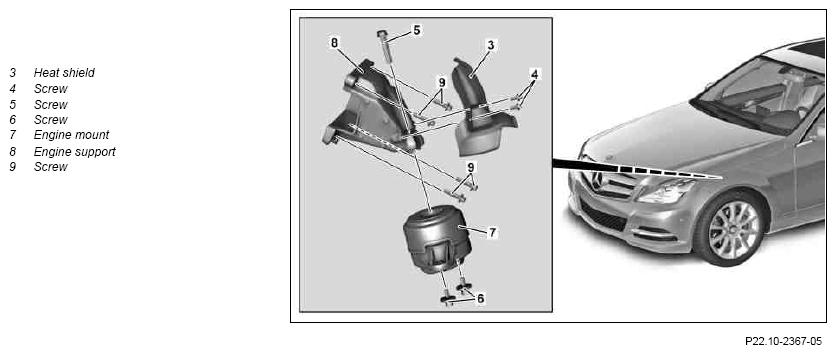

Fig 1: Identifying Front Engine Mount Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SF
1	Remove front engine cover
2	Detach ground line from battery	When removing the right engine support (8)
	Notes on battery		AH54.10-P-0001-01A
		ENGINE 276 in MODEL 204Without 4MMATIC	AR54.10-P-0003CW
		ENGINE 276 in MODEL 207	AR54.10-P-0003EW
3.1	Remove air filter housing with engine air intake duct upstream of air filter	For removing right-hand engine mount (7)
		Bolt, air filter to cylinder head cover	*BA09.10-P-1001-01M
		Bolt, air filter to air intake pipe support brace	*BA09.10-P-1002-01M
3.2	Unclip ME-SFI [ME] control unit and place to one side with connected lines	For removing left-hand engine mount (7)
		Remove/install injection system control unit	AR07.08-P-7008FH
4	Remove heat shield (3) above engine mount (7) on engine support (8); to do this remove screw/bolts (4)	Bolt, heat shield to engine support	*BA22.10-P-1003-02A
5	Mount engine hoist and raise engine slightly	When removing the right engine support (8)
			AR33.10-P-0105CW
		Only raise engine sufficiently that the engine mount (7) is not under tension.
6	Remove screw/bolts (5) for engine support (8) on engine mounts (7)	Bolt, front engine mount to engine support	*BA22.10-P-1001-03E
		Engine mount wrench set	Figure
7	Lift engine	Pay attention when lifting out engine that no cables and lines are damaged and that engine does not lean against the bulkhead.
8	Remove bottom engine compartment paneling	ENGINE 276 in MODEL 204 (except 204.9), 207Without 4MMATIC	AR61.20-P-1105EW
		ENGINE 276 in MODEL 204.9	AR61.20-P-1105CY
9	Unscrew screw/bolts (6) for engine mounts (7) on front axle carrier	Bolt, front engine mount to front axle carrier	*BA22.10-P-1002-03E
10	Detach steering coupling on lower steering shaft	For removing left-hand engine mount (7)
			AR46.10-P-8000CW
11	Remove engine mount (7) downwards	For assembly the engine mount (7) always ensure that a correct installation position engine mount (7) in pairs. Pay attention to environmental protection regulations for disposal of engine mounts (7). Dispose engine mounts (7) into mixed scrap.
12.1	Remove screw/bolt from A/C compressor at engine support	When removing the left engine support (8)
		Bolt, refrigerant compressor to timing case/crankcase/engine support	*BA83.55-P-1001-01M
12.2	Disconnect electrical connection on alternator	When removing the right engine support (8)
		Remove/install alternator	AR15.40-P-5032FH
13	Remove screw/bolt from starter heat shield (3) on engine support (8)	When removing the right engine support (8)
14	Detach engine support (8) on cylinder crankcase and remove; remove screw/bolts (9) to do this	Bolt, engine support to crankcase	*BA22.10-P-1001-02A
		Set of flexible head wrenches	Fig 3
15	Install in the reverse order

Fig 2: Identifying Engine Mount Wrench Set (001 589 01 16 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Set Of Flexible Head Wrenches (001 589 81 09 00)

Courtesy of MERCEDES-BENZ USA
