Remove/install front engine mounts and/or engine support - AR22.10-P-1260CW

ENGINES 271 in MODEL 172, 204, 207, 212

Shown on engine 271.9

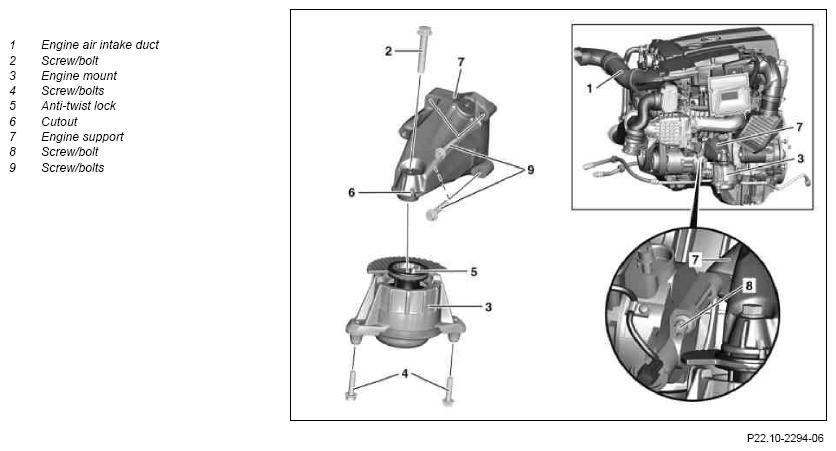

Fig 1: Identifying Front Engine Mounts/Support Components - Shown On Engine 271.9

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

27.9.11	Value changed: Screw/bolt, front engine mount to engine support	Model 207 except 4	*BA22.10-P-1001-03E
	Value changed: Screw/bolt, front engine mount to engine support	Model 207 except 4	*BA22.10-P-1001-03E

	Remove/install
	Risk of death  caused by vehicle slipping or tilting off of the vehicle lift.	Align vehicle between vehicle lift columns and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
		Always replace engine mounts in pairs.
1	Detach engine air intake duct (1) from cold air intake
2	Remove bolt (2) on right engine mount (3) from above		*BA22.10-P-1001-03E
3	Mount engine hoist	Model 204, 207	AR33.10-P-0105CW
		Model 212	AR33.10-P-0105EW
		Model 172	AR33.10-P-0100-01V
4	Remove engine compartment paneling	Model 204
		Model 207, 212	AR61.20-P-1105EW
		Model 172	AR61.20-P-1105W
5	Remove bolt (2) on left engine mount (3) from below	Engine 271.8: Bolt (2) remains on the engine support (7).
			*BA22.10-P-1001-03E
			Figure
6	Raise engine with engine hoist
7	Removes screw/bolts (4) from engine mounts (3)		*BA22.10-P-1002-03E
8.1	Remove right charge air hose upstream of charge air cooler	Engine 271.9
8.2	Detach A/C compressor from timing case cover and engine support (7)	Engine 271.8 Lay refrigerant compressor with attached pipe system to the side below in the engine compartment and secure against falling down.	AR83.55-P-5300CW
9	Take out engine mount (3)	Remove right engine mount (3) over front axle carrier. The anti-twist locks (5) for engine supports (3) must sit in the cutouts (6) for engine mount (7). Pay attention to environmental protection regulations for disposal of engine mounts (3). Dispose engine mounts (3) into mixed scrap.
	Left engine support
10.1	Remove compressor	Engine 271.9	AR09.50-P-4705CW
10.2	Remove air pump	Engine 271.8 If installed.	AR14.30-P-7251EVO
11	Remove bolt (8) on refrigerant compressor from engine support (7)	Engine 271.9
			*BA83.55-P-1003-01G
12	Remove screw/bolts (9) from the cylinder crankcase and take out the engine support (7)		*BA22.10-P-1001-02A
	Right engine support
13	Unclip electrical line for oxygen sensor upstream of catalytic converter at heat shield	Engine 271.8
14	Remove screw/bolts (9) from the cylinder crankcase and take out the engine support (7)	Remove engine support (7) upwards. Engine 271.8: Remove engine support (7) with heat shield.
			*BA22.10-P-1001-02A
15	Install in the reverse order

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation				Model 204 except 4MATIC, except model 204.9	Model 212 except 4
BA22.10-P-1001-03E	Bolt connecting front engine mount to engine support	M10		Nm	50	50
		M12	Stage 1	Nm	-	85
			Stage 2	∠°	-	90
BA22.10-P-1002-03E	Bolt, front engine mount to front axle carrier			Nm	28	28

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation				Model 207 except 4MATIC	Model 207 4
BA22.10-P-1001-03E	Bolt connecting front engine mount to engine support	M10		Nm	50	50
		M12	Stage 1	Nm	85	85
			Stage 2	∠°	90	90
BA22.10-P-1002-03E	Bolt, front engine mount to front axle carrier			Nm	28	28

REFRIGERANT COMPRESSOR

Number	Designation		Engine 271 except in model 204, 207
BA83.55-P-1003-01G	Screw/bolt, refrigerant compressor to timing case/crankcase/engine support	Nm	20

REFRIGERANT COMPRESSOR

Number	Designation		Engine 271 in model 204, 207 with Denso refrigerant compressor	Engine 271 in model 204, 207 with Valeo refrigerant compressor
BA83.55-P-1003-01G	Screw/bolt, refrigerant compressor to timing case/crankcase/engine support	Nm	20	20

ENGINE SUPPORT (ENGINE SIDE)

Number	Designation			Engine 271
BA22.10-P-1001-02A	Bolt, engine support to cylinder crankcase	Stage 1	Nm	20
		Stage 2	∠°	90

Fig 2: Identifying Engine Bearing Wrenches Set (001 589 01 16 00)

Courtesy of MERCEDES-BENZ USA
