Variable Speed Limiter, function - GF30.30-P-3001SX

ENGINE 156, 273, 275 in MODEL 216 with CODE (233) Distronic Plus except CODE (494) USA version up to Model Year 08

ENGINE 156, 272, 273, 275, 642, 629 in MODEL 221 with CODE (233) Distronic Plus except CODE (494) USA version up to Model Year 08

Variable Speed Limiter activated

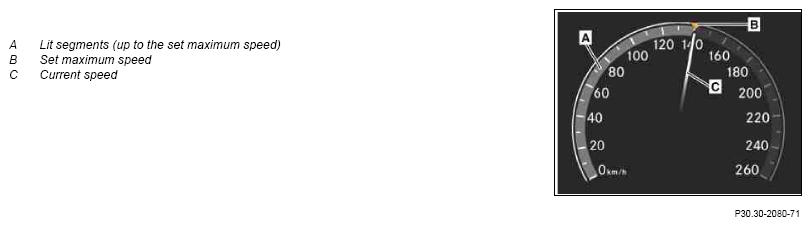

Fig 1: Identifying Variable Speed Limiter Activated Display

Courtesy of MERCEDES-BENZ USA

The Variable Speed Limiter (also known as the limiter) is an additional function of DISTRONIC PLUS and is integrated in the radar sensors control unit (SGR) (N62/1).

The Variable Speed Limiter allows the driver to set a maximum speed in the range from 30 km/h up to the top speed of the vehicle. If the vehicle approaches the set maximum speed, the set maximum speed is maintained by engine intervention and if necessary by intervention by the brake system.

The CC [TPM] switch can be moved up or down (S40/4) to increase or decrease the maximum speed in 1 km/h or 10 km/h increments (two settings).

Function requirements

By pressing the CC [TPM] switch, the DISTRONIC PLUS position is deselected and the Variable Speed Limiter selected. The LIM indicator lamp in the CC [TPM] switch lights up.

By pressing the CC [TPM] switch, the Variable Speed Limiter is selected and DISTRONIC PLUS deactivated simultaneously.

Activation

Pulling or moving the CC [TPM] switch up/down activates the Variable Speed Limiter.

When the Variable Speed Limiter is activated, the segments in the speedometer arc are illuminated from the beginning of the scale up to the set maximum speed. The set maximum speed is marked with an orange-colored triangle.

Deactivation

The Variable Speed Limiter is deactivated if:

The CC [TPM] switch is pushed forwards
The driver switches to DISTRONIC PLUS by pressing the CC [TPM] switch (LIM indicator lamp off)
Kickdown (accelerator pedal depressed > 90%) is activated and the vehicle speed is less than 20 km/h away from the set maximum speed

Variable and Permanent Speed Limiters have the sales designation SPEEDTRONIC.

	Component description for the CC [TPM] switch	S40/4	GF30.20-P-2100SX
	Component description for the radar sensors control unit	N62/1	GF30.30-P-3301SX
