Trailer Recognition Control Unit Connector End View (N28/1)

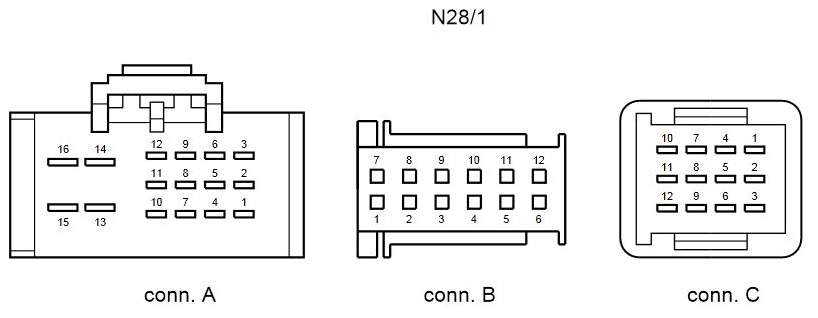

Fig 1: Trailer Recognition Control Unit Connector End View (N28/1)
G11064550Courtesy of MERCEDES-BENZ USA
