Remove/install injection system control unit - AR07.08-P-7008CW
ENGINES 271.9 in MODEL 204
ENGINES 271.9 in MODEL 212 with CODE (924) Bivalent natural gas drive
ENGINES 271 in MODEL 172
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Read out transfer variant coding of ME-SFI [ME] control unit (N3/10) using STAR DIAGNOSIS | ||
| 2 | Switch off ignition | ||
| 3 | Remove air filter housing | AR09.10-P-1150CW | |

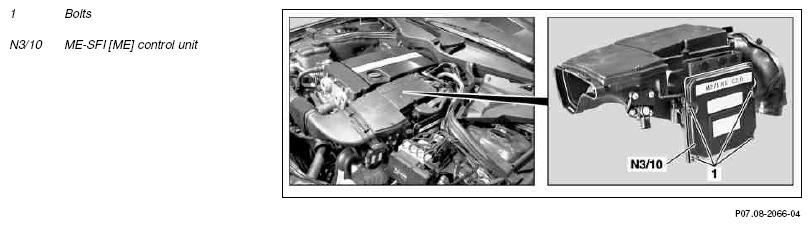

| 4 | Loosen bolts (1) and remove ME-SFI [ME] control unit (N3/10) | ||
| 5 | Install in the reverse order | ||
| 6 | Perform sensor rotor adaptation using STAR DIAGNOSIS |
|
|
| 7 | Release transport protection on ME-SFI [ME] control unit (N3/10) | ||
| 8 | Personalize and activate ME-SFI [ME] control unit (N3/10) | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 9 | Carry out engine test run |
