Remove/Install Tire Pressure Monitoring Control Unit - Ar40.15-D-0101MM

Model 906

except code XM0 (Facelift)

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A

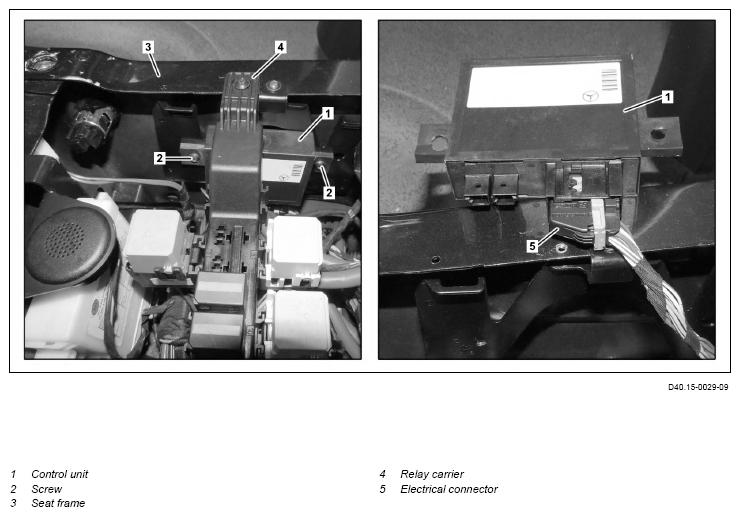

	Remove/install
1	Perform initial startup of control unit (1)	If control unit (1) is replaced. Installation:  Transfer the temporarily stored data to the control unit (1).	AD00.00-D-2000-04SD
2	Remove the transmitter key from electronic ignition lock (EZS) control unit
3	Remove driver seat	Do not detach the seat belt from the driver's seat.	AR91.10-D-1010H
4	Detach cover from top of seat box (3)	Installation:  Position the electrical lines for the driver's seat on the cover.
5	Detach relay carrier (4) and guide to one side
6	Remove screws/bolts (2) and guide out control unit (1) until electrical connection (5) is accessible
7	Disconnect electrical connection (5) and remove control unit (1)
8	Install in the reverse order
