Remove/Install Exhaust Gas RECIRCULATION Temperature Sensor - Ar07.04-D-0013SF
ENGINES 642.898 /993 in MODEL 906
| Remove/install | |||
| Risk of injury to skin and eyes caused by handling hot or glowing objects. | Wear safety gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| 1 | Remove engine trim panel | Only for engine 642.993 | AR01.10-D-2405SF |

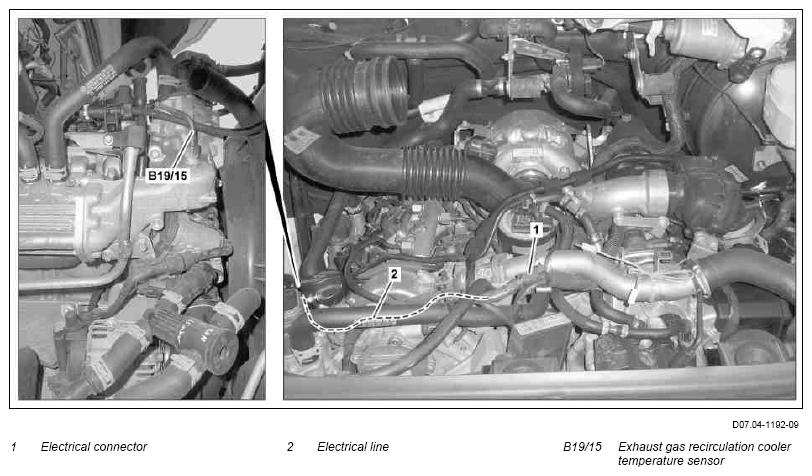

| 2 | Expose electrical line (2) on exhaust gas recirculation cooler temperature sensor (B19/15) on engine wiring harness to electrical connector (1) | ||
| 3 | Disconnect electrical connector (1) | ||
| 4 | Unscrew exhaust gas recirculation cooler temperature sensor (B19/15) | ||
| *BA14.20-N-1005-01H | |||
| Paste | *BR00.45-Z-1005-06A | ||
| 5 | Install in the reverse order | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 6 | Test run engine and check leakage in area of exhaust gas recirculation cooler temperature sensor (B19/15) |
EXHAUST GAS RECIRCULATION TEMPERATURE SENSOR TORQUE SPECIFICATIONS - ENGINE 642.896/898 IN MODEL 906
| Number | Designation | Engine 642.896/898 in 906 | Engine 642.993 in 906 | |
|---|---|---|---|---|
| BA14.20-N-1005-01H | Temperature sensor to exhaust gas recirculation valve | Nm | 45 | 45 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1005-06A | Paste, hot lubrication 1 kg, DB supply specification 6879.20 | A 000 989 76 51 |
