Electrical function schematic for steering column easy entry/exit adjustment - PE46.15-P-2051-97FAA

Code:	Designation:	Position:
1	Multifunction steering wheel button group, signal	3E
1	Multifunction steering wheel button group, signal	6F
2	Easy entry/exit, status	10F
3	Circuit 15, status	12D
4	Door rotary tumbler switch, status	18D
4	Door rotary tumbler switch, status	15D
5	Steering column adjustment motor, actuation	13H
A1	Instrument cluster	7F
A8/1	Transmitter key	13C
A85	Left front door lock	17A
CAN B	Interior CAN	10F
CAN B	Interior CAN	12D
CAN B	Interior CAN	15F
CAN E	Chassis CAN	5F
LIN E1	Steering LIN	2D
M20/1	Steering column in/out adjustment motor	12J
M20/2	Steering column up/down adjustment motor	12K
N32/1	Driver seat control unit	12F
N69/1	Left front door control unit	17E
N73	Electronic ignition switch control unit	12A
N80	Steering column module control unit	2F

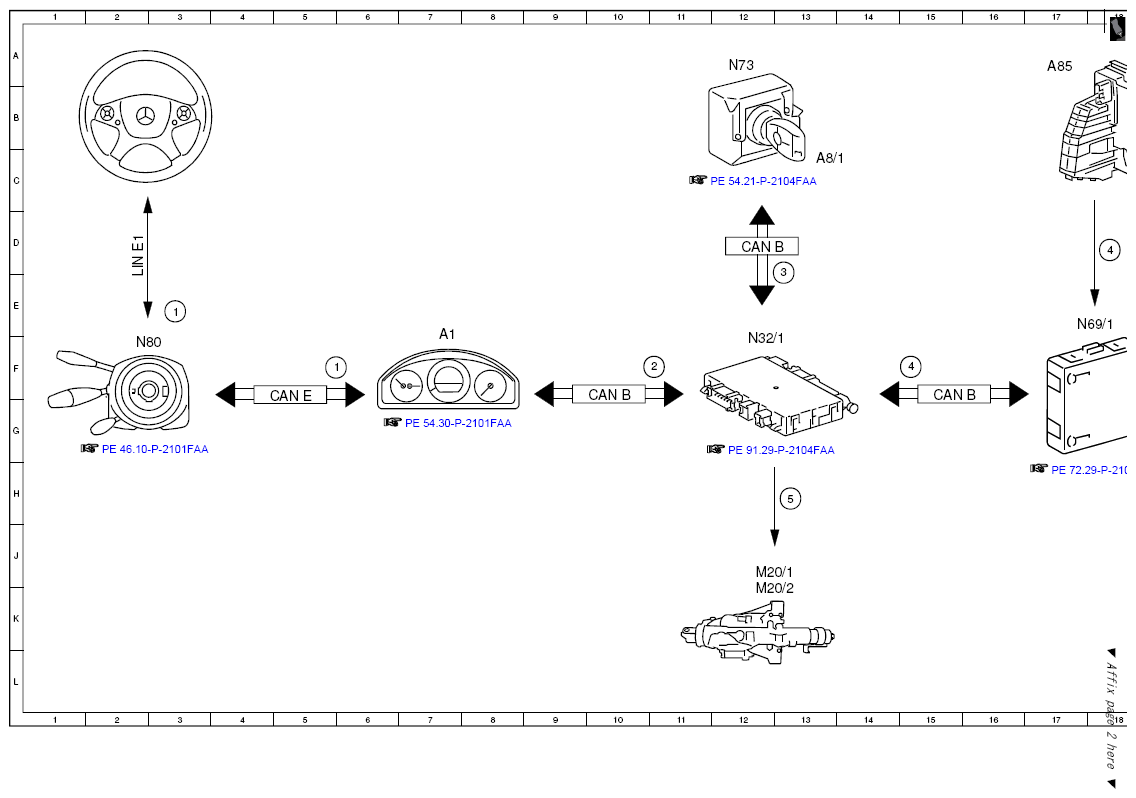

Fig 1: Steering Column Easy Entry/Exit Adjustment Electrical Function Schematic (1 Of 2)

Courtesy of MERCEDES-BENZ USA

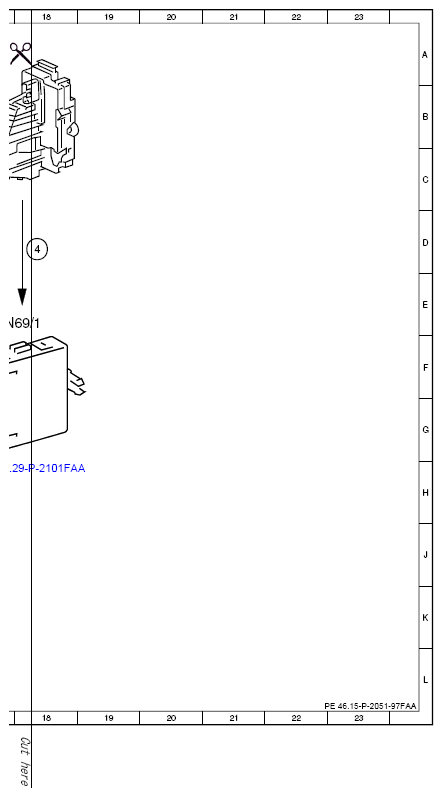

Fig 2: Steering Column Easy Entry/Exit Adjustment Electrical Function Schematic (2 Of 2)

Courtesy of MERCEDES-BENZ USA
