Remove/install driver kneebag - AR91.60-P-0200NKB

MODEL 117, 156, 176, 242, 246 with CODE 294 (Kneebag)

Shown on MODEL 246

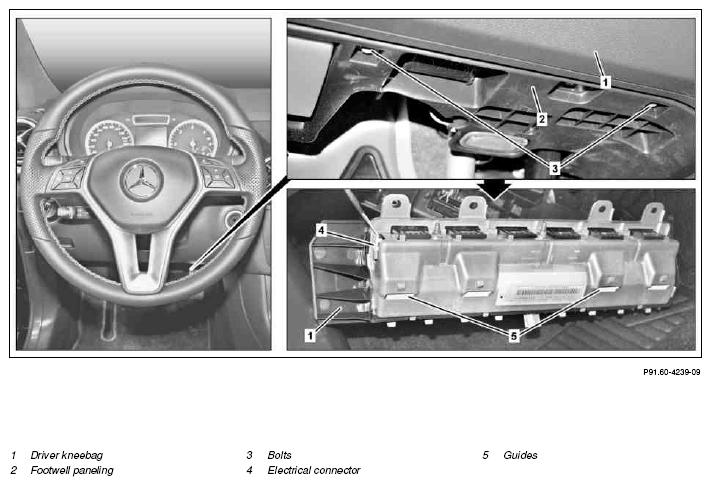

Fig 1: Driver Kneebag Remove/Install Components - Shown On Model 246

Courtesy of MERCEDES-BENZ USA

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical components to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such components.	AS91.00-Z-0008-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Disconnect battery ground line		AR54.10-P-0003NKB
2	Remove screws/bolts (3) and place footwell paneling (2) to one side	Ensure that the driver kneebag (1) does not fall.
		Bolt, knee airbag to bracket	*BA91.60-P-1009-01F
3	Slide driver kneebag (1) toward front in direction of engine compartment out of guides (5) and place in footwell with electrical connector (4) connected	Do not put electrical connector (4) under tension. Otherwise damage may occur to the electrical connection (4).
4	Disconnect electrical connection (4) and remove driver kneebag (1)	If the driver kneebag (1) is replaced, the defective driver kneebag (1) must be disposed of properly.
5	Install in the reverse order
6	Connect diagnostic system; read out fault memory	After replacing driver kneebag (1).
			AD00.00-P-2000-04A
