Remove/install restraint systems control unit - AR91.60-P-0624NKB
MODEL 117
MODEL 156
MODEL 176
MODEL 242
MODEL 246
Shown on MODEL 246
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical components to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such components. | AS91.00-Z-0008-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Disconnect battery ground line | AR54.10-P-0003NKB | |
| 2 | Remove center console cover at front | AR68.20-P-2350NKB | |
| 3 | Remove insulating foam over the electrical connectors (3) | ||

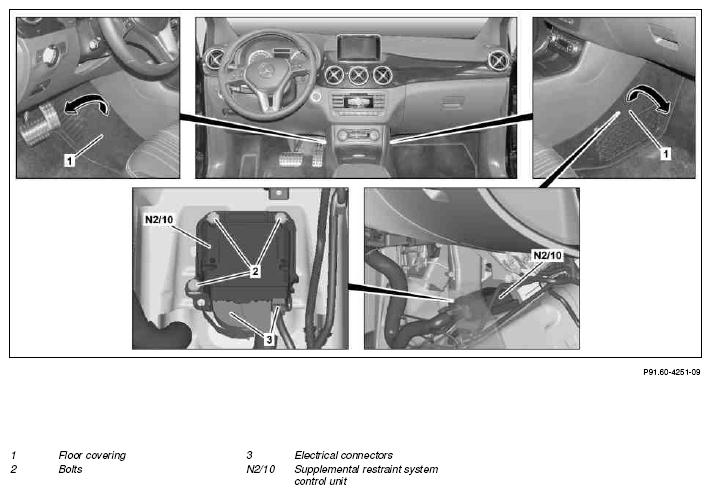

| 4 | Guide out floor coverings (1) on the left and right under the center console (arrows) | Figure | |
| 5 | Remove insulating foam over the supplemental restraint system control unit (N2/10) sideways | ||
| 6 | Disconnect electrical connectors (3) | ||
| 7 | Remove screws/bolts (2) and remove supplemental restraint system control unit (N2/10) | *BA91.60-P-1003-01F | |
| 8 | Install in the reverse order | ||
| 9 | Connect diagnostic system and perform initial startup of supplemental restraint system control unit (N2/10) | When replacing supplemental restraint system control unit (N2/10). | |
| AD00.00-P-2000-04A |
AIRBAG
| Number | Designation | MODEL 117 | MODEL 156 | |
|---|---|---|---|---|
| BA91.60-P-1003-01F | Bolt, control unit to vehicle floor | Nm | 9 | 9 |
AIRBAG
| Number | Designation | MODEL 176, 242, 246 | |
|---|---|---|---|
| BA91.60-P-1003-01F | Bolt, control unit to vehicle floor | Nm | 9 |
