Remove/install sidebag sensor - AR91.60-P-0710NKB

MODEL 117, 156, 176, 242, 246

Vehicle with CODE 299 (PRE-SAFE), shown on MODEL 246, left side of vehicle

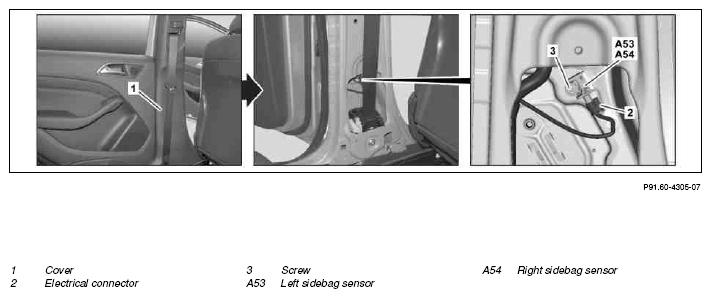

Fig 1: Sidebag Sensor Remove/Install Components - Shown On Model 246 With Code 299

Courtesy of MERCEDES-BENZ USA

Vehicle without CODE 299 (PRE-SAFE), shown on MODEL 246, left side of vehicle

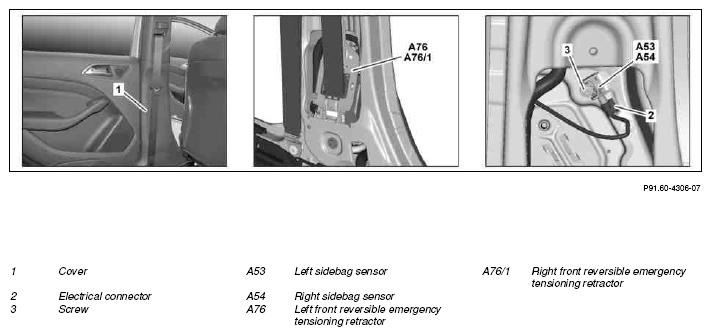

Fig 2: Sidebag Sensor Remove/Install Components - Shown On Model 246 Without Code 299

Courtesy of MERCEDES-BENZ USA

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical components to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such components.	AS91.00-Z-0008-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Move front seat and backrest forward
2	Disconnect battery ground line		AR54.10-P-0003NKB
3	Remove trim (1) from B-pillar		AR68.30-P-4700NKB
4	Detach left front reversible emergency tensioning retractor (A76) or right front reversible emergency tensioning retractor (A76/1) at bottom from B-pillar and place to one side	MODEL 117, 156, 176, 242, 246 with CODE 299 (PRE-SAFE® system)
			AR91.40-P-1010NKB
		Do not detach seat belt at top at B-pillar and at front seat.
5	Disconnect electrical connection (2)
6	Remove screw/bolt (3) and take off left sidebag sensor (A53) and/or right sidebag sensor (A54)	Bolt, sidebag and windowbag sensor to B-pillar	*BA91.60-P-1012-01F
7	Install in the reverse order
