Component Description For Comand Controller Unit - GF82.85-P-3136CE
MODEL 204.0/2 with CODE (527) COMAND APS with single DVD drive (with navigation) except CODE (498) Japan version with CODE (512) COMAND APS with DVD changer as of model year 2009 up to model year 2012/YoM 08,/model refinement package 11
MODEL 204.0 with CODE (528) COMAND with DVD changer as of model year 2010 up to model year 2012/YoM 09,/model refinement package 11
MODEL 204.9 with CODE (527) COMAND APS with single DVD drive (with navigation) except CODE (498) Japan version with CODE (512) COMAND APS with DVD changer with CODE (528) COMAND with DVD changer up to model year 2013/model refinement package 12

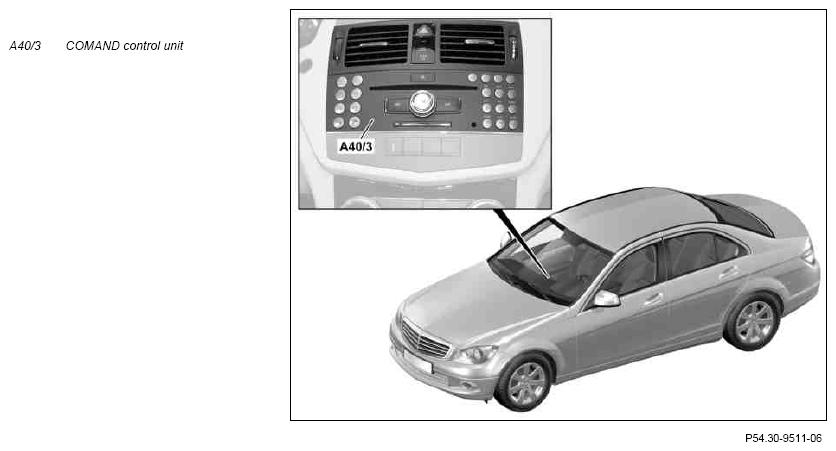

Shown on model 204.0
Location
The COMAND controller unit is located in the center console.
Task
The COMAND controller unit fulfills the following tasks:
- Operating unit for entertainment and communication systems
- Reading in of signals
- Evaluation of input factors
- Actuation of system components
Operating unit for entertainment and communication systems
The COMAND controller unit provides the user with a structured and uniform interface for the following system components:
- Audio (radio, CD, DVD, Personal Computer Memory Card International Association (PCMCIA) card (also MP3), music register (without code (528) COMAND incl. DVD changer), Media interface (with code (518) Media interface), AUX, high definition (HD) radio tuner (with code (494) USA version))
- Voice control system (SBS) and text-to-speech (without code (528) COMAND incl. DVD changer)
- Video (DVD video and AUX)
- Navigation (map navigation with a hard disk as data memory) (without code (528) COMAND with DVD changer)
- Communication (telephone with phone or address book function, short message service (SMS) (with code (386) Mobile phone or code (389) Mobile phone preinstallation with universal interface, USA/Canada), call lists)
Reading in of signals
The input factors are read in via the following connections:
- Direct line
- Media Oriented System Transport (MOST)
- Telematics CAN (CAN A)
- Interior CAN (CAN B)
Direct line
The following signals are read in via a direct line:
- Wake-up for MOST (bi-directional)
- Electrical AUX connector (X39/45) (access in glove compartment, on model 204.9 as of 1.6.2011 in stowage compartment (telephone compartment) below center armrest) (without code (518) Media interface)
- Telephone MUTE (with code (359) TELE AID emergency call system)
- Antenna signals from FM, AM and CL [ZV] antenna amplifier (A2/18) (model 204.0)
- Antenna signals from rear window antenna amplifier 1 (A2/71) (model 204.2/9)
- Antenna signals from rear window FM antenna amplifier (A2/19) (model 204.9 except code (537) Digital radio or code (498) Japan version, model 204.0/2)
- Antenna signals from TV 1 and DAB Band III antenna amplifier (model 204.9 with code (537) Digital radio or code (498) Japan version)
- Antenna signals from Bluetooth antenna (A2/91)
- Antenna signals from multifunction antenna (A28/11)
- Signals from hands-free system microphone (A67b1)
- COMAND fan motor (M4/13) (diagnosis)
Media Oriented System Transport (MOST)
The COMAND controller unit receives control and audio signals from the following control units via MOST:
- Sound system amplifier control unit (N40/3) (with code (810) Sound system)
- Satellite digital audio radio (SDAR) control unit (N87/5) (with code (536) SIRIUS satellite radio, up to 31.5.09 and as of 1.6.10)
- SDAR/high definition tuner control unit (N87/8) (with code (536) SIRIUS satellite radio, as of 1.6.09 up to 31.5.10)
- Digital Audio Broadcasting control unit (N87/3) (with code (537) Digital radio)
- Media interface control unit (N125/1) (with code (518) Media interface)
Telematics CAN
The signals are read in by the COMAND controller unit via telematics CAN. The functions that use these signals are described in the individual function descriptions (see block diagram or function schematic).
Interior CAN
The signals are read in by the COMAND controller unit via interior CAN.
The functions that use these signals are described in the individual function descriptions (see block diagram or function schematic).
Evaluation of input factors
The input factors are evaluated by the microprocessor and the corresponding components are actuated.
Actuation of system components
- Audio output (speaker) (without code (810) Sound system)
- Video output: Low Voltage Differential Signal (LVDS) line
- Switching voltage for mobile phone cradle (A34/15) via Bluetooth module (A34/7) (with code (386) Mobile phone or code (389) Mobile phone preinstallation with universal interface USA/Canada)
- Microphone output to emergency call system control unit (N123/4) (with code (359) TELE AID emergency call system)
- COMAND fan motor
Design
The following components are integrated in the COMAND controller unit:
- Operating panel for controlling the audio, navigation and telematics functions
- Radio tuner
- Single DVD drive (with code (527) COMAND APS with single DVD drive (with navigation))
- DVD changer (with code (512) COMAND APS with DVD changer or code (528) COMAND with DVD changer)
- Card reader for PCMCIA cards
- Bluetooth receiver for basic telephony
- Central computer
- Navigation processor (without code (528) COMAND with DVD changer)
- Hard disk (without code (528) COMAND with DVD changer)
- Audio amplifier (without code (810) Sound system)
Function
The operating requests that are issued via the button panels on the COMAND controller unit are read in by the COMAND controller unit itself and made available to the central computer, where they are processed and forwarded to the relevant system components accordingly via MOST, telematics CAN or interior CAN.
If the "ON" button on the COMAND controller unit is pressed, the COMAND controller unit switches on. The volume for the relevant audio source is regulated by turning the "ON" button. The function keys in the left-hand button panel are used to switch over to the audio source selected by the user.
Using the integrated DVD drive, data from the navigation updates can be taken over from a DVD (without code (528) COMAND incl. DVD changer) or an audio or video CD or DVD can be played.
The navigation processor integrated in the COMAND controller unit (without code (528) COMAND with DVD changer) calculates the location using the incoming antenna signals and, after entering the destination, the route of the vehicle.
A turn rate sensor is integrated into the navigation processor. This determines the vehicle's change in direction. A calibration is not required.
The voice commands via VCS [SBS] are processed and evaluated in the COMAND controller unit. The voice outputs for the dialogue with the user are generated in the COMAND controller unit.
Variants
The COMAND controller unit is available in the following variants:
- COMAND controller unit, with code (527) COMAND APS with single DVD drive (with navigation)
- COMAND controller unit, with code (512) COMAND APS with DVD changer
- COMAND controller unit, with code (528) COMAND with DVD changer
Diagnosis
The COMAND controller unit is the diagnosis gateway for all MOST users. The diagnostic communication takes place between the COMAND controller unit and the front SAM control unit with fuse and relay module (N10/1) via the interior CAN. The diagnostic communication between the front SAM control unit and the diagnostic connector (X11/4) connected to the IS tester is performed via diagnostic CAN (CAN D).
| Technical data Designation |
Unit | Values | Tolerance range | Remarks |
|---|---|---|---|---|
| COMAND controller unit | ||||
| Power supply | VV | 12 | Operating voltage (U B ) | |
| Voltage limits | VV | 9 | Minimum (UBmin ) | |
| VV | 16 | Maximum (UBmax ) | ||
| Power consumption | A | 15 | Rated current consumption (IBmax) | |
| A | 3.5 | Rated current consumption (IBTyp) | ||
| A | approx. 4.5 | Speaker (IAction ) | ||
| A | approx. 0.1 | Cradle ON/OFF (IAction ) | ||
| mA | 0.3 | Quiescent current (I 0 ) | ||
| Reverse polarity protection | YES | |||
| Additional specific parameters | None | |||
| Special features | The COMAND controller unit is protected with a 20 A fuse in the combination plug, MQS 40+4 pin (electrical) at the rear panel. | |||
| Flash capability/coding capability | YES/n/A. |
| Cockpit Management and Data System (COMAND) control unit wiring diagram | A40/3 | PE82.85-P-2101-97FAA |
