Remove/install injection system control unit - AR07.08-P-7008RKA

ENGINE 276 in MODEL 231

Shown on engine 276.9

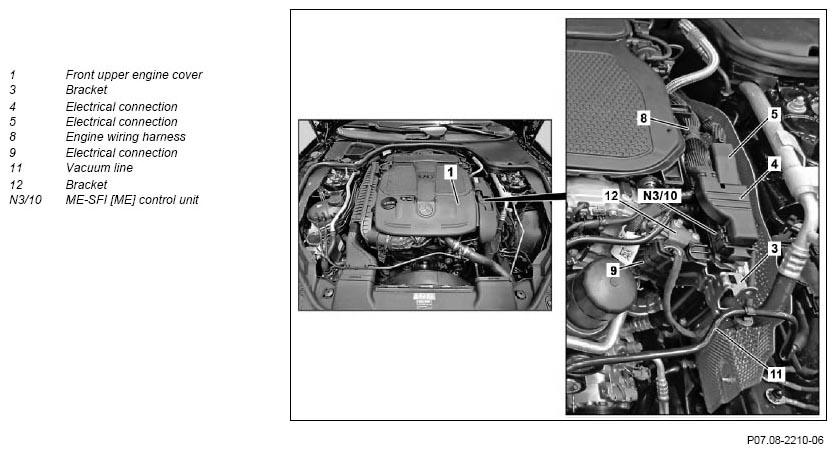

Fig 1: Injection System Control Unit Remove/Install Components - Shown On Engine 276.9 (1 Of 2)

Courtesy of MERCEDES-BENZ USA

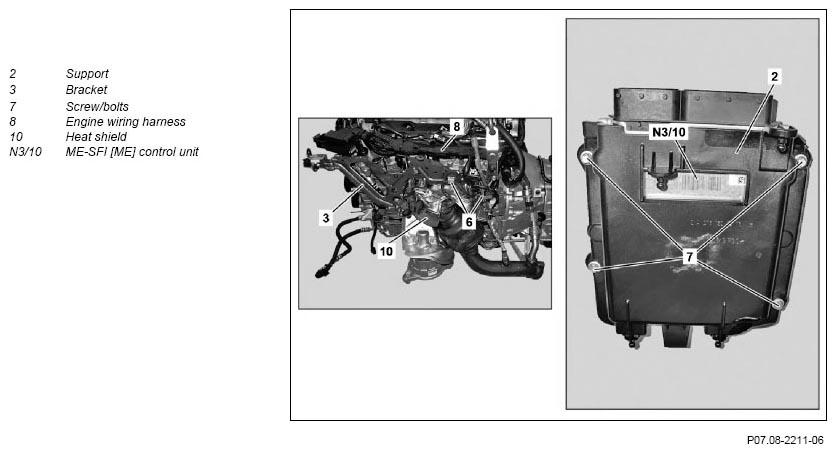

Fig 2: Injection System Control Unit Remove/Install Components - Shown On Engine 276.9 (2 Of 2)

Courtesy of MERCEDES-BENZ USA

Shown on engine 276.8

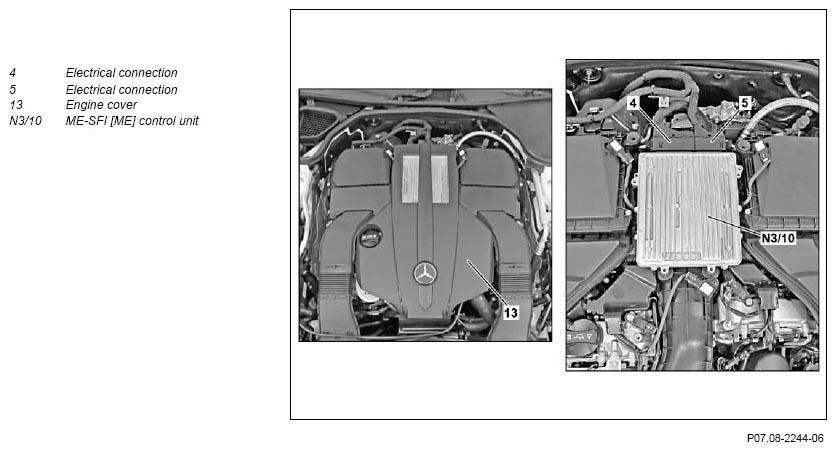

Fig 3: Injection System Control Unit Remove/Install Components - Shown On Engine 276.8

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Read out variant coding of ME-SFI [ME] control unit (N3/10) using Star Diagnosis
	Connect STAR DIAGNOSIS and read out fault memory	When installing a new ME-SFI [ME] control unit (N3/10). Transfer stored data to new ME-SFI [ME] control unit (N3/10).	AD00.00-P-2000-04A
2	Switch off ignition and remove transmitter key
3.1	Remove front upper engine cover (1)	Engine 276.9 in model 231
3.2	Remove upper engine cover (13)	Engine 276.8 in model 231
4	Unclip ME-SFI [ME] control unit (N3/10) upwards	Engine 276.8 in model 231
5	Disconnect Electrical connections (4, 5) on ME-SFI control unit (N3/10)
6.1	Pull out ME-SFI [ME] control unit (N3/10) and mount (2) from bracket (3)	Engine 276.9 in model 231
6.2	Remove ME-SFI [ME] control unit (N3/10) upwards	Engine 276.8 in model 231
7	Remove screw/bolts (7) and remove ME-SFI [ME] control unit (N3/10) from the mount (2)	Engine 276.9 in model 231 When replacing the ME-SFI [ME] control unit (N3/10). Bolt, control unit to retaining plate	*BA07.08-P-1003-01A
8	Remove engine wiring harness (8) from bracket (3)	Engine 276.9 in model 231 To remove bracket (3) of the ME-SFI [ME] control unit (N3/10)
9	Remove electrical connection (9) on bracket (3) and place to one side	Engine 276.9 in model 231 To remove bracket (3) of the ME-SFI [ME] control unit (N3/10)
10	Remove bracket (12) for electrical connection (9) from bracket (3)	Engine 276.9 in model 231 To remove bracket (3) of the ME-SFI [ME] control unit (N3/10) Bolt, connector housing holder to control unit holder	*BA07.08-P-1006-01A
11	Unclip connector housing and electrical lines from bracket (3) and place to one side	Engine 276.9 in model 231 To remove bracket (3) of the ME-SFI [ME] control unit (N3/10)
12	Remove bracket (3) with heat shield (10)	Engine 276.9 in model 231 To remove bracket (3) of the ME-SFI [ME] control unit (N3/10) Bolt, control unit holder to cylinder head/cylinder head cover	*BA07.08-P-1004-01A
13	Remove bracket (3) with heat shield (10) upwards	Engine 276.9 in model 231 To remove bracket (3) of the ME-SFI [ME] control unit (N3/10)
14	Remove bracket (3) with heat shield (10)	Engine 276.9 in model 231 To remove from bracket (3) of the ME-SFI [ME] control unit (N3/10) Bolt, shield over left exhaust manifold to control unit holder	*BA07.08-P-1005-01A
15	Install in the reverse order
16	Carry out sensor adaptation with STAR DIAGNOSIS	When installing a new ME-SFI [ME] control unit (N3/10).
17	Unfasten transport protection from ME-SFI [ME] control unit (N3/10)	When installing a new ME-SFI [ME] control unit (N3/10).
18	Personalize and activate ME-SFI [ME] control unit (N3/10)	When installing a new ME-SFI [ME] control unit (N3/10).
	Check
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
19	Carry out an engine test run
