Remove/install injection system control unit - AR07.08-P-7008RKC
ENGINE 279 in MODEL 231
| Remove/install | |||
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Read out variant coding of the ME-SFI [ME] control unit (N3/10) with diagnostic system | When replacing ME-SFI [ME] control unit (N3/10) | |
| AD00.00-P-2000-04A | |||
| 2 | Switch off ignition | ||

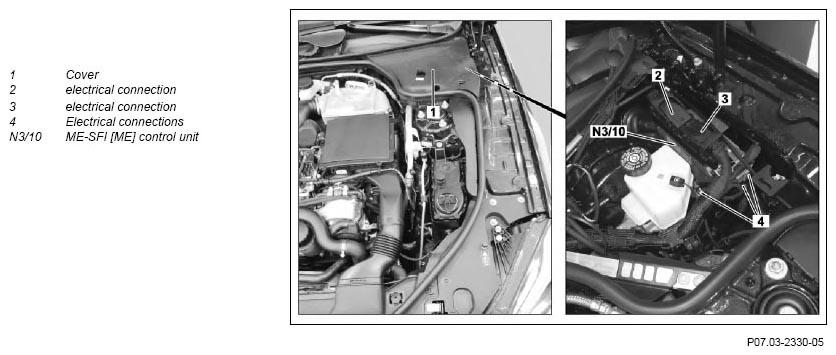

| 3 | Remove cover (1) | ||
| 4 | Disconnect electrical connections (2, 3, 4) on ME-SFI control unit (N3/10) | ||
| 5 | Detach engine wiring harness (5) from bracket (6) | ||

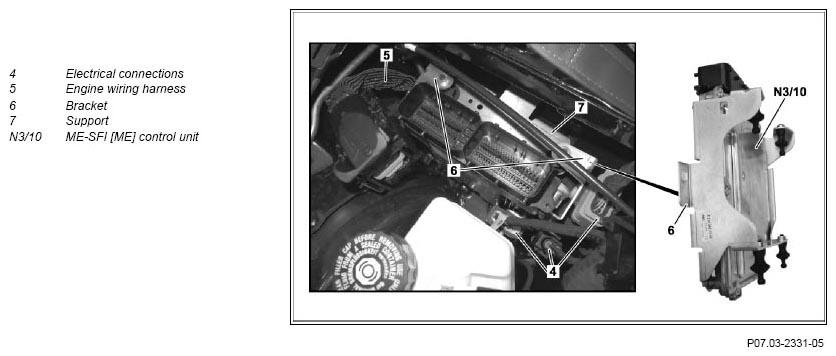

| 6 | Pull out ME-SFI [ME] control unit (N3/10) and mount (7) from bracket (6) | ||

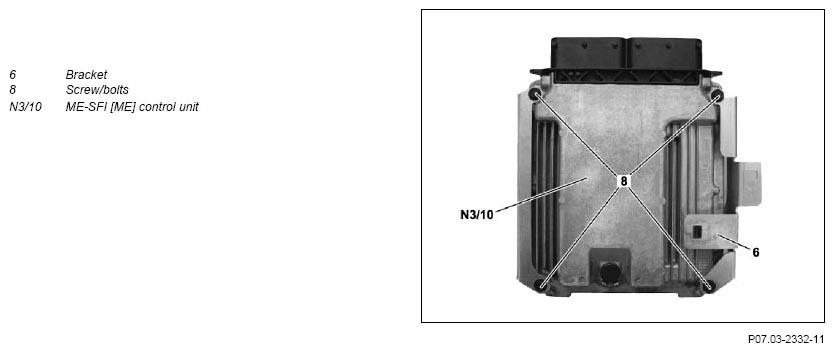

| 7 | Remove screw/bolts (8) and pull ME-SFI [ME] control unit (N310) out of bracket (6) | When replacing ME-SFI [ME] control unit (N3/10) | |
| 8 | Install in the reverse order | ||
| 9 | Perform sensor adaptation with diagnostic system | When replacing ME-SFI [ME] control unit (N3/10) |
|
| 10 | Release transport protection on ME-SFI [ME] control unit (N3/10) | When replacing ME-SFI [ME] control unit (N3/10) | |
| 11 | Personalize and activate ME-SFI [ME] control unit (N3/10) | When replacing ME-SFI [ME] control unit (N3/10) | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 12 | Carry out an engine test run |
