Remove/install Distronic sensor (DTR) - AR30.30-P-1010NKB

MODEL 117, 156, 176, 242, 246 with CODE 239 (DISTRONIC PLUS)

Shown on MODEL 246

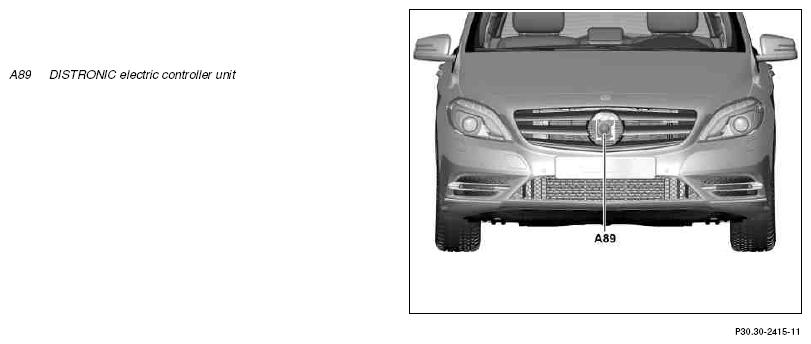

Fig 1: Identifying Distronic Sensor Remove/Install Component - Shown On Model 246

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition and remove transmitter key from electronic ignition lock control unit
2	Remove Mercedes star		AR88.40-P-4050NKB
3	Unlock and detach electrical connector on DISTRONIC electric controller unit (A89)
4	Pull DISTRONIC electric controller unit (A89) out of bracket	The DISTRONIC electric controller unit (A89) is engaged with three ball studs in the bracket.
5	Install in the reverse order
6	Perform adjustment of the DISTRONIC electric controller unit (A89) using Star Diagnosis
			AD00.00-P-2000-04A
	000 588 17 21 00 Adjusting device		WS30.00-P-0006B
		Adjustment of the DISTRONIC electric controller unit (A89) is necessary after: replace detach/attach mechanical damage accident repair in front area alteration of the camber, track width, caster or of the vehicle level at the front or rear axle
