Remove/Install A Pressure Sensor - AR07.04-P-0050MMV
Engine 276.8 in model 205
Engine 276.8 in model 253
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes on battery | AH54.10-P-0001-01A | ||
| General information on work on gasoline direct injection system | AH07.00-P-2000-01A | ||
| Remove | |||
| 1 | Detach ground line from battery | AR54.10-P-0003LW | |
| 2 | Remove left-hand air filter housing | AR09.10-P-1150MMV | |
| 3 | Remove soundproofing over rail (4) | ||
| 4 | Release and disconnect electrical connection (1) | ||
| Clean | |||

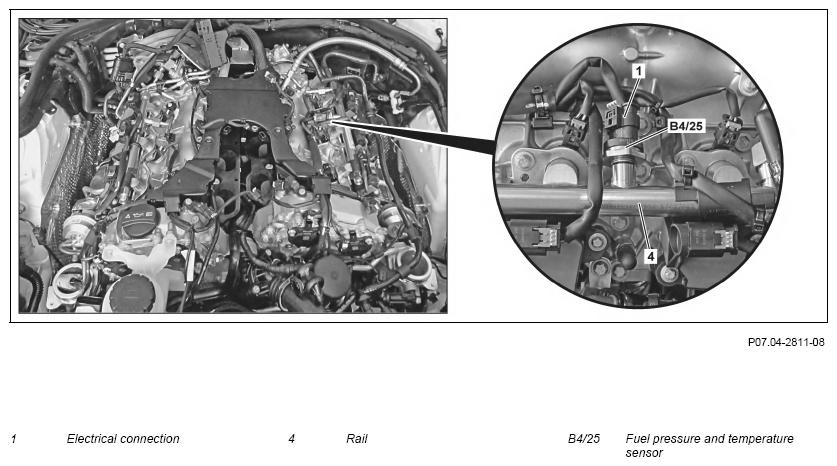

| 5 | Clean rail (4) in the area of the fuel pressure and temperature sensor (B4/25) | Assembly cleaner | *BR00.45-Z-1028-04A |
| 6 | Remove fuel pressure and temperature sensor (B4/25) from rail (4) | ||
| Install | |||
| 7 | Mount new fuel pressure and temperature sensor (B4/25) on rail (4) | *BA07.52-P-1002-01G | |
| 8 | Connect and lock electrical connection (1) | ||
| 9 | Install soundproofing over rail (4) | ||
| 10 | Install left-hand air filter housing | AR09.10-P-1150MMV | |
| 11 | Mount ground line on battery | AR54.10-P-0003LW | |
| Check | |||
| 12 |
Read out fault memory using the diagnostic system and delete | AD00.00-P-2000-04B | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear buttoned-up and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 13 | Carry out an engine test run and check fuel system for leaktightness |
FUEL DISTRIBUTOR
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA07.52-P-1002-01G | Pressure and temperature sensor to fuel distributor | Nm | 33 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | Adolf Wurth GmbH & Co. KG |
