Remove/install injection system control unit - AR07.08-P-7008CDA
ENGINES 651 in MODELS 166, 172, 204, 207, 212, 218, 221
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Connect Star Diagnosis and perform commissioning of the CDI control unit (N3/9) | AD00.00-P-2000-04A | |
| 2 | Disconnect ground line at the on-board electrical system battery | Model 166 |
AR54.10-P-0003GZ |
| Model 172 | AR54.10-P-0003W | ||
| Model 204 | AR54.10-P-0003CW | ||
| Model 207, 212, 218 | AR54.10-P-0003EW | ||
| Model 221.0/1 | AR54.10-P-0003SX | ||
| 3 | Remove cylinder head cover trim | ||

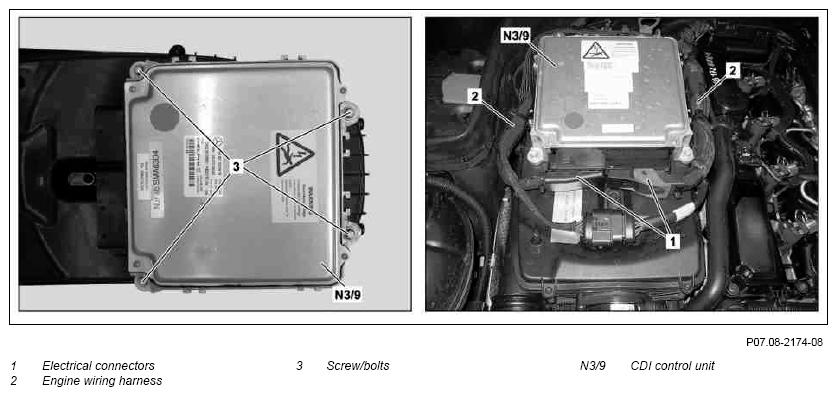

| 4 | Unlock electrical connectors (1) for engine wiring harness (2) and detach from CDI control unit (N3/9) | ||
| 5 | Unhook engine wiring harness (2) on CDI control unit (N3/9) | ||
| 6 | Remove screws/bolts (3) | ||
| 7 | Remove CDI control unit (N3/9) | ||
| 8 | Install in the reverse order | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 9 | Carry out engine test run |
