Remove/install injection system control unit - AR07.08-P-7008EL
ENGINE 276.9 in MODEL 212, 218
| Remove/install | |||
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Read out transfer variant coding of ME-SFI [ME] control unit (N3/10) using Star Diagnosis | When replacing ME-SFI [ME] control unit (N3/10) | |
| AD00.00-P-2000-04A | |||
| 2 | Switch off ignition | ||

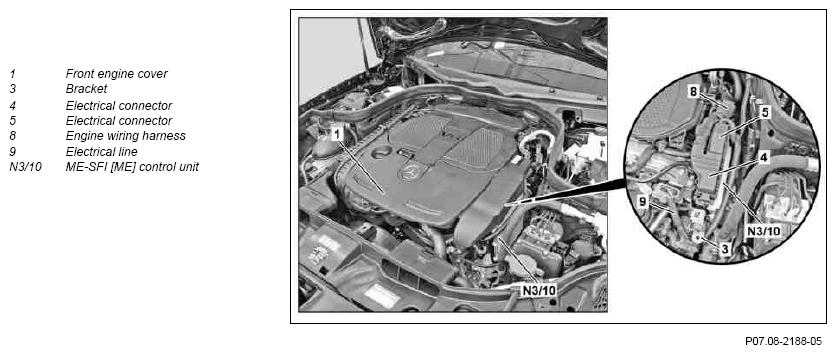

| 3 | Remove front engine cover (1) | ||
| 4 | Disconnect Electrical connections (4, 5) on ME-SFI control unit (N3/10) | ||

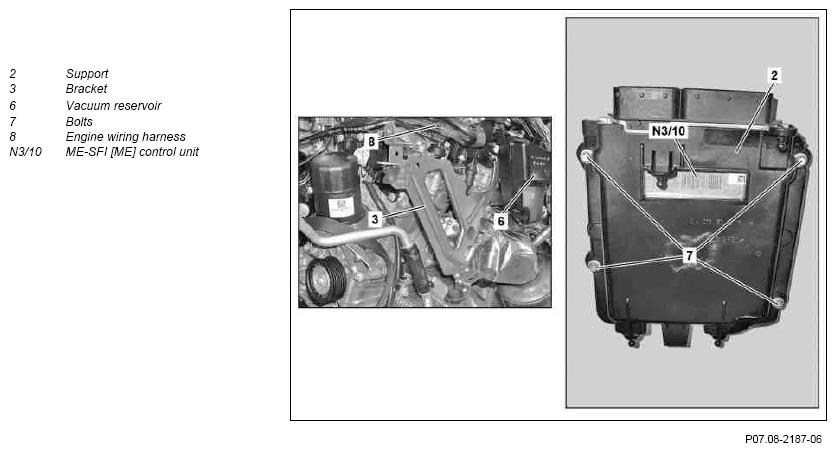

| 5 | Pull out ME-SFI [ME] control unit (N3/10) and mount (2) from bracket (3) | ||
| 6 | Remove screw/bolts (7) and detach ME-SFI [ME] control unit (N3/10) from the mount (2) | When replacing ME-SFI [ME] control unit (N3/10) | |
| *BA07.08-P-1003-01A | |||
| Only perform operation steps 7 to 12 for removal of the ME-SFI [ME] control unit (N3/10) bracket (3) | |||
| 7 | Detach engine wiring harness (8) on bracket (3) | ||
| 8 | Unclip retaining clip for electrical line (9) on bracket (3) | ||
| 9 | Detach connector housing bracket on bracket (3) | *BA07.08-P-1006-01A | |
| 10 | Detach vacuum reservoir (6) from bracket (3) | *BA43.05-P-1002-01K | |
| 11 | Remove screw/bolts for bracket (3) | *BA07.08-P-1004-01A | |
| *BA07.08-P-1005-01A | |||
| 12 | Remove bracket (3) upwards | ||
| 13 | Install in the reverse order | ||
| 14 | Carry out sensor adaptation with STAR DIAGNOSIS When replacing ME-SFI [ME] control unit (N3/10) | ||
|
AD00.00-P-2000-04A | ||
| 15 | Release transport protection on ME-SFI [ME] control unit (N3/10) | When replacing ME-SFI [ME] control unit (N3/10) | |
| 16 | Personalize and activate ME-SFI [ME] control unit (N3/10) | When replacing ME-SFI [ME] control unit (N3/10) | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 17 | Carry out an engine test run |
CONTROL UNIT
| Number | Designation | ENGINE 276 | |
|---|---|---|---|
| BA07.08-P-1003-01A | Bolt, control unit to retaining plate | Nm | 5 |
CONTROL UNIT
| Number | Designation | ENGINE 276 | |
|---|---|---|---|
| BA07.08-P-1004-01A | Bolt, control unit holder to cylinder head/cylinder head cover | Nm | 9 |
CONTROL UNIT
| Number | Designation | ENGINE 276 | |
|---|---|---|---|
| BA07.08-P-1005-01A | Bolt, shield over left exhaust manifold to control unit holder | Nm | 9 |
CONTROL UNIT
| Number | Designation | ENGINE 276 | |
|---|---|---|---|
| BA07.08-P-1006-01A | Bolt, connector housing holder to control unit holder | Nm | 9 |
VACUUM PUMP
| Number | Designation | MODEL 166, 172, 204, 205, 207, 212, 218, 221, 231, 251 with ENGINE 276, MODEL 222 with ENGINE 276 except CODE ME05 | |
|---|---|---|---|
| BA43.05-P-1002-01K | Bolt, vacuum reservoir to bracket | Nm | 9 |
