Remove/install injection system control unit - AR07.08-P-7008ELS
ENGINE 276.8 in MODEL 207, 212, 218
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Read out variant coding of the ME-SFI [ME] control unit (N3/10) with diagnostic system | When replacing ME-SFI [ME] control unit (N3/10) | |
| AD00.00-P-2000-04A | |||
| 2 | Switch off ignition and remove transmitter key | ||
| 3 | Remove engine cover | ||

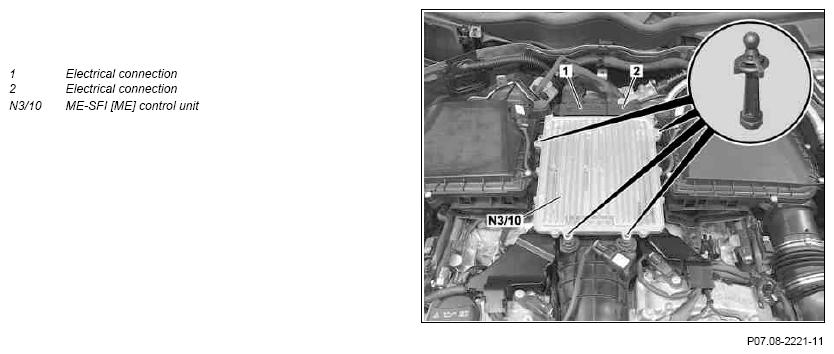

| 4 | Disconnect Electrical connections (1, 2) on ME-SFI [ME] control unit (N3/10) | ||
| 5 | Unclip ME-SFI [ME] control unit (N3/10) upwards and take it off | ||
| 6 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Carry out an engine test run |
