Remove/install injection system control unit - AR07.08-P-7008EMG
ENGINES 156 in MODEL 212
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Read out variant coding using STAR DIAGNOSIS | Only when replacing ME-SFI control unit (N3/10) | |
| 2 | Raise vehicle with vehicle lift | ||
| 3 | Detach right front wheel | ||
| Remove/install wheels | AP40.10-P-4050EW | ||
| 4 | Remove inner fender in right front fender | ||

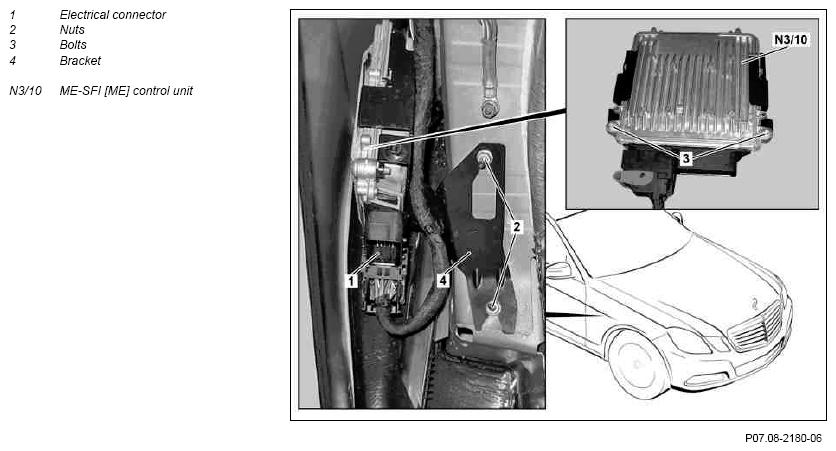

| 5 | Disconnect electrical connectors (1) from ME-SFI control unit (N3/10) | ||
| 6 | Loosen nuts (2) and remove bracket (4) together with ME-SFI control unit (N3/10) | ||
| 7 | Unscrew bolts (3) and pull ME-SFI control unit (N3/10) out of bracket (4) | ||
| 8 | Install in the reverse order | ||
| 9 | Read in variant coding using STAR DIAGNOSIS | Only when replacing ME-SFI control unit (N3/10) |
|
| 10 | Start up CDI control unit (N3/9) using STAR DIAGNOSIS | Only when replacing ME-SFI control unit (N3/10) |
|
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 11 | Carry out engine test run |
