Remove/install injection system control unit - AR07.08-P-7008EW
ENGINE 272, 273 (except 272.983) in MODEL 212
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Read out transfer variant coding of ME-SFI [ME] control unit (N3/10) using STAR DIAGNOSIS | When replacing ME-SFI [ME] control unit (N3/10). |
|
| 2 | Switch off ignition | ||
| 3 | Remove air filter housing | AR09.10-P-1150EWS | |

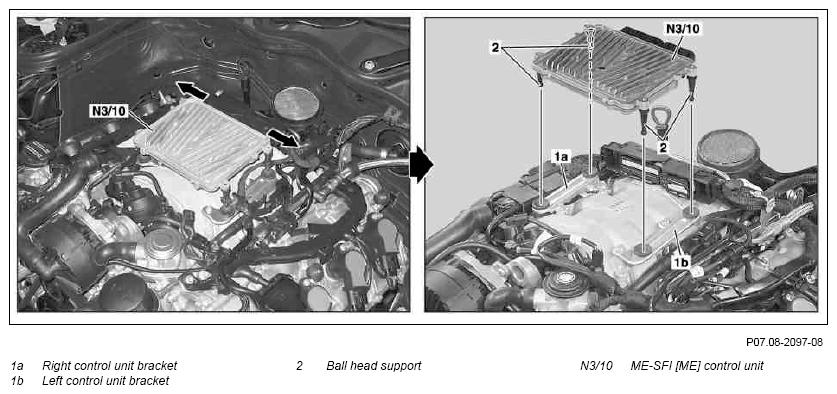

| 4 | Move shift interlocks for electrical connectors on the ME-SFI [ME] control unit (N3/10) in the direction of the arrows and disconnect electrical connectors from the ME-SFI [ME] control unit (N3/10) | ||
| 5 | Pull ME-SFI [ME] control unit (N3/10) up and out of control unit brackets (1a, 1b) | ||
| 6 | Detach ball-type support braces (2) from ME-SFI [ME] control unit (N3/10) | When replacing the ME-SFI [ME] control unit (N3/10) | |
| *BA07.08-P-1001-01A | |||
| 7 | Remove control unit brackets (1a, 1b) from resonance intake manifold as needed | *BA07.08-P-1002-01A | |
| 8 | Install in the reverse order | ||
| 9 | Perform sensor rotor adaptation using STAR DIAGNOSIS | When replacing ME-SFI [ME] control unit (N3/10).
|
|
| 10 | Release transport protection on ME-SFI [ME] control unit (N3/10) | When replacing ME-SFI [ME] control unit (N3/10). | |
| 11 | Personalize and activate ME-SFI [ME] control unit (N3/10) | When replacing ME-SFI [ME] control unit (N3/10). | |
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 12 | Carry out engine test run | When replacing ME-SFI [ME] control unit (N3/10). |
CONTROL UNIT
| Number | Designation | ENGINE 272 | ENGINE 273 | |
|---|---|---|---|---|
| BA07.08-P-1001-01A | Ball head support to control unit | Nm | 4 | 4 |
| BA07.08-P-1002-01A | Bolt, control unit bracket to resonance intake manifold | Nm | 8 | 8 |
