Remove/install injection system control unit - AR07.08-P-7008LFB
ENGINE 157, 278 in MODEL 217
ENGINE 157, 278 in MODEL 222
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Read out variant coding of the ME-SFI [ME] control unit (N3/10) | When replacing ME-SFI [ME] control unit (N3/10) | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04B | ||
| 2 | Switch off ignition and remove transmitter key | ||

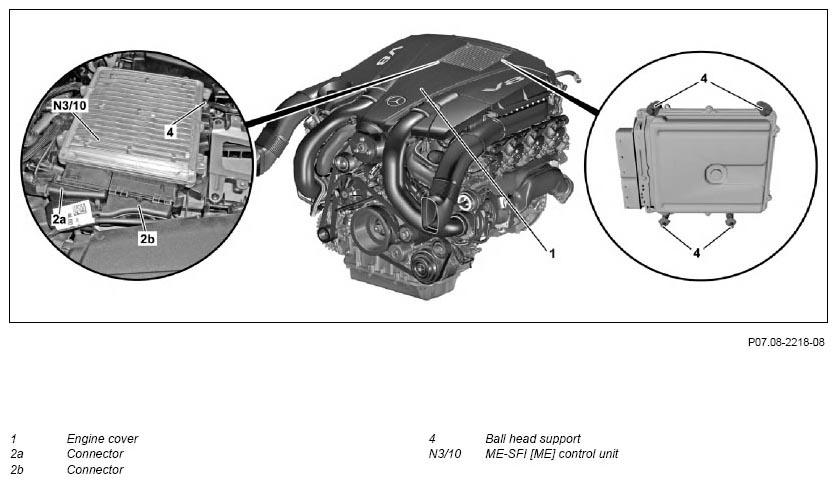

| 3 | Remove engine cover (1) | ||
| 4 | Remove ME-SFI [ME] control unit (N3/10) with ball bearing support (4) upwards out of the mount on intake manifold | ||
| 5 | Detach connectors (2a, 2b) and detach from ME-SFI [ME] control unit (N3/10) | ||
| 6 | Detach ball-type support braces (4) from ME-SFI [ME] control unit (N310) | When replacing ME-SFI [ME] control unit (N3/10) |
*BA07.08-P-1001-01A |
| 7 | Install in the reverse order | ||
| 8 | Perform sensor rotor adaptation with diagnostic system | When replacing ME-SFI [ME] control unit (N3/10) | |
|
|||
| 9 | Release transport protection on ME-SFI [ME] control unit (N3/10) | When replacing ME-SFI [ME] control unit (N3/10) | |
| 10 | Personalize and activate ME-SFI [ME] control unit (N3/10) | When replacing ME-SFI [ME] control unit (N3/10) | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 11 | Carry out an engine test run |
CONTROL UNIT
| Number | Designation | ENGINE 157, 278 | |
|---|---|---|---|
| BA07.08-P-1001-01A | Ball head support to control unit | Nm | 4 |
