Remove/install steering coupling - AR46.10-P-8000LW

MODEL 205

MODEL 217, 222 as of 4/30/14

MODEL 253

Shown on MODEL 205.0 except CODE 700 (China local content technology)

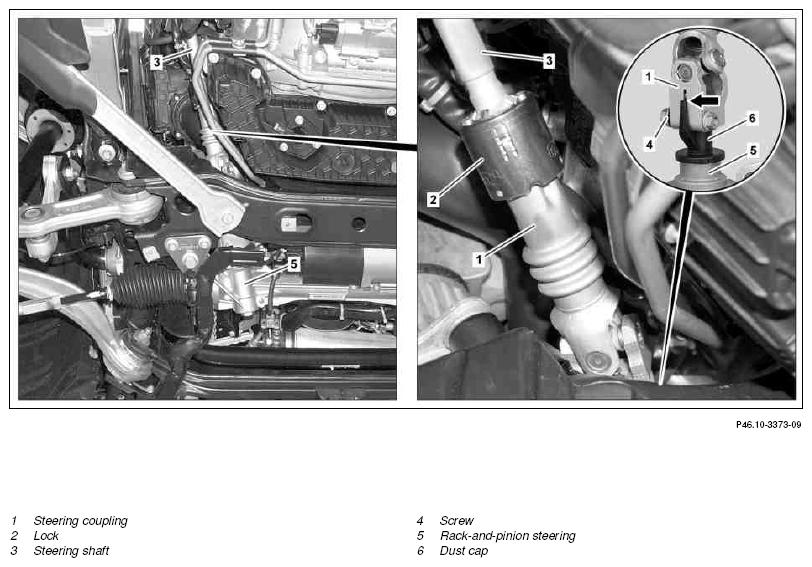

Fig 1: Steering Coupling Remove/Install Components - Shown On Model 205.0 Except Code 700

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove/install
1	Deactivate easy entry and exit feature for steering wheel in instrument cluster	Model 205, 253 with code 275 (Driver's seat, electrically adjustable with memory function) Model 217, 222
2	Perform disable for high-voltage on-board electrical system	Model 205.012/047/147/212/247	AR54.10-P-1150LW
3	Turn rack-and-pinion steering (5) to center position (front wheels in straight-ahead position) and fix steering wheel in place using holding device	Do not turn the steering wheel when the steering coupling (1) has been detached. Otherwise the clock spring contact will be destroyed.
		Retainer device	Figure
4	Remove center and rear sections of lower engine compartment paneling	Model 217, 222	AR61.20-P-1105LF
		Model 205, 253	AR61.20-P-1105LW
5.1	Disconnect steering coupling (1) on lock (2) from steering shaft (3)	Model 205.0/2, 253 except code 700 (Technology Local Content China) Model 217, 222 as of 4/30/14
		Disconnect/connect steering coupling (1)	AR46.10-P-8000-01LW
		Turn rack-and-pinion steering (5) to center position Model 217, 222	AR46.20-P-0600-01RK
		Turn rack-and-pinion steering (5) to center position Model 205.0/2, 253 except code 700 (Technology Local Content China) Before connecting the steering coupling (1) it must be ensured that the rack-and-pinion steering (5) is in the center position.	AR46.20-P-0600-01LW
		Engine mount wrench set	Fig 3
5.2	Detach steering coupling (1) on universal joint from steering shaft (3)	Model 205.0/1/2, 253 with code 700 (Technology Local Content China)
		Disconnect/connect steering coupling (1)	AR46.10-P-8000-01LWA
		Turn rack-and-pinion steering (5) to center position Before connecting the steering coupling (1) it must be ensured that the rack-and-pinion steering (5) is in the center position.	AR46.20-P-0600-01LW
		Self-locking bolt, steering coupling to lower steering shaft	*BA46.10-P-1003-01N
6	Remove bolt (4) from steering coupling (1)	Model 217, 222 Bolt, steering coupling to rack-and-pinion steering	*BA46.10-P-1002-01M
		Model 205 except code 700 (Technology Local Content China) Model 205 with code 700 (Technology Local Content China) Model 253 Self-locking bolt, steering coupling to rack-and-pinion steering	*BA46.10-P-1002-01N
7	Remove steering coupling (1) from rack-and-pinion steering (5)	Pay attention to installation position. The guide lug on the dust cap (6) must be seated unstressed in the groove of the steering coupling (1) (arrow).
8	Install in the reverse order

Fig 2: Identifying Retainer Device (129 589 01 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Engine Mount Wrench Set (001 589 01 16 00)

Courtesy of MERCEDES-BENZ USA
