Component Description For Fully Integrated Transmission Control Unit - GF27.60-P-5165AHE
TRANSMISSION 722.9 (except 722.930) in MODEL 205

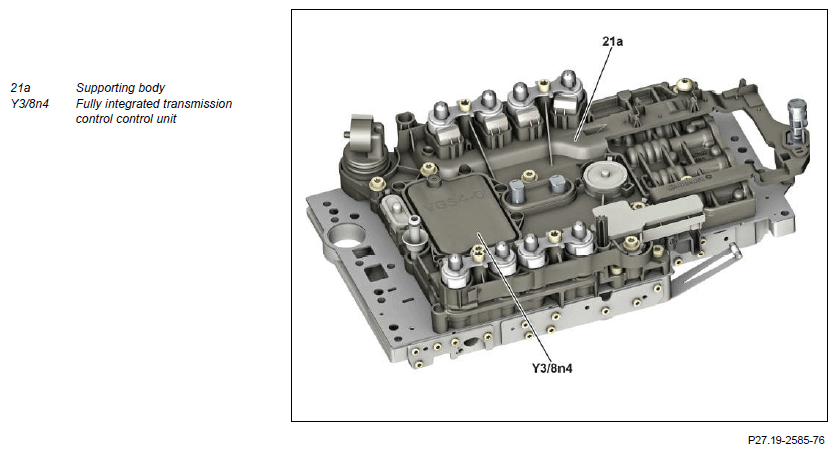

View of fully integrated transmission control controller unit (Y3/8) from above
Location
The fully integrated transmission control unit is integrated in the fully integrated transmission control controller unit which is located in the oil pan at the bottom of the transmission.
Task
General
The fully integrated transmission control unit with its own independent diagnostic system determines the current operating condition of the vehicle and actuates all the gear change sequences, taking shift comfort and the driving situation into consideration, as well as the engagement of gear ranges "P", "R", "N", "D" and the operating time or rotational speed of the electrical auxiliary oil pump.
Flash programming
The transmission control system in the control unit for the fully integrated transmission control (VGS) is flashable i.e. the complete software in the control unit can be changed (replaced). The software required to program the control units is stored on the Xentry diagnostics update DVD.
CAN bus
The fully integrated transmission control unit is connected via the drive train CAN (CAN C1) to the vehicle's CAN network and exchanges data with other control units.
Input and output signals
The following input signals are evaluated by the fully integrated transmission control unit and the appropriate output signals are generated:
Reading in of sensors and signals
These input factors are read in via the following connections:
- Direct line
- Drive train CAN (CAN C1)
Direct line
- Circuit 31
- Circuit 87 (switched circuit 15)
- Turbine wheel RPM sensor (Y3/8n1)
- RPM sensor for internal input speed (Y3/8n2)
- Output shaft RPM sensor (Y3/8n3)
- Selection range sensor (Y3/8s1)
- Transmission oil temperature sensor (Y3/8s2) (integrated into fully integrated transmission control unit)
Drive train CAN
Signals from
- Intelligent servo module for DIRECT SELECT (A80)
- CDI control unit (N3/9) or ME-SFI [ME] control unit (N3/10)
- Automatic transmission fluid auxiliary oil pump control unit (N89)
- Powertrain control unit (N127)
Evaluation of input factors
The read-in input factors are evaluated by the fully integrated transmission control unit.
Actuation of components
The actuation of the components takes place via the following connections:
Direct line
- Working pressure control solenoid valve (Y3/8y1)
- Clutch control solenoid valve K1 (Y3/8y2)
- Clutch control solenoid valve K2 (Y3/8y3)
- Clutch control solenoid valve K3 (Y3/8y4)
- Multidisk brake control solenoid valve B1 (Y3/8y5)
- Multidisk brake control solenoid valve B2 (Y3/8y6)
- Multidisk brake control solenoid valve B3 (Y3/8y7)
- Torque converter lockup clutch control solenoid valve (Y3/8y8)
Drive train CAN
Signal to
- Intelligent servo module for DIRECT SELECT
- CDI control unit or ME-SFI control unit
- Transmission oil auxiliary oil pump control unit
- Drivetrain control unit
The powertrain control unit, electronic ignition lock (N73) and the head unit (A26/17) are interfaces (Gateway) for the exchange of function-relevant data of the control units which are connected to the various CAN bus systems.
| Designation | Unit | Value | Tolerance range | Remarks |
|---|---|---|---|---|
| Fully integrated transmission control unit (Y3/8n4) | ||||
| Voltage supply | V | 13.5 | ||
| Voltage limits: Minimum | V | 9.0 | ||
| Voltage limits: Maximum | V | 16.0 | ||
| Restricted functionality: Minimum | V | 5.8 - 9.0 | ||
| Restricted functionality: Maximum | V | 16.0 - 27.0 | ||
| Power consumption: Maximum | mA | 500 | No-load current | |
| Power consumption: Maximum | A | 5 (temporarily 10) | Operation | |
| Short circuit current consumption: Maximum | A | 13 | With a hydraulic valve | |
| Short circuit current consumption: Maximum | mA | 700 | at another pin | |
| Reverse polarity protection | No | |||
| Operating temperature range | °C | -40 - 140 | ||
| Temperature profile | °C | -40 - 100 | 90 % of service life | |
| Temperature profile | °C | 100 - 130 | 9 % of service life | |
| Temperature profile | °C | 130 - 140 | 1 % of service life | |
| Special features | Fault detection | |||
| Flash capability/coding capability | Yes/yes |
| Wiring diagram for fully integrated transmission control unit | PE27.19-P-2103-97FBA |
