| A0 |
Color code key |
88L |
| A2 |
Radio |
21L |
| A2 |
Radio |
28L |
| A2/56 |
Radio with auto pilot system |
21L |
| A40/3 |
COMAND control unit |
24L |
| A40/3 |
COMAND control unit |
28L |
| A67 |
Inside rearview mirror |
14L |
| A67b1 |
Hands-free system microphone |
18K |
| A67b1x1 |
Hands-free system and LINGUATRONIC microphone electrical connector |
17F |
| A67e1 |
Left reading lamp |
12K |
| A67e2 |
Right reading lamp |
12K |
| A67e3 |
Ambient lamp |
13K |
| A67e4 |
Garage door opener indicator lamp |
15K |
| A67h1 |
Forward automatic dimming mirror light sensor |
16K |
| A67h2 |
Rearward automatic dimming mirror light sensor |
16K |
| A67h3 |
Automatic dimming mirror |
17K |
| A67n2 |
Garage door opener |
15J |
| A67s1 |
Garage door opener button 1 |
14K |
| A67s2 |
Garage door opener button 2 |
14K |
| A67s3 |
Garage door opener button 3 |
14K |
| B38/2 |
Rain/light sensor |
10L |
| CAN B |
Interior CAN |
2K |
| Code 348 |
Emergency ca11/assistance system |
61A |
| Code 350 |
Ecall Europe emergency call system |
70G |
| Code 359 |
TELEAID emergency call system |
61A |
| Code 360 |
HERMES UMTS |
75A |
| Code 362 |
HERMES LTE |
75A |
| E14/1 |
Left sun visor mirror lamp |
32L |
| E14/2 |
Right sun visor mirror lamp |
34L |
| E15/3 |
Rear dome lamp |
36L |
| E15/3e1 |
Left rear reading lamp |
36K |
| E15/3e2 |
Right rear reading lamp |
37K |
| E15/3e3 |
Rear interior lamp |
35K |
| E15/3s1 |
Left rear reading lamp switch |
36K |
| E15/3s2 |
Right rear reading lamp switch |
37K |
| M12 |
Tilting/sliding roof drive unit |
42L |
| M12b1 |
Tilting/sliding roof Hall sensor 1 |
41K |
| M12b2 |
Tilting/sliding roof Hall sensor 2 |
41K |
| M12m1 |
Tilting/sliding roof motor |
42K |
| N10/1 |
Front SAM control unit with fuse and relay module |
7L |
| N10/1 |
Front SAM control unit with fuse and relay module |
63L |
| N10/1 |
Front SAM control unit with fuse and relay module |
77L |
| N10/1f17 |
Fuse 17 |
6L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
59L |
| N10/2f46 |
Fuse 46 |
58L |
| N112/2 |
Telematics services communication module |
72L |
| N112/9 |
HERMES control unit |
80L |
| N123/4 |
Emergency call system control unit |
67L |

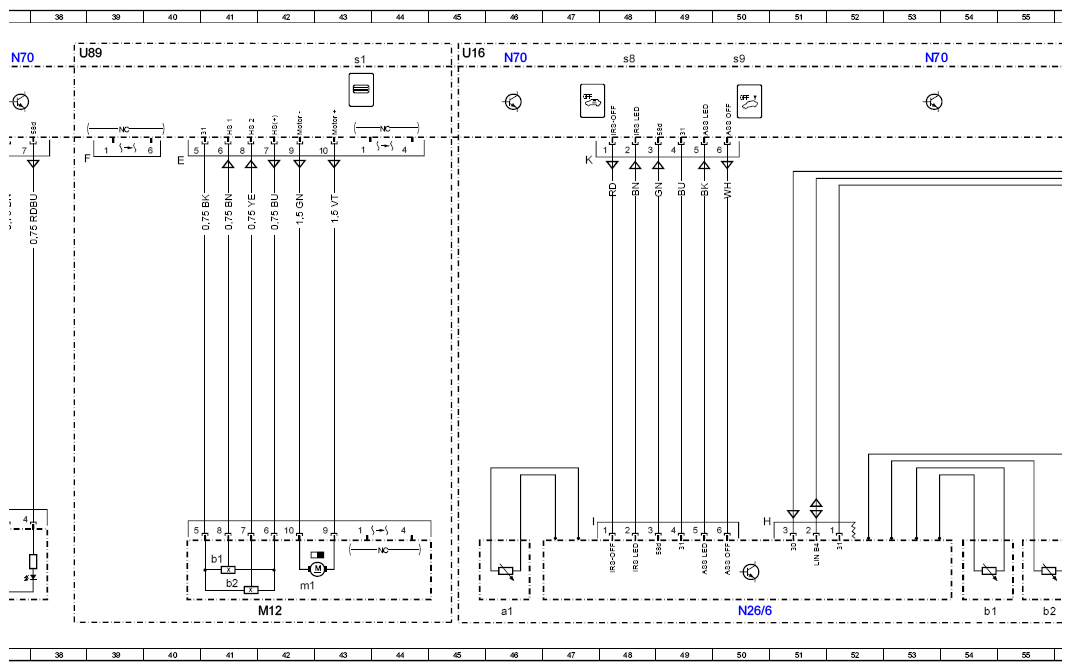

| N26/6 |
Interior protection and tow-away protection control unit |
50L |
| N26/6a1 |
Interior protection receiver |
46L |
| N26/6b1 |
Left interior protection transmitter |
54L |
| N26/6b2 |
Right interior protection transmitter |
55L |

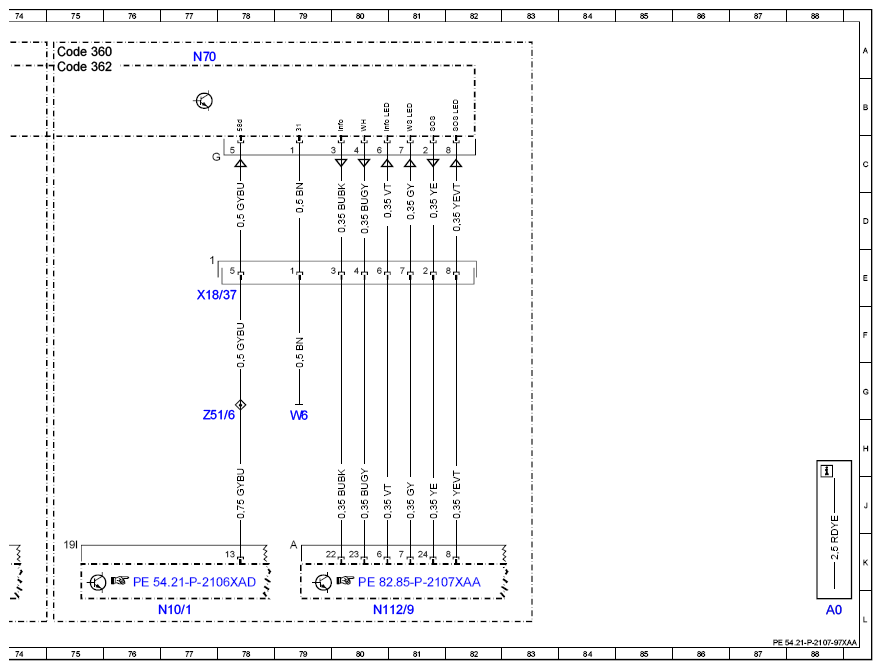

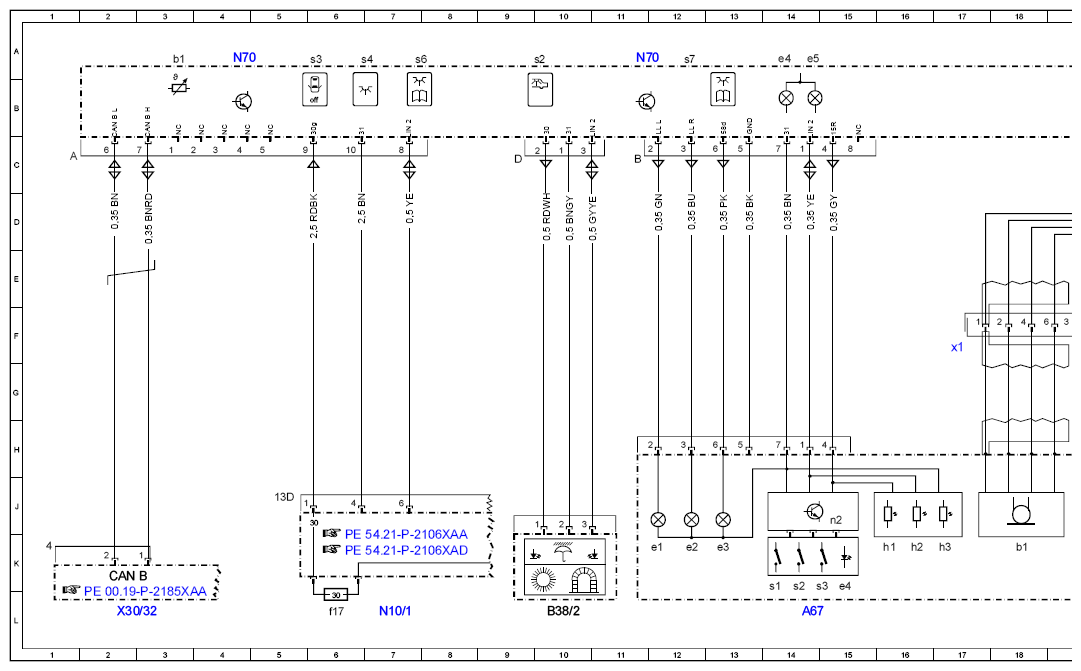

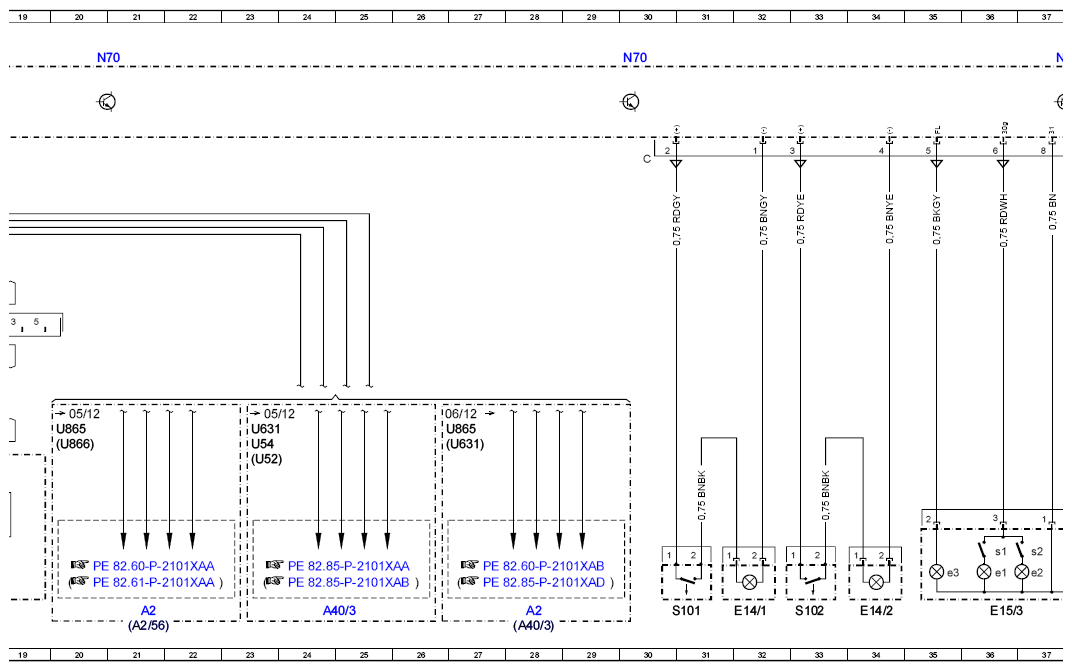

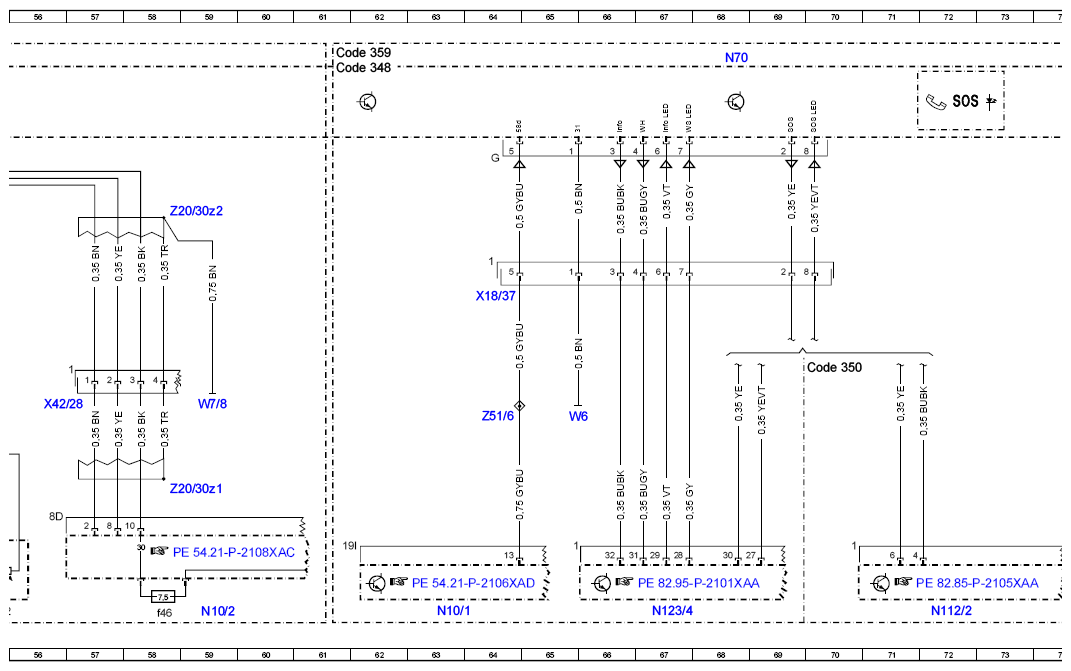

| N70 |
Overhead control panel control unit |
4A |
| N70 |
Overhead control panel control unit |
11A |
| N70 |
Overhead control panel control unit |
20A |
| N70 |
Overhead control panel control unit |
30A |
| N70 |
Overhead control panel control unit |
37A |
| N70 |
Overhead control panel control unit |
46A |
| N70 |
Overhead control panel control unit |
53A |
| N70 |
Overhead control panel control unit |
68A |
| N70 |
Overhead control panel control unit |
77A |
| N70b1 |
Interior temperature sensor with integrated fan |
3A |
| N70e4 |
Left front interior lamp |
14A |
| N70e5 |
Right front interior lamp |
14A |
| N70s1 |
Tilting/sliding roof switch |
43A |
| N70s2 |
Rear dome lamp switch |
10A |
| N70s3 |
Interior lamp automatic function switch |
6A |
| N70s4 |
Front dome lamp switch |
7A |
| N70s6 |
Left front reading lamp switch |
7A |
| N70s7 |
Right front reading lamp switch |
12A |
| N70s8 |
Interior protection switch |
48A |
| N70s9 |
Towing sensor button |
50A |
| S101 |
Left front mirror lamp switch |
31L |
| S102 |
Right front mirror lamp switch |
33L |
| U16 |
Valid for ATA [EDW] with tow-away protection and interior protection |
45A |
| U52 |
Valid for Japan |
23H |
| U54 |
Valid for all except Japan |
23H |
| U631 |
Valid for COMAND |
26H |
| U631 |
Valid for COMAND |
23H |
| U865 |
Valid for Audio 20 |
20H |
| U865 |
Valid for Audio 20 |
26H |
| U866 |
Valid for Audio 50 |
20H |
| U89 |
Valid for tilting/sliding roof |
38A |
| W6 |
Left rear wheel well ground point |
65G |
| W6 |
Left rear wheel well ground point |
79G |
| W7/8 |
Right wheel house trunk ground point |
59G |
| X18/37 |
Emergency call system button electrical connector |
64E |
| X18/37 |
Emergency call system button electrical connector |
77E |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
2L |
| X42/28 |
Interior protection electrical connector |
56G |
| Z20/30z1 |
Tracer wire connector sleeve |
58J |
| Z20/30z2 |
Tracer wire connector sleeve |
58D |
| Z51/6 |
Circuit 58d vehicle interior connector sleeve |
64G |
| Z51/6 |
Circuit 58d vehicle interior connector sleeve |
78G |
