Component Description For Rear Sam Control Unit With Fuse And Relay Module - GF54.21-P-6030FQ

MODEL 218

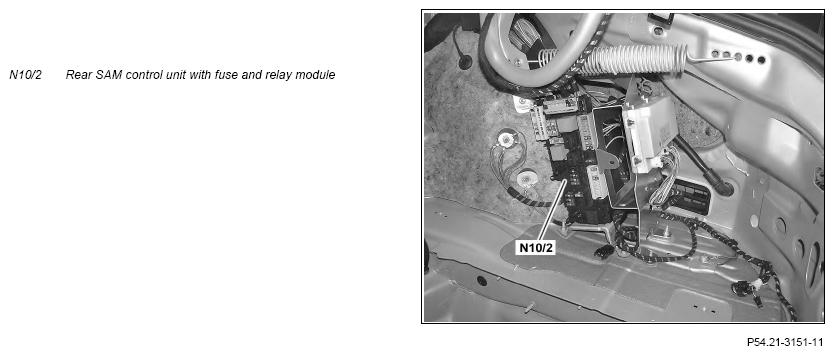

Fig 1: Rear Sam Control Unit With Fuse And Relay Module Components Location - Model 218
G12631063Courtesy of MERCEDES-BENZ USA

Location

The rear SAM control unit is located at the right rear in the trunk.

Task

The rear SAM control unit has the following tasks:

The fuse and relay module of the rear SAM control unit supplies various systems and control units with power through limit switches to match the function sequence.

The following tasks are the responsibility of the fuse and relay module:

Reading in of sensors and signals

The input factors are read in over the following connections:

Direct line

The signals from the following components are read via direct lines:

LIN

The signals from the following components are read in via LIN:

Interior CAN

The signals are read in by the rear SAM control unit over the interior CAN.

The functions that use these signals are described in the individual function descriptions (see block diagram or function schematic).

Evaluation of input factors

The input factors are evaluated by the microprocessor and the corresponding components are actuated.

Controlling functions

The rear SAM control unit controls the following functions:

Actuation of components

The actuation of the components takes place via the following connections:

Direct line

The following components are actuated via direct lines:

LIN

The alarm siren (with code 882 (Interior monitoring)) is actuated over the rear SAM-LIN.

Interior CAN

The signals are sent over the interior CAN by the rear SAM control unit. The functions that use these signals are described in the individual function descriptions (see block diagram or function schematic).

  Wiring diagram for rear SAM control unit with fuse and relay module (N10/2) Model 218 Sheet 1
Model 218 Sheet 2
Model 218 Sheet 3
Model 218 Sheet 4
Model 218 Sheet 5
Model 218 Sheet 6
Model 218 Sheet 7
Model 218 Sheet 8
PE54.21-P-2108-97XAA
PE54.21-P-2108-97XAB
PE54.21-P-2108-97XAC
PE54.21-P-2108-97XAD
PE54.21-P-2108-97XAE
PE54.21-P-2108-97XAF
PE54.21-P-2108-97XAG
PE54.21-P-2108-97XAH
