Component Description For Steering Column Tube Module Control Unit - GF54.21-P-6051FQ

MODEL 218

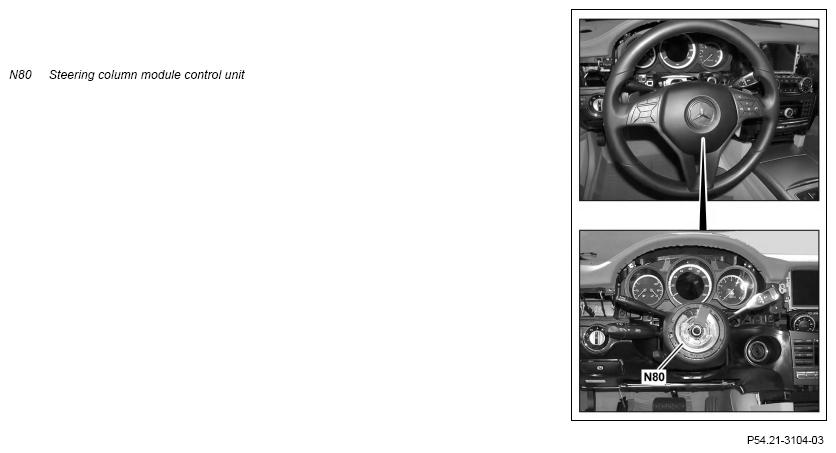

Fig 1: Steering Column Tube Module Control Unit Components Location - Model 218
G12631090Courtesy of MERCEDES-BENZ USA

Up to 28.02.2013

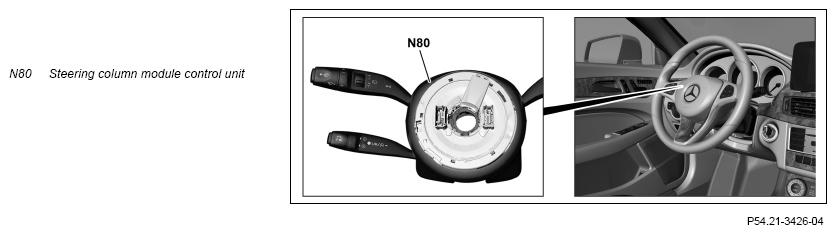

Fig 2: Steering Column Tube Module Control Unit Components Location - Up to 28.02.2013 As of 01.03.2013
G12631091Courtesy of MERCEDES-BENZ USA

As of 01.03.2013

Location

The steering column tube module control unit is located directly underneath the multifunction steering wheel on the steering column tube of the steering column.

Tasks

The steering column tube module control unit is used for data exchange between the control elements on the multifunction steering wheel and the corresponding control units.

The steering column tube module control unit has the following tasks:

Reading in of sensors and signals

The input factors are read in over the following connections:

Direct line

The signals from the following components are read via direct lines:

Steering LIN

The steering wheel electronics (N135) directly reads in the signals for the following components and sends them over the steering LIN to the steering column tube module control unit:

Chassis CAN (up to 28.02.2013) or chassis CAN 1 (as of 01.03.2013)

The steering column tube module control unit also reads in the following signals via the chassis CAN or chassis CAN 1:

The functions that use these signals are described in the individual function descriptions (see block diagram or function schematic).

Evaluation of input factors

The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.

Actuation of components

The actuation of the components takes place via the following connections:

Direct line

The following components are actuated via direct lines:

The following components are actuated directly via a looped line by the supplemental restraint system control unit (N210):

On vehicles up to 28.02.2013 with CODE 443 (Steering wheel heater), the steering wheel heater control unit (N25/7) actuates the steering wheel heater heating element directly over a connected line.

Steering LIN

The steering wheel electronics actuate the following components directly. The signals for this are received by the steering wheel electronics via the steering LIN from the steering column tube module control unit:

Sending signals

The steering column tube module control unit sends, for example, the following signals via the chassis CAN (up to 28.02.2013) or chassis CAN 1 (as of 01.03.2013):

  Wiring diagram for steering column module control unit   PE46.10-P-2101-97XAA
