Overview Of System Components For Driver Assistance Systems - GF54.00-P-9998FQ
MODEL 218
up to year 2015

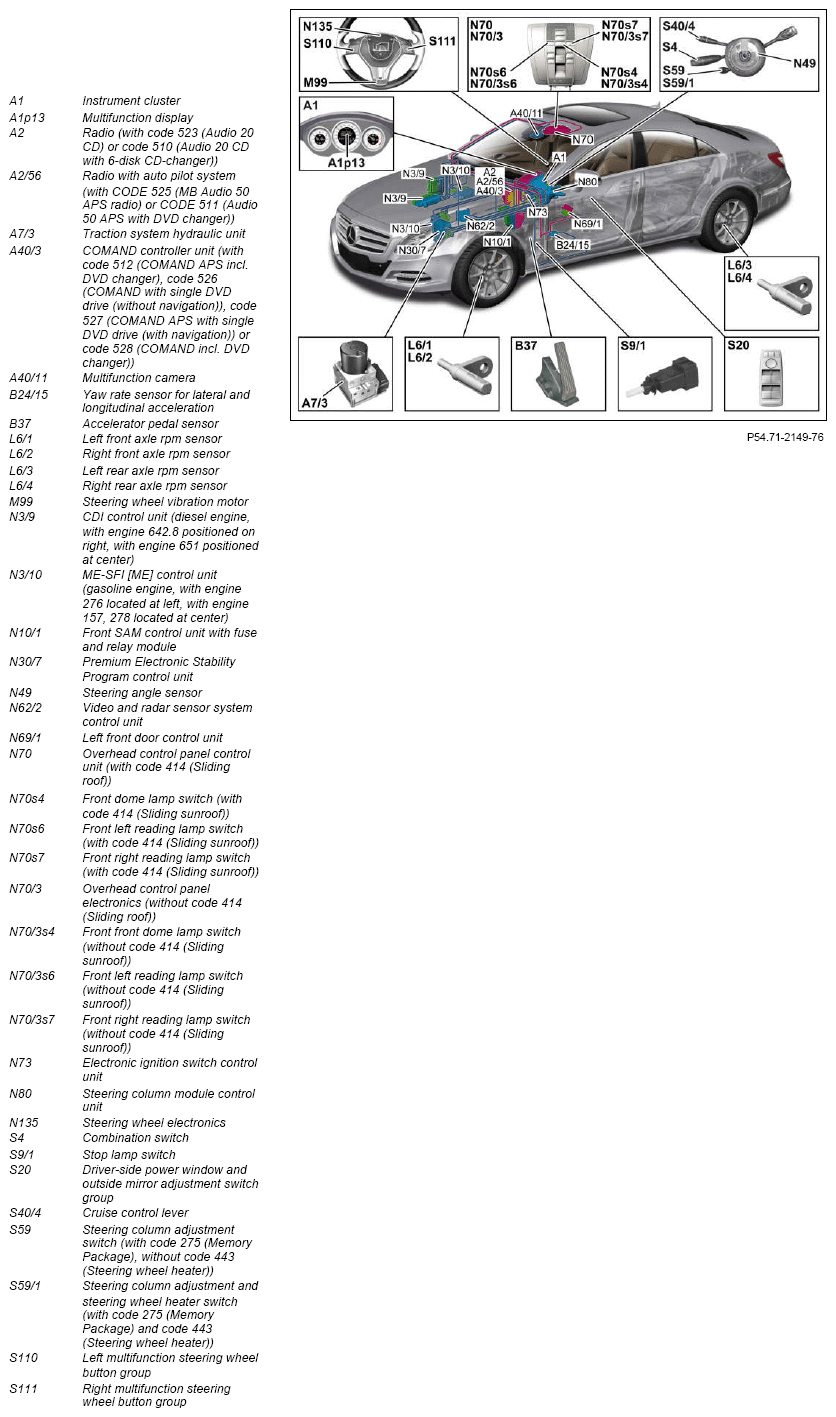

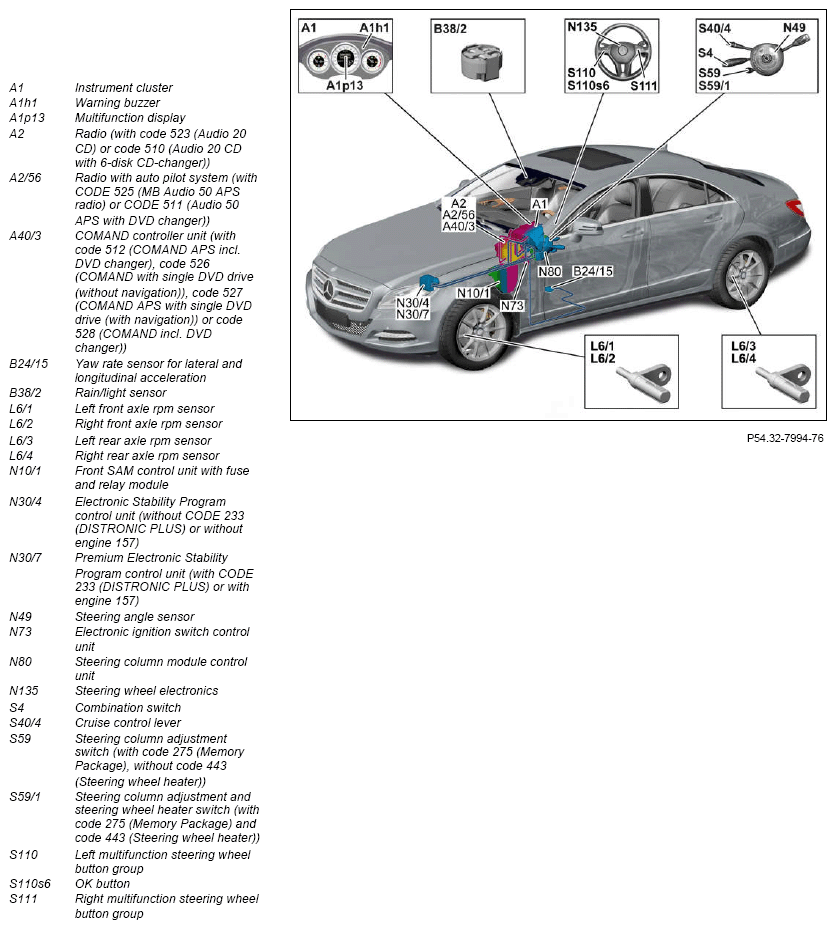

Attention assistance system; shown is model 218.3

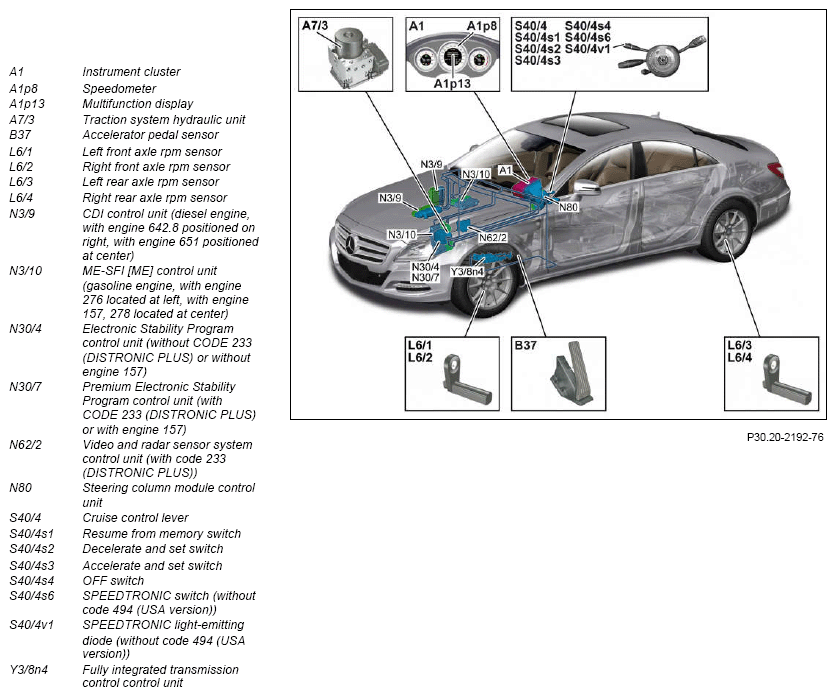

CRUISE CONTROL, shown is model 218.3

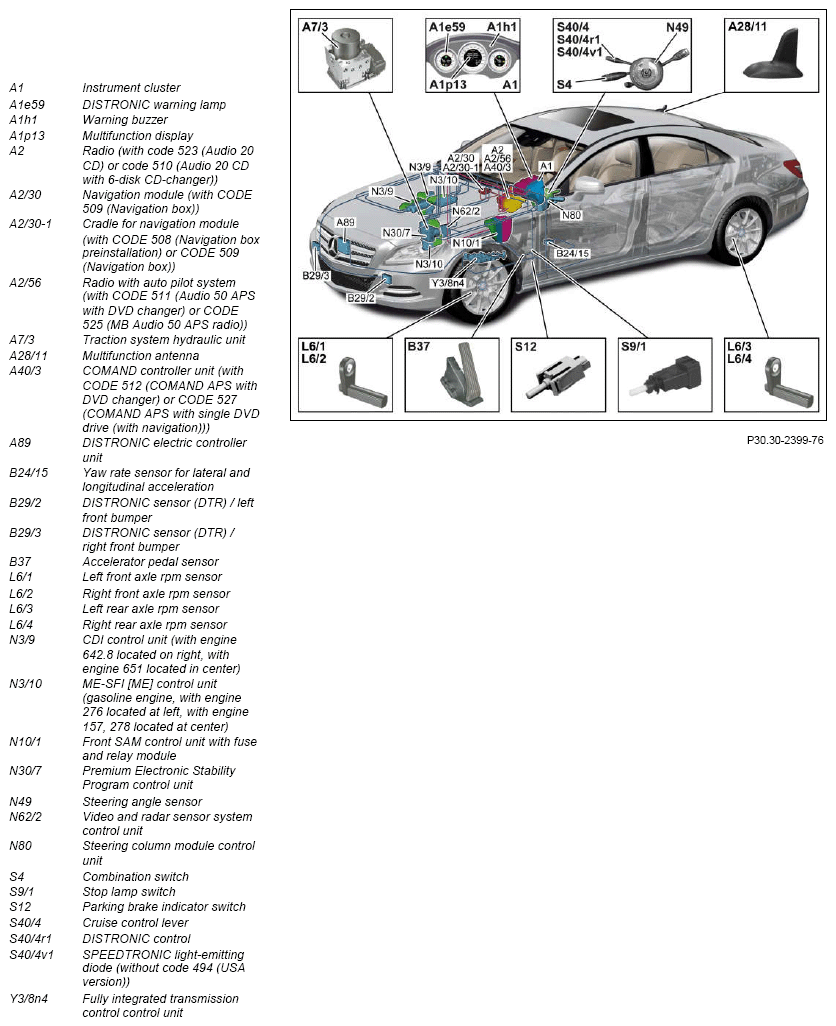

DISTRONIC (with code 233 (DISTRONIC PLUS)), shown on model 218.3

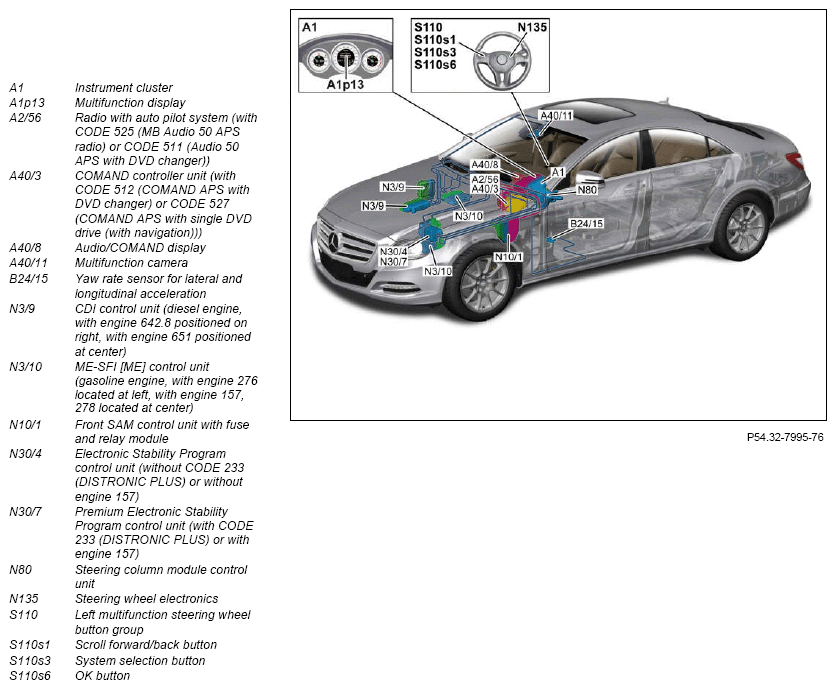

Lane Keeping Assist (with CODE 476 (Lane Keeping Assist)), shown on model 218.3

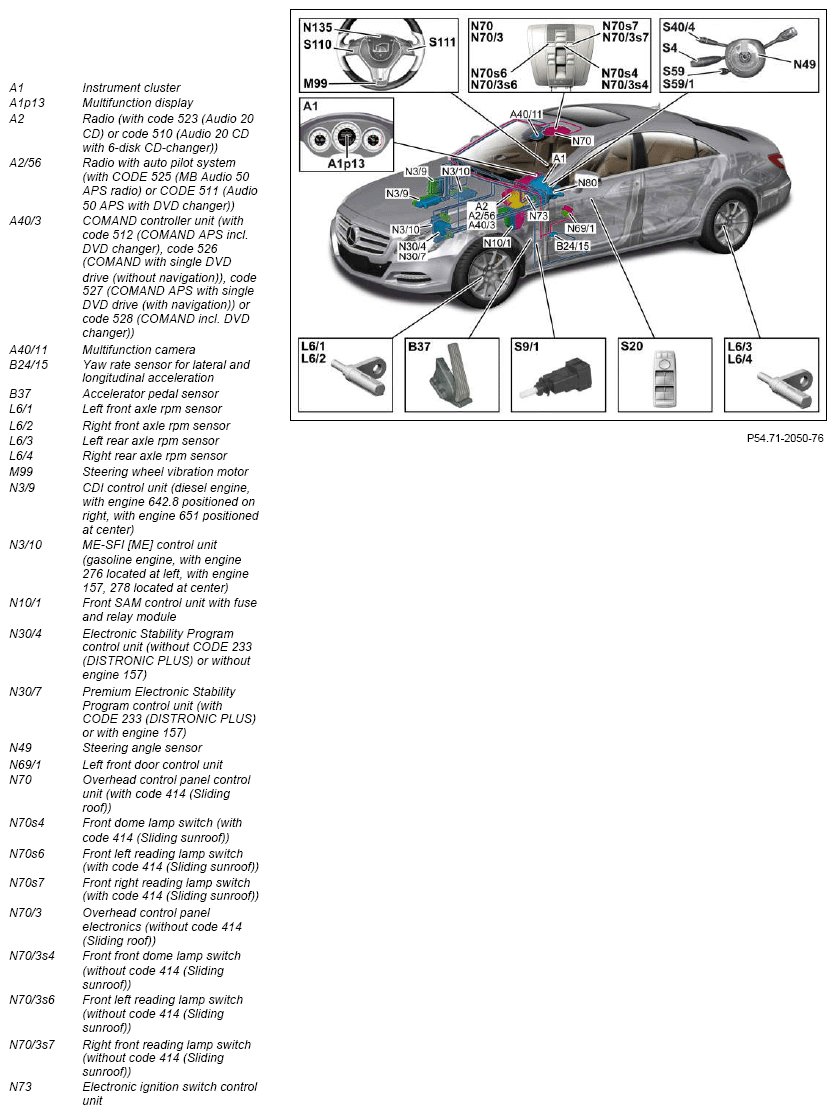

Active Lane Keeping Assist (with code 238 (Active Lane Keeping Assist)), shown on model 218.3

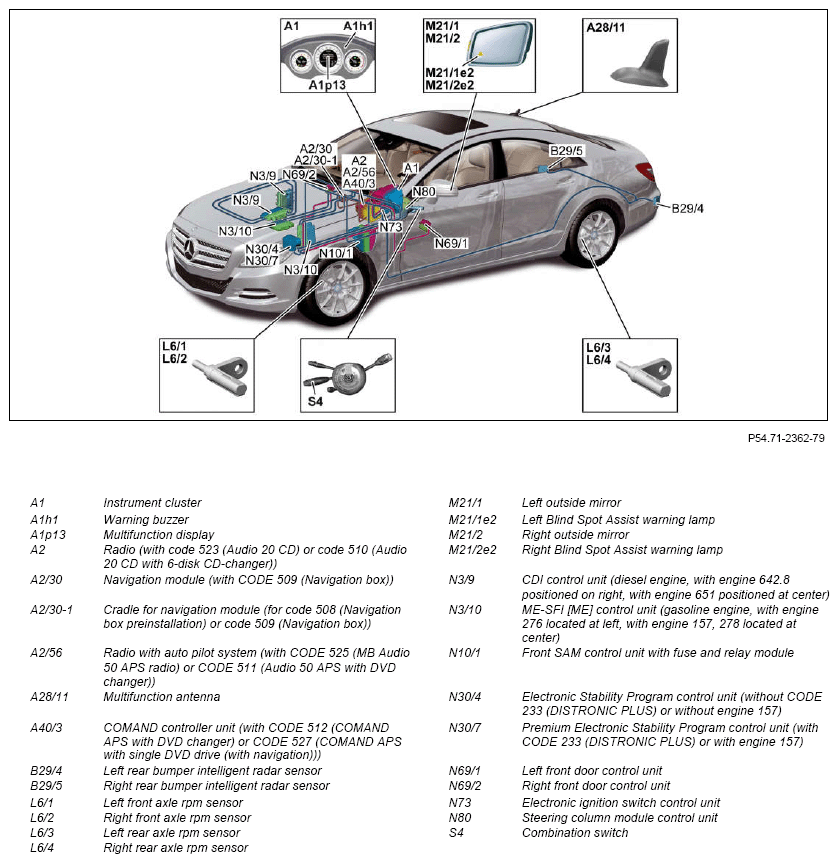

Blind Spot Assist (with code 234 (Blind Spot Assist)), shown on model 218.3
Model 218.9
up to model year 2015
with code 550 (Trailer coupling)
The trailer recognition control unit (N28/1) is additionally installed in the rear compartment of the vehicle.

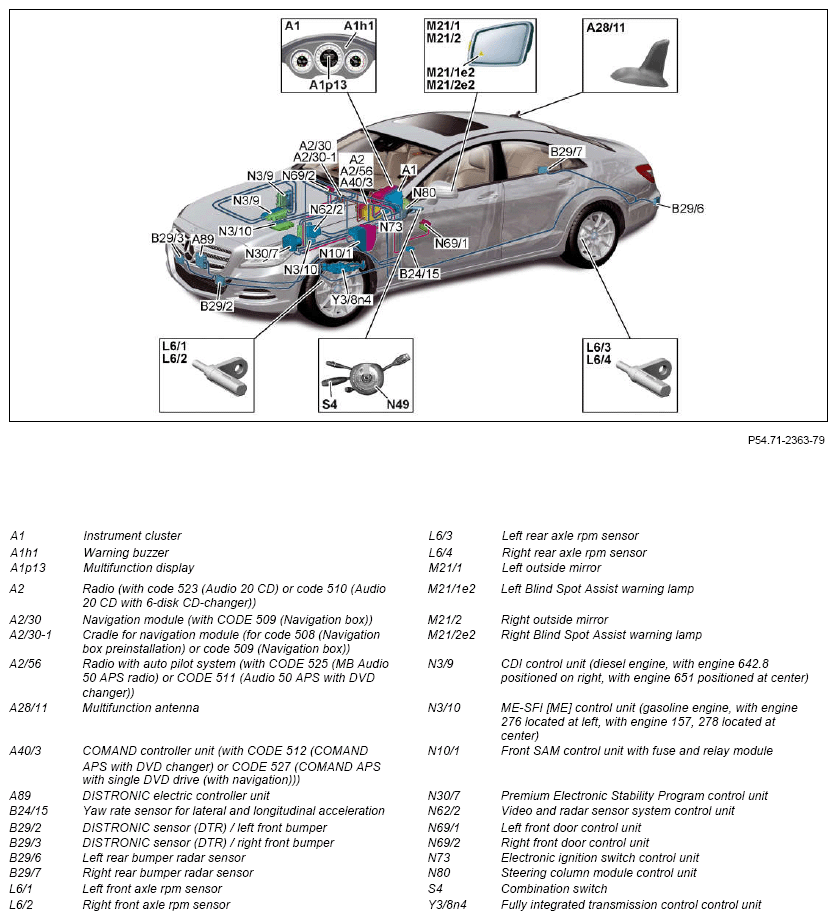

Blind Spot Assist (with code 237 (Active Blind Spot Assist)), shown on model 218.3
Model 218.9
up to model year 2015
with code 550 (Trailer coupling)
The trailer recognition control unit (N28/1) is additionally installed in the rear compartment of the vehicle.
Speed Limit Assist (with code 513 (Speed Limit Assist)), shown on model 218.3

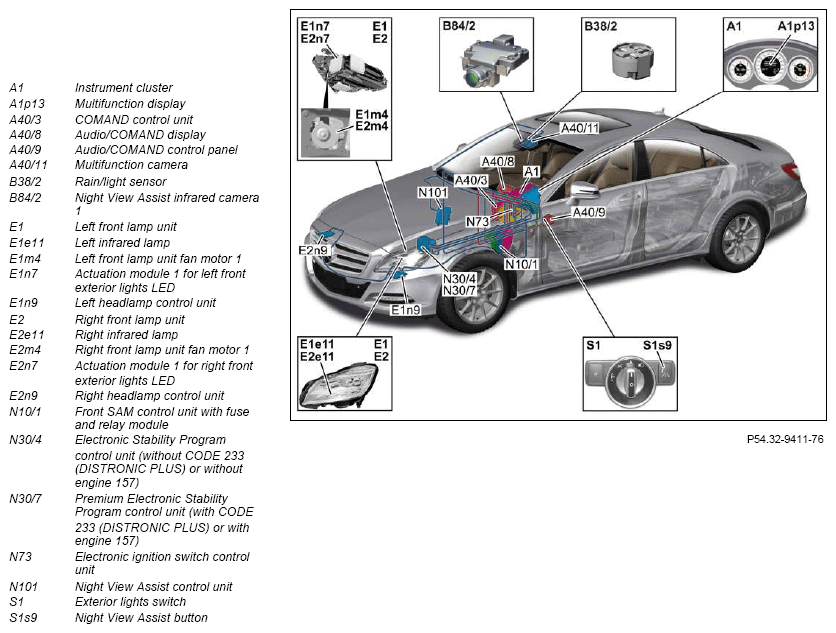

Night View Assist (with code 610 (Night View Assist)), shown on model 218.3
| Component description for instrument cluster | A1 | GF54.30-P-6000FQ | |
| Component description for the radio | Model 218 up to model year 2015 with code 510 (Audio 20 CD with 6-disc CD changer) Model 218 up to model year 2015 with code 523 (Audio 20 CD) A2 |
GF82.60-P-3122FQ | |
| Cradle for navigation module, component description | Model 218 up to model year 2015 with code 508 (Navigation box pre-installation) with code 509 (Navigation box) A2/30-1 |
GF82.85-P-3137FQ | |
| Component description for radio with auto pilot system | Model 218 up to model year 2015 with code 511 (Audio 50 APS with DVD changer) Model 218 up to model year 2015 with code 525 (MB Audio 50 APS radio) A2/56 |
GF82.61-P-4112FQ | |
| Component description for COMMAND controller unit | Model 218 up to model year 2013 with code 512 (COMMAND APS with DVD changer) Model 218 up to model year 2013 with code 526 (COMMAND with single DVD drive (without navigation)) Model 218 up to model year 2013 with code 527 (COMMAND APS with single DVD drive (with navigation)) Model 218 up to model year 2013 with code 528 (COMMAND with DVD changer) A40/3 |
GF82.85-P-3136FQ | |
| Model 218.3 as of model year 2013 up to model year 2015 with code 512 (COMMAND APS with DVD changer) Model 218.3 as of model year 2013 up to model year 2015 with code 527 (COMMAND APS with single DVD drive (with navigation)) Model 218.3 as of model year 2013 up to model year 2015 with code 528 (COMMAND with DVD changer) Model 218.9 up to model year 2015 with code 512 (COMMAND APS with DVD changer) Model 218.9 up to model year 2015 with code 527 (COMMAND APS with single DVD drive (with navigation)) Model 218.9 up to model year 2015 with code 528 (COMMAND with DVD changer) A40/3 |
GF82.85-P-3136FQB | ||
| Component description for Audio/COMMAND display | Model 218 up to 8/31/14 up to model year 2015 except code 867 (SPLITVIEW) A40/8 |
GF54.30-P-6150FQ | |
| Model 218 up to 8/31/14 up to model year 2015 with code 867 (SPLITVIEW) A40/8 |
GF54.30-P-6150FQA | ||
| Component description for Audio/COMMAND control panel | A40/9 | GF54.21-P-4501FQ | |
| Component description for multifunction camera | Model 218 up to model year 2015 with code 238 (Active lane keeping Assist) Model 218 up to model year 2015 with code 476 (Lane keeping assist) Model 218 up to model year 2015 with code 513 (Speed Limit Assist) Model 218 up to model year 2015 with code 608 (Adaptive High beam Assist) A40/11 |
GF54.21-P-3300FQ | |
| Component description for DISTRONIC electric controller unit | Model 218 up to model year 2015 with code 233 (DISTRONIC PLUS) Model 218 up to model year 2015 with code 237 (Active Blind Spot Assist) A89 |
GF30.30-P-3213FQ | |
| Component description for yaw rate sensor for lateral and longitudinal acceleration | B24/15 | GF42.45-P-4810FQ | |
| Component description for bumper radar sensors | Model 218 up to model year 2015 with code 233 (DISTRONIC PLUS) Model 218 up to model year 2015 with code 237 (Active Blind Spot Assist) B29/2, B29/3, B29/6, B29/7 |
GF30.30-P-3302FQ | |
| Component description for intelligent radar sensor control unit | Model 218 up to model year 2015 with code 234 (Blind Spot Monitoring) B29/4, B29/5 |
GF30.30-P-3305FQ | |
| Headlamp control unit, component description | Model 218 up to model year 2015 with code 621 (Intelligent Light System (left-hand traffic)) Model 218 up to model year 2015 with code 622 (Intelligent Light System) E1n9, E2n9 |
GF82.10-P-2020FQ | |
| Component description for CDI control unit | Model 218 with engine 642.8 up to model year 2015 N3/9 |
GF07.16-P-6000OG | |
| Model 218 with engine 651.9 up to model year 2015 N3/9 |
GF07.16-P-6000OM | ||
| Component description for ME-SFI (ME) control unit | Model 218 with engine 276.9 up to model year 2015 N3/10 |
GF07.61-P-6000MM | |
| Model 218 with engine 157.9 up to model year 2015 Model 218 with engine 278.9 up to model year 2015 N3/10 |
GF07.61-P-6000MMA | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070FQ | |
| Component description for Electronic Stability Program control unit | Model 218 up to model year 2014 N30/4, N30/7 |
GF42.45-P-5119FQ | |
| Model 218 as of model year 2014 up to model year 2015 N30/4, N30/7 |
GF42.45-P-5119FQA | ||
| Component description for video and radar sensor system control unit | Model 218 up to model year 2015 with code 233 (DISTRONIC PLUS) Model 218 up to model year 2015 with code 237 (Active Blind Spot Assist) Model 218 up to model year 2015 with code 238 (Active lane keeping Assist) N62/2 |
GF30.30-P-3304FQ | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FQ | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FQ | |
| Component description for overhead control panel control unit | Model 218 up to model year 2015 with code 414 (Sliding sunroof) N70 |
GF82.20-P-5216FQ | |
| Component description for electronic overhead control panel | Model 218 up to model year 2015 except code 414 (Sliding sunroof) N70/3 |
GF82.20-P-5217FQ | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FQ | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051FQ | |
| Night View Assist control unit, component description | Model 218 up to model year 2015 with code 610 (Night view assist) N101 |
GF54.30-P-6200FQ | |
| Component description for fully integrated transmission control unit | Model 218 with transmission 722.9 (except 722.931) up to model year 2015 Y3/8n4 |
GF27.60-P-5165AHQ | |
| Model 218 with transmission 722.931 up to model year 2015 Y3/8n4 |
GF27.60-P-5165AHR | ||
| Table of contents for function description of driver assistance systems | GF54.00-P-0998FQ |
