Overview Of System Components For Driver Assistance Systems - GF54.00-P-9998FQM

MODEL 218

as of year 2015

G12625684Courtesy of MERCEDES-BENZ USA

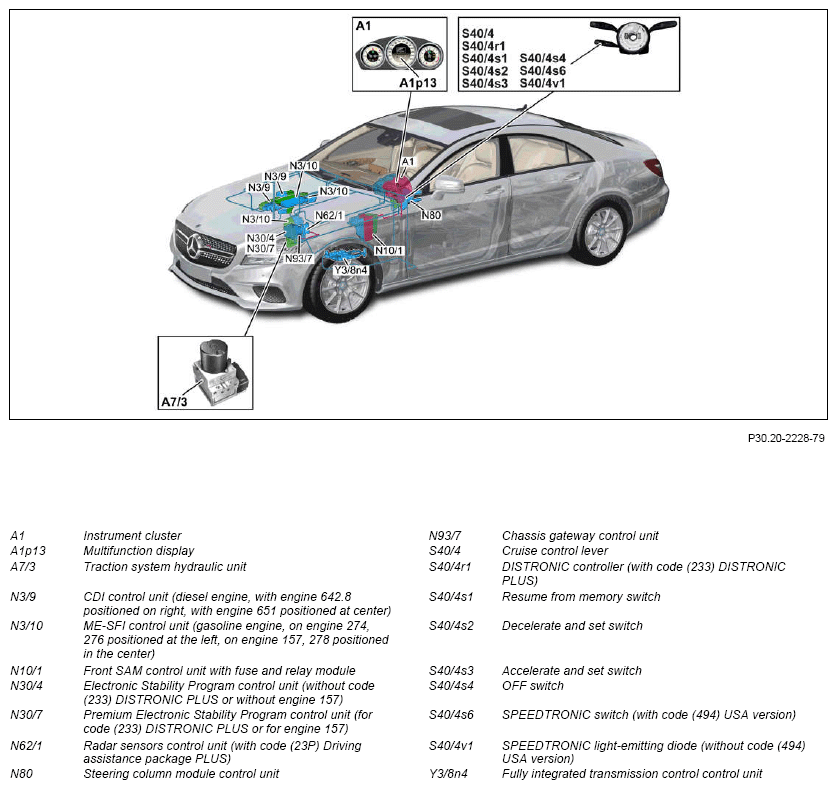

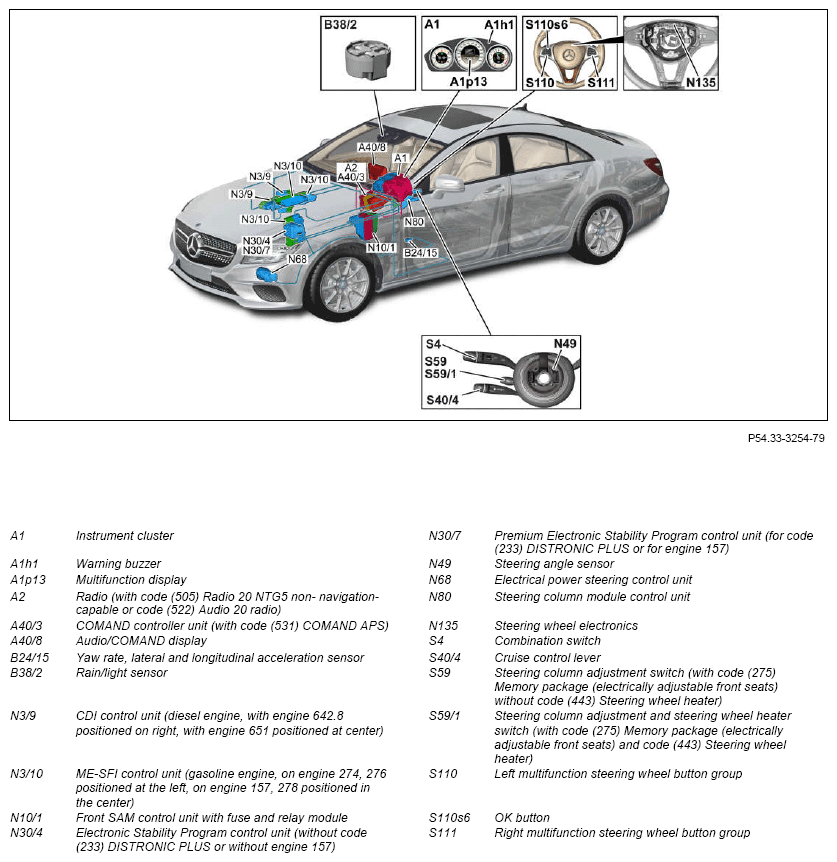

Attention assistance system; shown is model 218.3

G12625685Courtesy of MERCEDES-BENZ USA

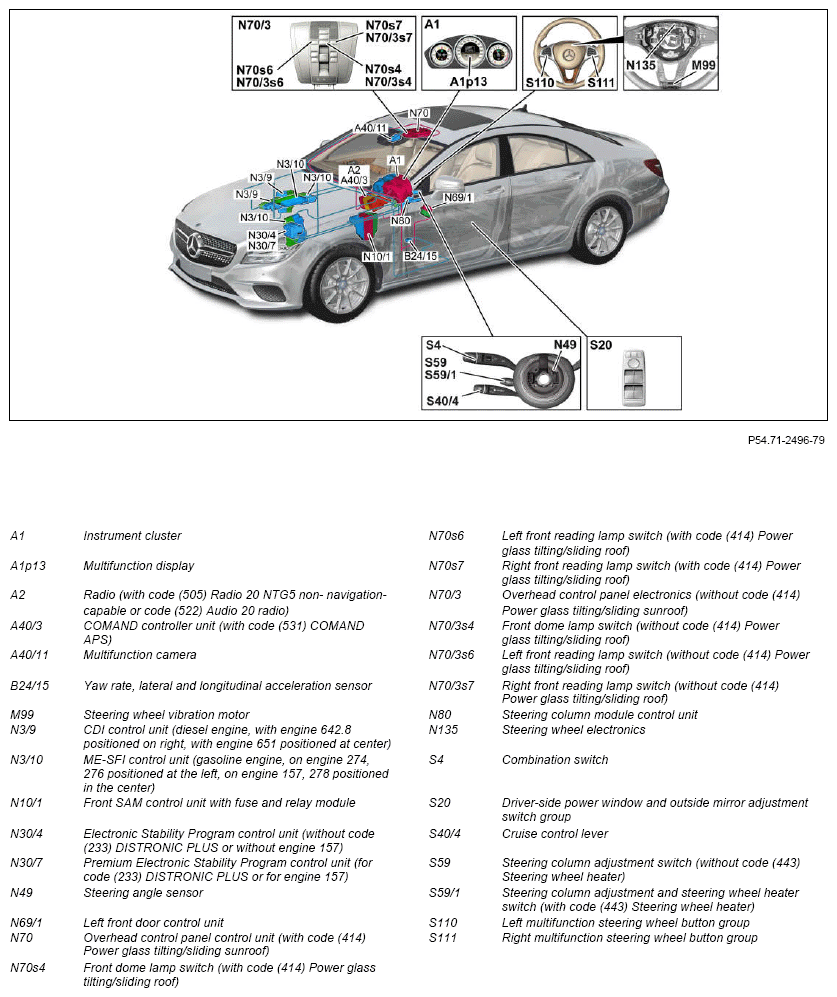

CRUISE CONTROL, shown is model 218.3

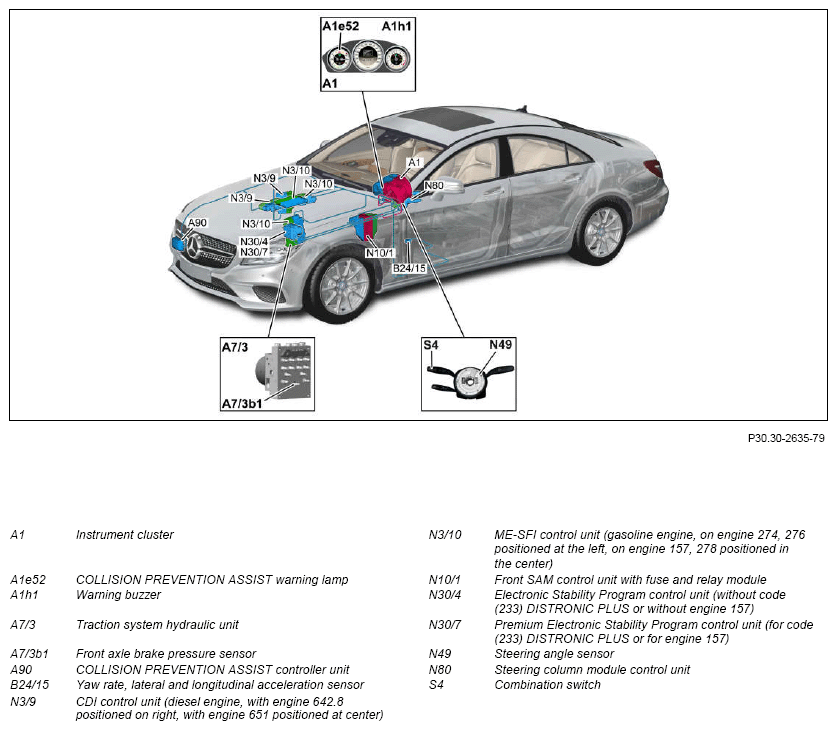

G12625686Courtesy of MERCEDES-BENZ USA

Lane Keeping Assist (with code (476) Lane Keeping Assist); shown is model 218.3

G12625687Courtesy of MERCEDES-BENZ USA

COLLISION PREVENTION ASSIST PLUS (with code (258) COLLISION PREVENTION ASSIST PLUS), shown is model 218.3

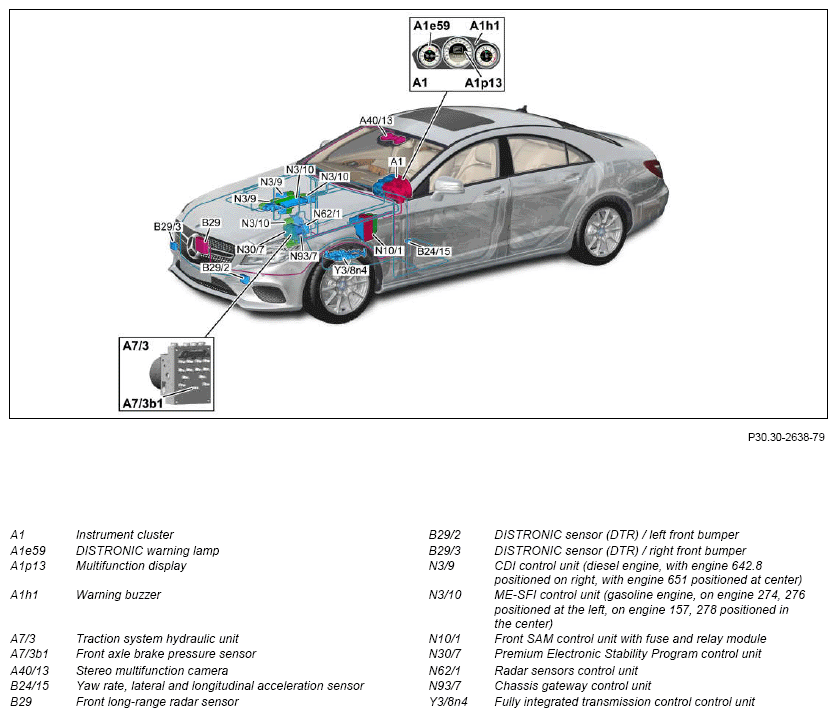

G12625688Courtesy of MERCEDES-BENZ USA

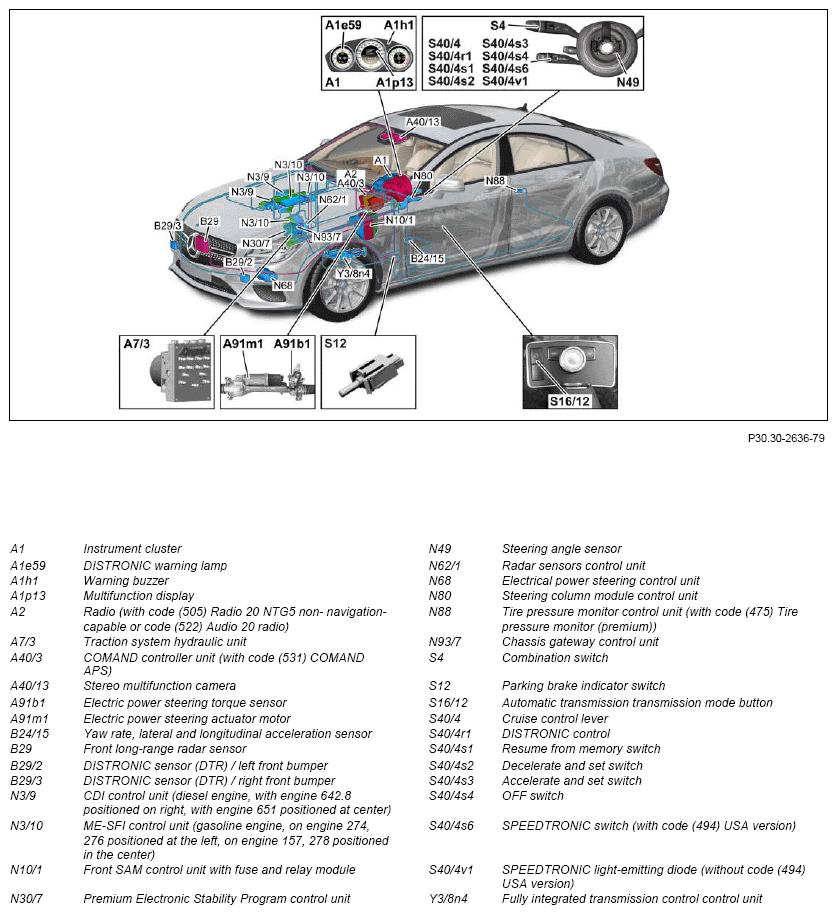

DISTRONIC PLUS with Steer Assist and Stop & Go Pilot (with code (266) DISTRONIC PLUS with Steer Assist and Stop & Go Pilot), shown is model 218.3

IMPORTANT Model 218.9

as of model year 2015

with code 550 (Trailer coupling)

The trailer recognition control unit (N28/1) is additionally installed in the rear compartment of the vehicle.

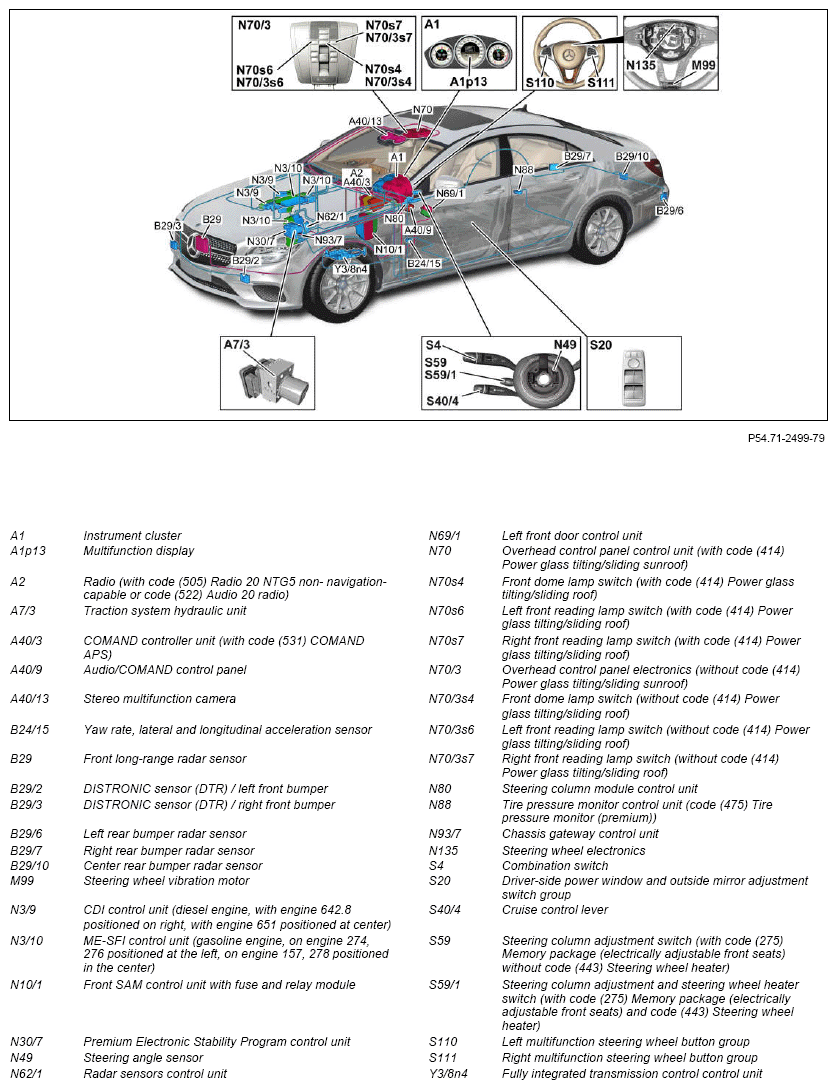

G12625689Courtesy of MERCEDES-BENZ USA

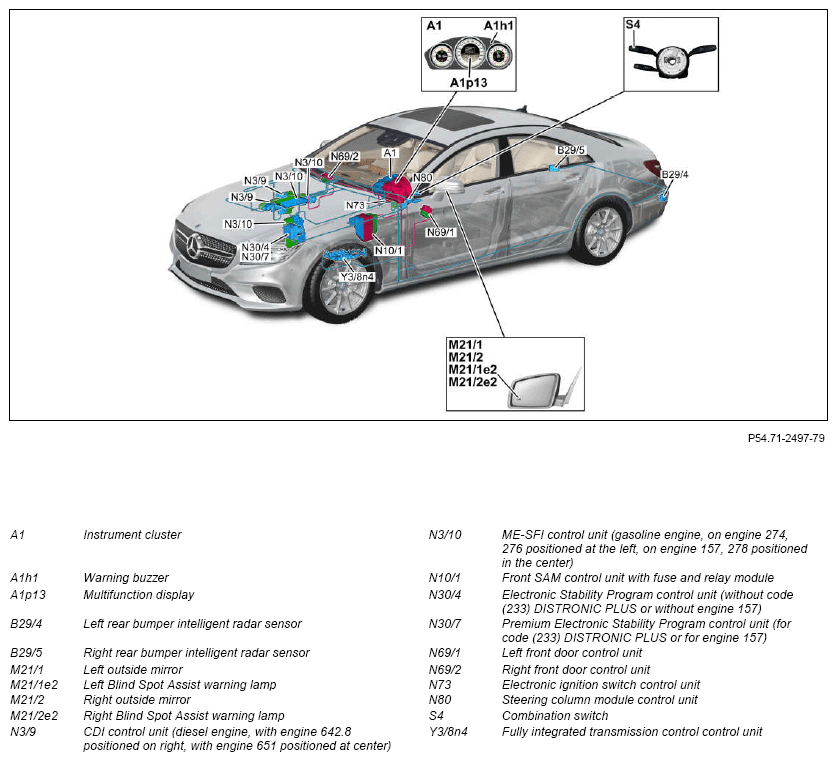

Blind Spot Assist (with code (234) Blind Spot Assist), shown is model 218.3

IMPORTANT Model 218.9

as of model year 2015

with code 550 (Trailer coupling)

The trailer recognition control unit (N28/1) is additionally installed in the rear compartment of the vehicle.

G12625690Courtesy of MERCEDES-BENZ USA

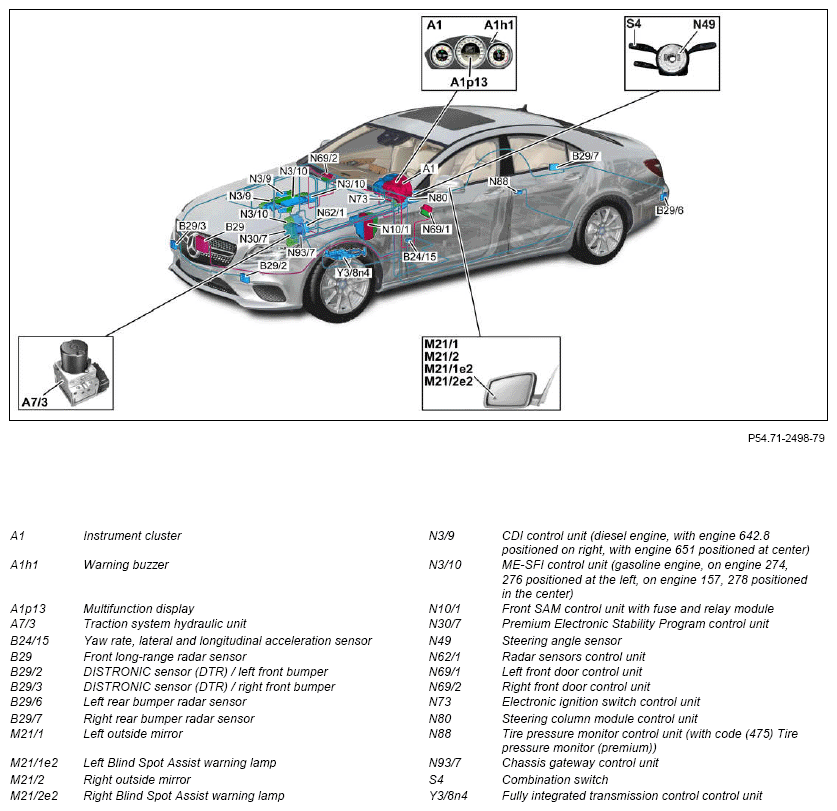

Active Blind Spot Assist (with code (237) Active Blind Spot Assist); shown is model 218.3

IMPORTANT Model 218.9

as of model year 2015

with code 550 (Trailer coupling)

The trailer recognition control unit (N28/1) is additionally installed in the rear compartment of the vehicle.

G12625691Courtesy of MERCEDES-BENZ USA

Active Lane Keeping Assist (with code (238) Active Lane Keeping Assist), shown is model 218.3

IMPORTANT Model 218.9

as of model year 2015

with code 550 (Trailer coupling)

The trailer recognition control unit (N28/1) is additionally installed in the rear compartment of the vehicle.

G12625692Courtesy of MERCEDES-BENZ USA

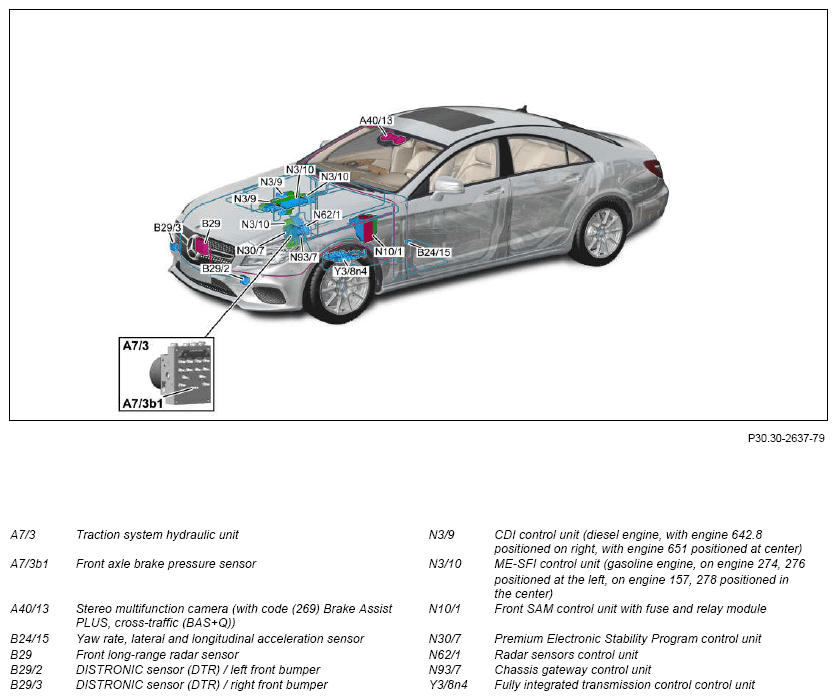

BAS PLUS (with code (268) Brake Assist PLUS and code (269) Brake Assist PLUS, cross-traffic (BAS+Q)); shown is model 18.3

G12625693Courtesy of MERCEDES-BENZ USA

PRE-SAFE® brake (with code (233) DISTRONIC PLUS), shown is model 218.3

G12625694Courtesy of MERCEDES-BENZ USA

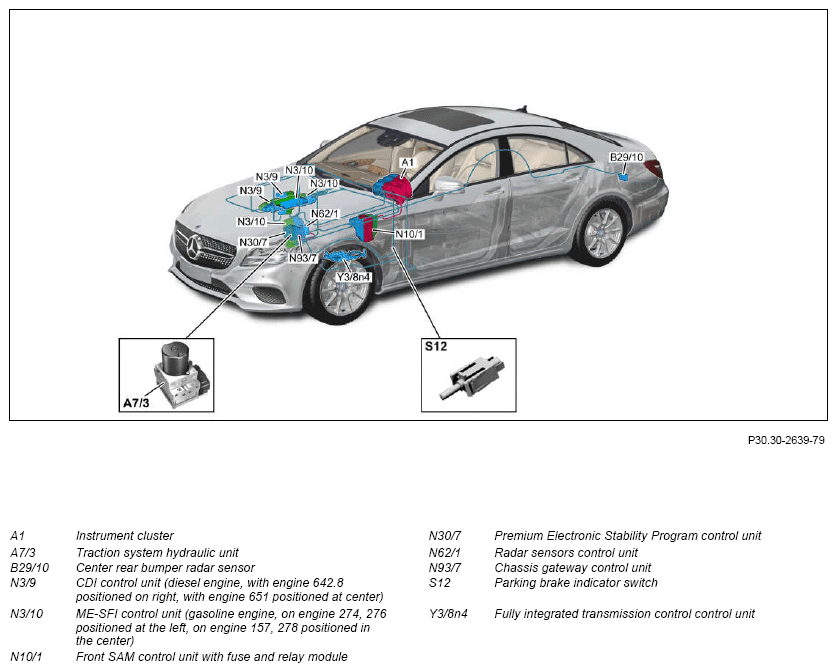

PRE-SAFE® rear end (for code (253) Rear collision warning and protection system), shown is model 218.3

IMPORTANT Model 218.9

as of model year 2015

with code 550 (Trailer coupling)

The trailer recognition control unit (N28/1) is additionally installed in the rear compartment of the vehicle.

G12625695Courtesy of MERCEDES-BENZ USA

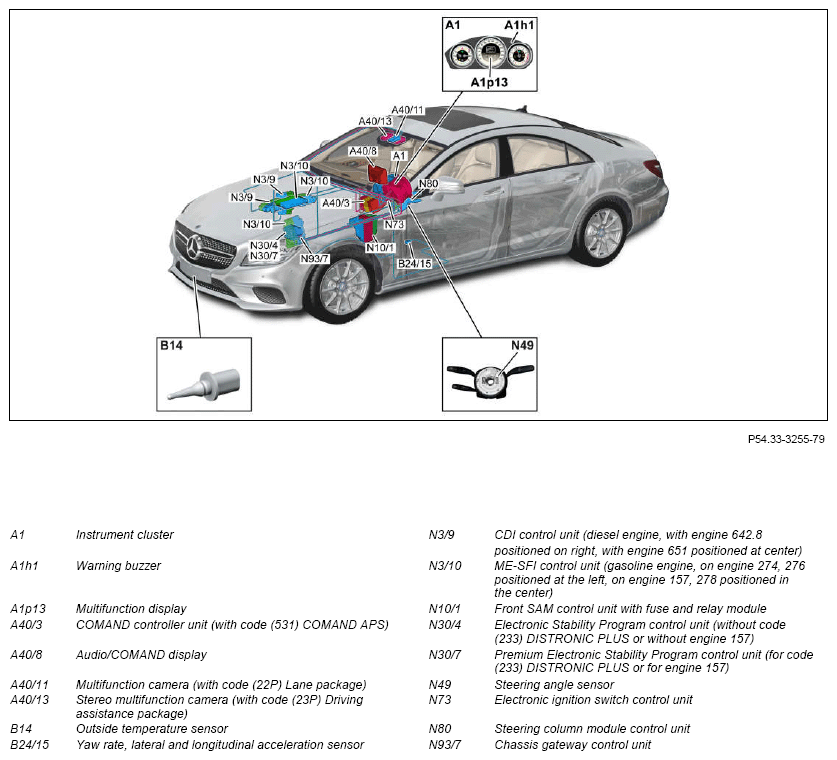

Traffic Sign Assist (with code (513) Traffic sign recognition); shown is model 218.3

IMPORTANT Model 218.9

as of model year 2015

with code 550 (Trailer coupling)

The trailer recognition control unit (N28/1) is additionally installed in the rear compartment of the vehicle.

  Component description for instrument cluster A1 GF54.30-P-6000FQ
  Component description for the radio Model 218
as of model year 2015
with code 505 (Radio 20 NTG5, not navigation-enabled)
Model 218
as of model year 2015
with code 522 (Audio 20 radio)
A2		 GF82.60-P-3122FQM
  Component description for COMMAND controller unit Model 218
as of model year 2015
with code 531 (COMMAND APS)
A40/3		 GF82.85-P-3136FQM
  Component description for Audio/COMMAND display Model 218
as of model year 2015
with code 505 (Radio 20 NTG5, not navigation-enabled)
Model 218
as of model year 2015
with code 522 (Audio 20 radio)
Model 218
as of model year 2015
with code 531 (COMMAND APS)
A40/8		 GF54.30-P-6150FQM
  Component description for Audio/COMMAND control panel A40/9 GF54.21-P-4501FQ
  Component description for multifunction camera Model 218
as of model year 2015
with code 22P (Lane tracking package)
Model 218
as of model year 2015
with code 23P (Driving Assistance package)
Model 218
as of model year 2015
with code 513 (Speed Limit Assist)
Model 218
as of model year 2015
with code 628 (Adaptive High beam Assist Plus A40/11, A40/13		 GF54.21-P-3300FQ
  COLLISION PREVENTION ASSIST controller unit, component description Model 218
as of model year 2015
with code 258 (COLLISION PREVENTION ASSIST)
A90		 GF30.30-P-3214FQM
  Component description for yaw rate sensor for lateral and longitudinal acceleration B24/15 GF42.45-P-4810FQ
  Long-range radar sensor, component description Model 218
as of model year 2015
with code 23P (Driving Assistance package)
B29		 GF30.30-P-3125FQM
  Component description for bumper radar sensors Model 218
as of model year 2015
with code 22P (Lane tracking package)
Model 218
as of model year 2015
with code 234 (Blind Spot Monitoring)
Model 218
as of model year 2015
with code 237 (Active Blind Spot Assist)
with code 238 (Active lane keeping Assist)
with code 266 (DISTRONIC PLUS with Steer Assist and Stop & Go Pilot)
with code 269 (Brake Assist PLUS with Cross-Traffic Assist (BAS+Q)
with code 300 (PRE-SAFE® Brake)
Model 218
as of model year 2015
with code 23P (Driving Assistance package)
B29/2, B29/3, B29/4, B29/5, B29/6, B29/7, B29/10		 GF30.30-P-3302FQM
  Component description for CDI control unit Model 218 with engine 642.8 as of model year 2015
N3/9		 GF07.16-P-6000OG
Model 218 with engine 651.9
as of model year 2015
N3/9		 GF07.16-P-6000OM
  Component description for ME-SFI (ME) control unit Model 218 with engine 274.9
as of model year 2015
N3/10		 GF07.61-P-6000MRB
Model 218 with engine 276.9
as of model year 2015
N3/10		 GF07.61-P-6000MM
Model 218 with engine 157.9
as of model year 2015
Model 218 with engine 278.9
as of model year 2015
N3/10		 GF07.61-P-6000MMA
Model 218 with engine 276.8
as of model year 2015
N3/10		 GF07.61-P-6000MMP
  Component description for front SAM control unit with fuse and relay module N10/1 GF54.21-P-6070FQ
  Component description for trailer recognition control unit Model 218.9
as of model year 2015
with code 550 (Trailer coupling)
N28/1		 GF31.19-P-4050FQ
  Component description for Electronic Stability Program control unit Model 218
as of model year 2015
N30/4, N30/7		 GF42.45-P-5119FQA
  Component description for radar sensors control unit Model 218
as of model year 2015
with code 23P (Driving Assistance package)
N62/1		 GF30.30-P-3301FQM
  Electrical power steering control unit (ES), component description Model 218
as of model year 2015
N68		 GF46.35-P-7010FQA
  Component description for left front door control unit N69/1 GF72.29-P-6001FQ
  Component description for right front door control unit N69/2 GF72.29-P-6009FQ
  Component description for overhead control panel control unit Model 218
as of model year 2015
with code 414 (Sliding sunroof)
N70		 GF82.20-P-5216FQ
  Component description for electronic overhead control panel Model 218
as of model year 2015
except code 414 (Sliding sunroof)
N70/3		 GF82.20-P-5217FQ
  Component description for the electronic ignition lock control unit N73 GF80.57-P-6001FQ
  Component description for steering column tube module control unit N80 GF54.21-P-6051FQ
  Component description for tire pressure monitor control unit Model 218
as of model year 2015
with code 475 (Tire pressure monitoring system) Schrader
N88		 GF40.15-P-5124FQA
  Component description for chassis gateway control unit Model 218
as of model year 2015
with code 23P (Driving Assistance package)
N93/7		 GF54.21-P-1010FQ
  Component description for fully integrated transmission control unit Model 218 with transmission 725.0
as of model year 2015
Y38n4		 GF27.60-P-5165ANB
Model 218 with transmission 722.9 (except 722.931)
as of model year 2015
Y38n4		 GF27.60-P-5165AHQ
Model 218 with transmission 722.931
as of model year 2015
Y38n4		 GF27.60-P-5165AHR
