| A0 |
Color code key |
72L |

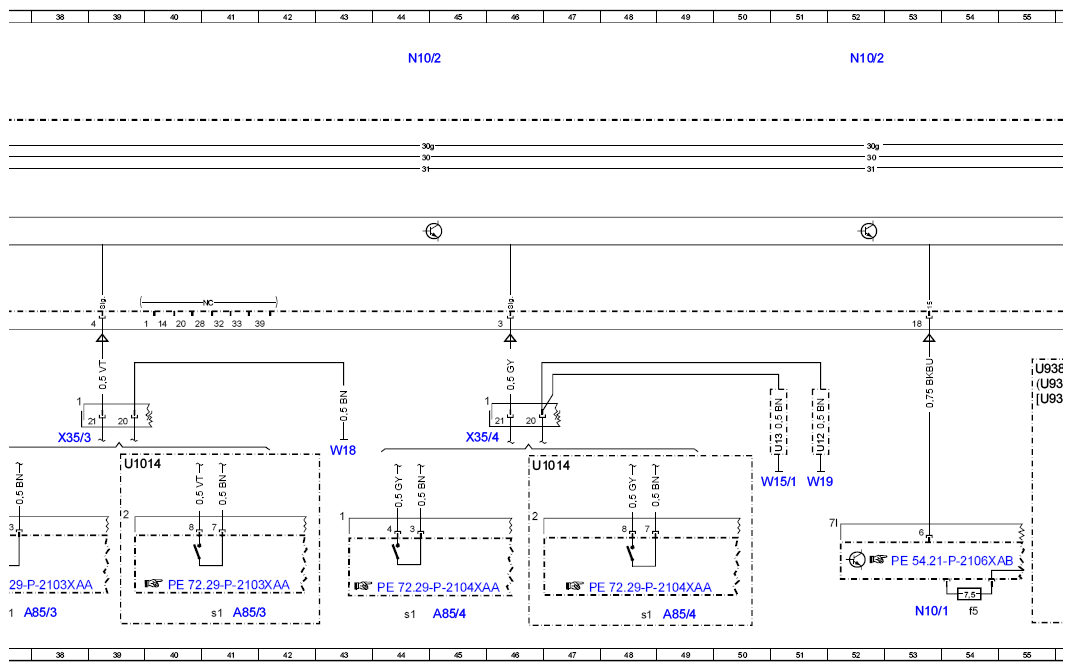

| A85/3 |
Left rear door lock |
38L |
| A85/3 |
Left rear door lock |
41L |
| A85/3s1 |
Left rear door rotary tumbler switch |
37L |
| A85/3s1 |
Left rear door rotary tumbler switch |
41L |
| A85/4 |
Right rear door lock |
45L |
| A85/4 |
Right rear door lock |
49L |
| A85/4s1 |
Right rear door rotary tumbler switch |
44L |
| A85/4s1 |
Right rear door rotary tumbler switch |
48L |
| CAN B |
Interior CAN |
12K |
| Code 4U7 |
Start/stop voltage dip protection |
1H |
| Code B03 |
ECO start/stop function |
1G |

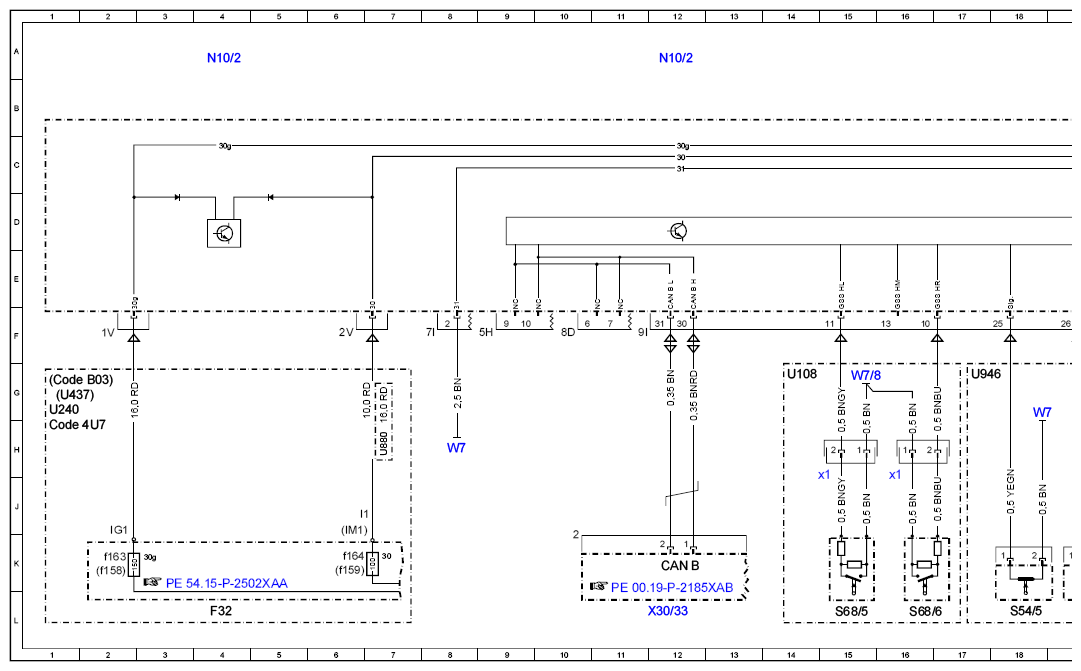

| F32 |
Front electrical prefuse box |
63L |
| F32 |
Front electrical prefuse box |
4L |
| F32f158 |
Prefuse 158 |
2K |
| F32f159 |
Prefuse 159 |
6K |
| F32f163 |
Prefuse 163 |
2K |
| F32f164 |
Prefuse 164 |
6K |

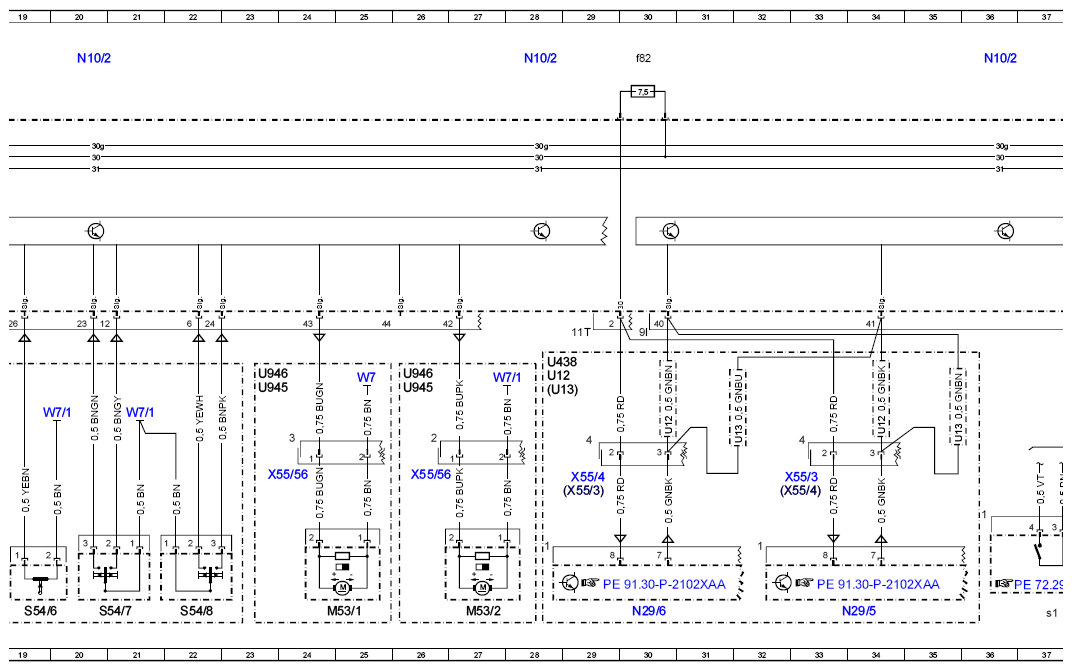

| M53/1 |
Left rear head restraint seat adjustment motor |
25L |
| M53/2 |
Right rear head restraint seat adjustment motor |
27L |
| N10/1 |
Front SAM control unit with fuse and relay module |
53L |
| N10/1f5 |
Fuse 5 |
54L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
12A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
20A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
28A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
36A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
44A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
52A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
60A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
4A |
| N10/2f82 |
Fuse 82 |
30A |
| N29/5 |
Left front seat ventilation blower regulator |
34L |
| N29/6 |
Right front seat ventilation blower regulator |
30L |

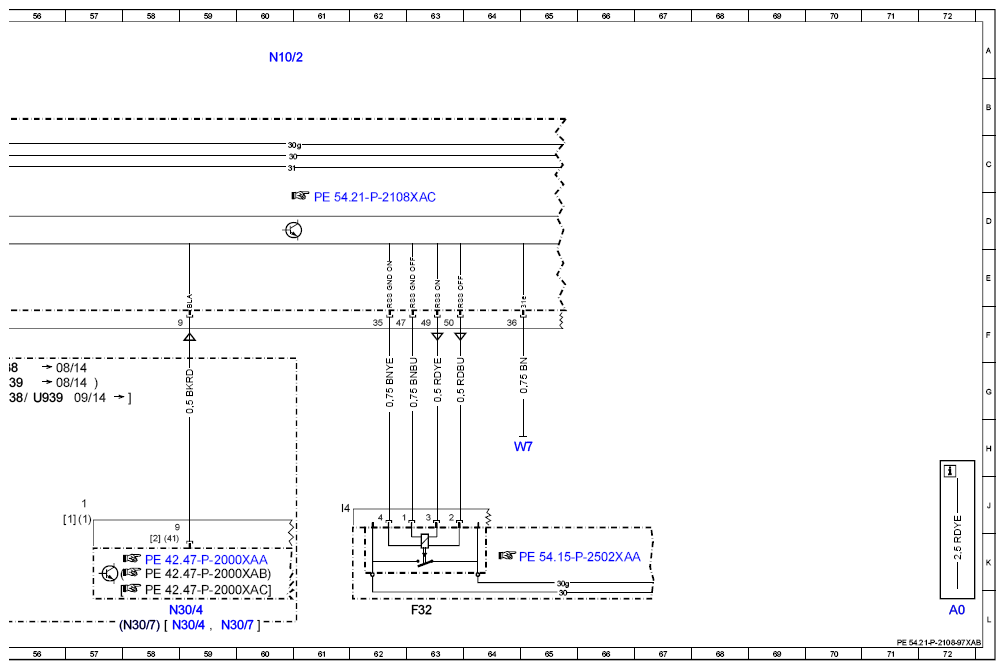

| N30/4 |
Electronic Stability Program control unit |
58L |
| N30/4 |
Electronic Stability Program control unit |
59L |
| N30/7 |
Premium Electronic Stability Program control unit |
58L |
| N30/7 |
Premium Electronic Stability Program control unit |
59L |
| S54/5 |
Left rear backrest inclination switch |
18L |
| S54/6 |
Right rear backrest inclination switch |
19L |
| S54/7 |
Left rear backrest lock switch |
20L |
| S54/8 |
Right rear backrest lock switch |
22L |
| S68/5 |
Left rear seat belt buckle switch |
15L |
| S68/5x1 |
Left rear seat belt buckle switch electrical connector |
15J |
| S68/6 |
Right rear seat belt buckle switch |
16L |
| S68/6x1 |
Right rear seat belt buckle switch electrical connector |
16J |
| U1014 |
Valid for Great Britain |
39H |
| U1014 |
Valid for Great Britain |
46H |
| U108 |
Valid for rear seat belt buckles |
14G |
| U12 |
Valid for left-hand drive vehicles |
30H |
| U12 |
Valid for left-hand drive vehicles |
28G |
| U12 |
Valid for left-hand drive vehicles |
34H |
| U12 |
Valid for left-hand drive vehicles |
51H |
| U13 |
Valid for right-hand drive vehicles |
28G |
| U13 |
Valid for right-hand drive vehicles |
32H |
| U13 |
Valid for right-hand drive vehicles |
36H |
| U13 |
Valid for right-hand drive vehicles |
51H |
| U240 |
Valid for all except ECO start/stop function |
1G |
| U437 |
Valid without code (4U7) Start/stop voltage dip protection |
1G |
| U438 |
Valid for seat ventilation |
28G |
| U880 |
Valid for diesel engine 642 |
7H |
| U938 |
Valid for ESP Basic |
55G |
| U938 |
Valid for ESP Basic |
55G |
| U939 |
Valid for ESP Premium |
55G |
| U939 |
Valid for ESP Premium |
56G |
| U945 |
Valid for rear comfort seat |
23G |
| U945 |
Valid for rear comfort seat |
26G |
| U946 |
Valid for folding rear backrest |
17G |
| U946 |
Valid for folding rear backrest |
23G |
| U946 |
Valid for folding rear backrest |
26G |
| W15/1 |
Right footwell ground point |
50J |
| W18 |
Left front seat crossmember ground point |
43H |
| W19 |
Right front seat crossmember ground point |
51J |
| W7 |
Right rear wheel well ground point |
8H |
| W7 |
Right rear wheel well ground point |
18G |
| W7 |
Right rear wheel well ground point |
25G |
| W7 |
Right rear wheel well ground point |
64H |
| W7/1 |
Right taillamp trunk ground point |
19G |
| W7/1 |
Right taillamp trunk ground point |
21G |
| W7/1 |
Right taillamp trunk ground point |
27G |
| W7/8 |
Right wheel house trunk ground point |
15G |
| X30/33 |
Right vehicle floor interior CAN voltage distributor electrical connector |
12L |
| X35/3 |
Left rear door electrical connector |
38H |
| X35/4 |
Right rear door electrical connector |
45H |
| X55/3 |
Driver seat connector block |
29J |
| X55/3 |
Driver seat connector block |
33J |
| X55/4 |
Front passenger seat connector block |
29J |
| X55/4 |
Front passenger seat connector block |
33J |
| X55/56 |
Rear head restraint adjustment motor electrical connector |
24J |
| X55/56 |
Rear head restraint adjustment motor electrical connector |
26J |
