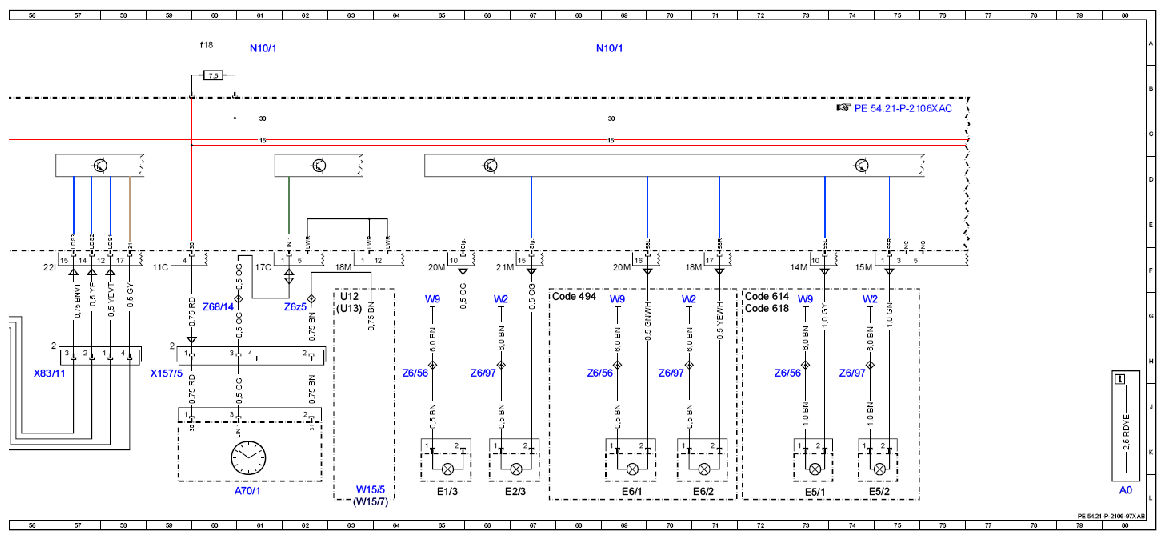

| A0 |
Color code key |
80L |

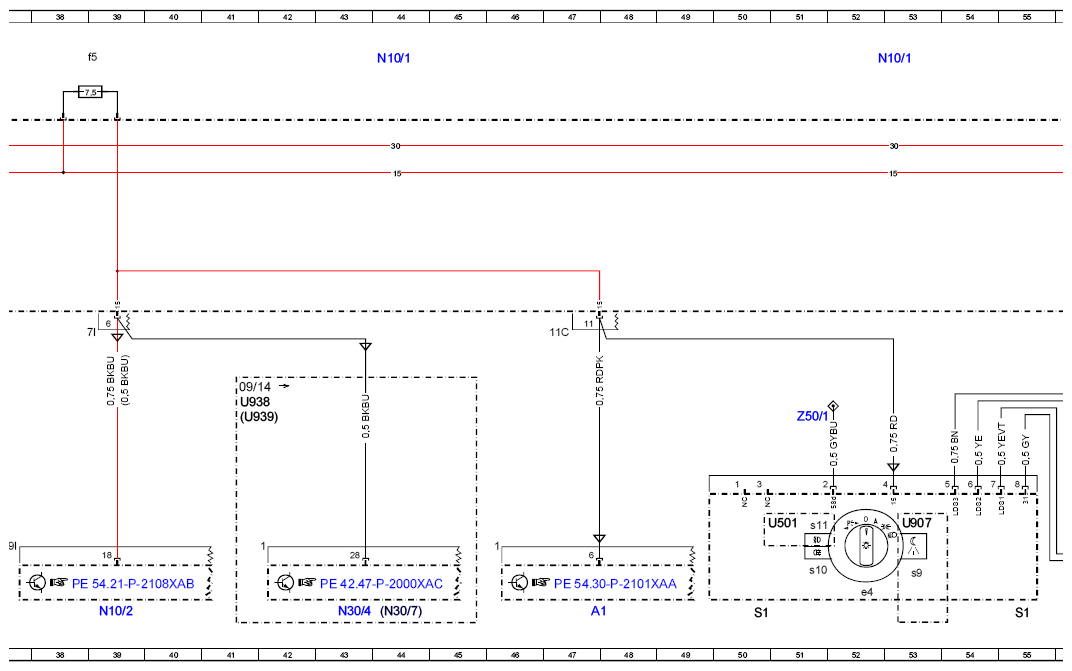

| A1 |
Instrument cluster |
47L |
| A70/1 |
Analog clock |
61L |

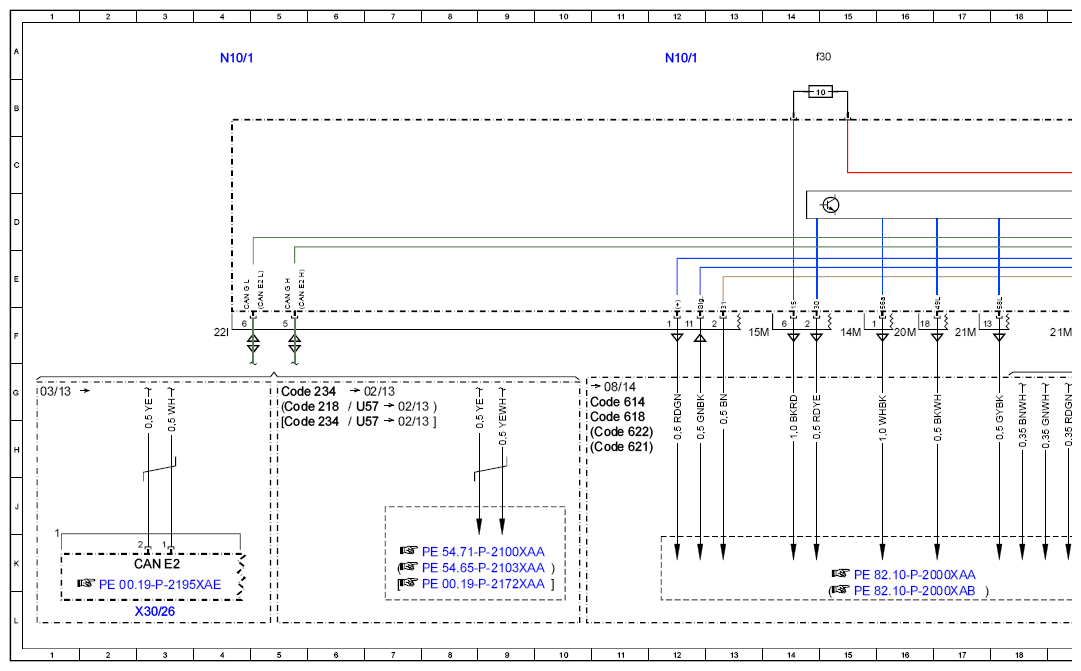

| CAN E2 |
Chassis CAN 2 |
3K |
| Code 218 |
Backup camera |
5G |
| Code 234 |
Blind spot assist |
5G |
| Code 234 |
Blind spot assist |
5H |
| Code 494 |
USA version |
67G |
| Code 614 |
Bi-xenon headlamp unit |
10G |
| Code 614 |
Bi-xenon headlamp unit |
72G |

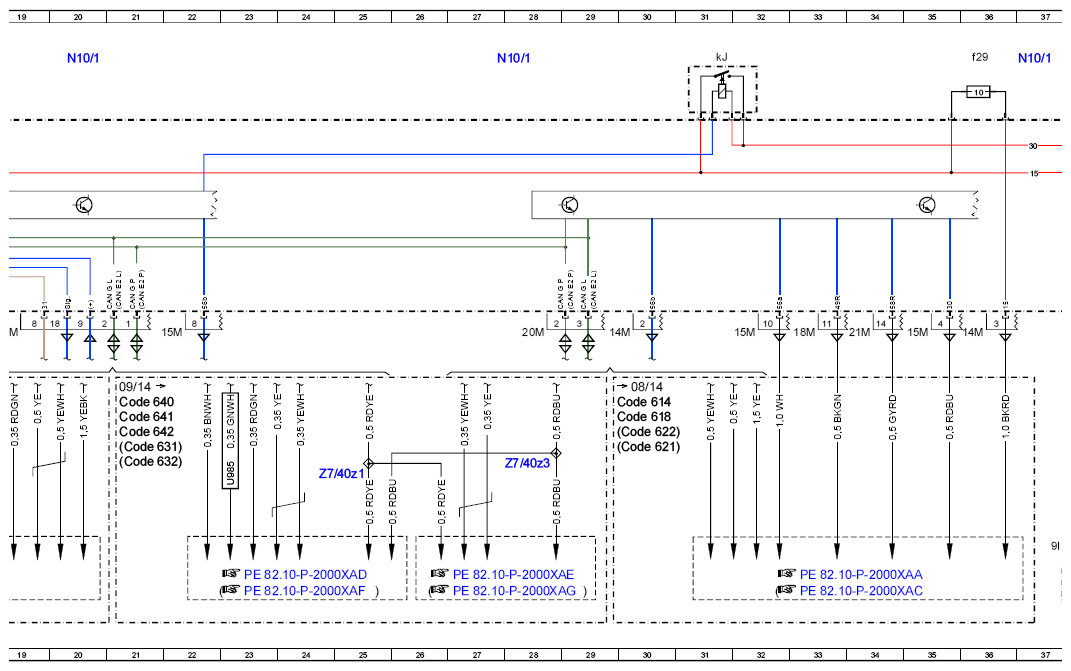

| Code 614 |
Bi-xenon headlamp unit |
29G |
| Code 618 |
Bi-xenon headlamps |
10H |
| Code 618 |
Bi-xenon headlamps |
29H |
| Code 618 |
Bi-xenon headlamps |
72G |
| Code 621 |
Intelligent Light System (left-hand traffic) |
10H |
| Code 621 |
Intelligent Light System (left-hand traffic) |
29H |
| Code 622 |
Intelligent Light System (right-hand traffic) |
10H |
| Code 622 |
Intelligent Light System (right-hand traffic) |
29H |
| Code 631 |
A11-LED headlamps (without ILS), daytime running lamps integrated in headlamp, for left-hand traffic |
21H |
| Code 632 |
A11-LED headlamps (without ILS), daytime running lamps integrated in headlamp, for right-hand traffic |
21H |
| Code 640 |
All-LED USA incl. ACTIVE MULTI BEAM LED |
21G |
| Code 641 |
All-LED headlamps incl. ILS and ACTIVE MULTI BEAM LED (USP!) incl. new light design, dynamic LED for left-hand traffic |
21H |
| Code 642 |
All-LED headlamps incl. ILS and ACTIVE MULTI BEAM LED (USP!) incl. new light design, dynamic LED for right-hand traffic |
21H |
| E1/3 |
Left daytime running lamps headlamp |
65L |
| E2/3 |
Right daytime running lamps headlamp |
67L |
| E5/1 |
Left fog lamp |
73L |
| E5/2 |
Right fog lamp |
74L |
| E6/1 |
Left front side-marker lamp |
69L |
| E6/2 |
Right front side-marker lamp |
71L |
| N10/1 |
Front SAM control unit with fuse and relay module |
4A |
| N10/1 |
Front SAM control unit with fuse and relay module |
20A |
| N10/1 |
Front SAM control unit with fuse and relay module |
28A |
| N10/1 |
Front SAM control unit with fuse and relay module |
44A |
| N10/1 |
Front SAM control unit with fuse and relay module |
61A |
| N10/1 |
Front SAM control unit with fuse and relay module |
69A |
| N10/1 |
Front SAM control unit with fuse and relay module |
53A |
| N10/1 |
Front SAM control unit with fuse and relay module |
12A |
| N10/1 |
Front SAM control unit with fuse and relay module |
37A |
| N10/1f18 |
Fuse 18 |
60A |
| N10/1f29 |
Fuse 29 |
36A |
| N10/1f30 |
Fuse 30 |
14A |
| N10/1f5 |
Fuse 5 |
39A |
| N10/1kJ |
Circuit 15 relay |
31A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
39L |
| N30/4 |
Electronic Stability Program control unit |
43L |
| N30/7 |
Premium Electronic Stability Program control unit |
44L |
| S1 |
Exterior lights switch |
50L |
| S1 |
Exterior lights switch |
55L |
| S1e4 |
Switch illumination |
52L |
| S1s10 |
Rear fog lamp button |
51K |
| S1s11 |
Front fog lamp button |
51J |
| S1s9 |
Night View Assist button |
53K |
| U12 |
Valid for left-hand drive vehicles |
63G |
| U13 |
Valid for right-hand drive vehicles |
63G |
| U501 |
Valid for xenon headlamps |
50J |
| U57 |
Valid for model 218.9 |
6G |
| U57 |
Valid for model 218.9 |
6H |
| U907 |
Valid for Night View Assist |
53J |
| U938 |
Valid for ESP Basic |
41G |
| U939 |
Valid for ESP Premium |
41H |
| U985 |
Not valid for AIRMATIC |
23J |
| W15/5 |
Left front footwell ground point |
63L |
| W15/7 |
Right front footwell ground point |
63L |
| W2 |
Right front ground point at lamp unit |
66G |
| W2 |
Right front ground point at lamp unit |
70G |
| W2 |
Right front ground point at lamp unit |
74G |
| W9 |
Left front ground point (at lamp unit) |
65G |
| W9 |
Left front ground point (at lamp unit) |
69G |
| W9 |
Left front ground point (at lamp unit) |
73G |
| X157/5 |
Right front door ambiance illumination electrical connector |
59H |
| X30/26 |
Vehicle floor chassis CAN 2 (CAN E2) potential distributor electrical connector |
3L |
| X83/11 |
Circuit 56 exterior lights switch electrical connector |
56H |
| Z50/1 |
Circuit 58d instrument panel connector sleeve |
51G |
| Z6/56 |
Circuit 31 connector sleeve |
64H |
| Z6/56 |
Circuit 31 connector sleeve |
68H |
| Z6/56 |
Circuit 31 connector sleeve |
73H |
| Z6/97 |
Right lamp unit circuit 31 connector sleeve |
66H |
| Z6/97 |
Right lamp unit circuit 31 connector sleeve |
70H |
| Z6/97 |
Right lamp unit circuit 31 connector sleeve |
74H |
| Z68/14 |
Cockpit LIN bus connector sleeve |
60G |
| Z6z5 |
Circuit 31 connector sleeve |
62G |
| Z7/40z1 |
Tml. 30 connector sleeve |
25J |
| Z7/40z3 |
Tml. 30 connector sleeve |
28H |
