| A0 |
Color code key |
56L |
| A40/11 |
Multifunction camera |
32L |
| A40/13 |
Stereo multifunction camera |
32L |

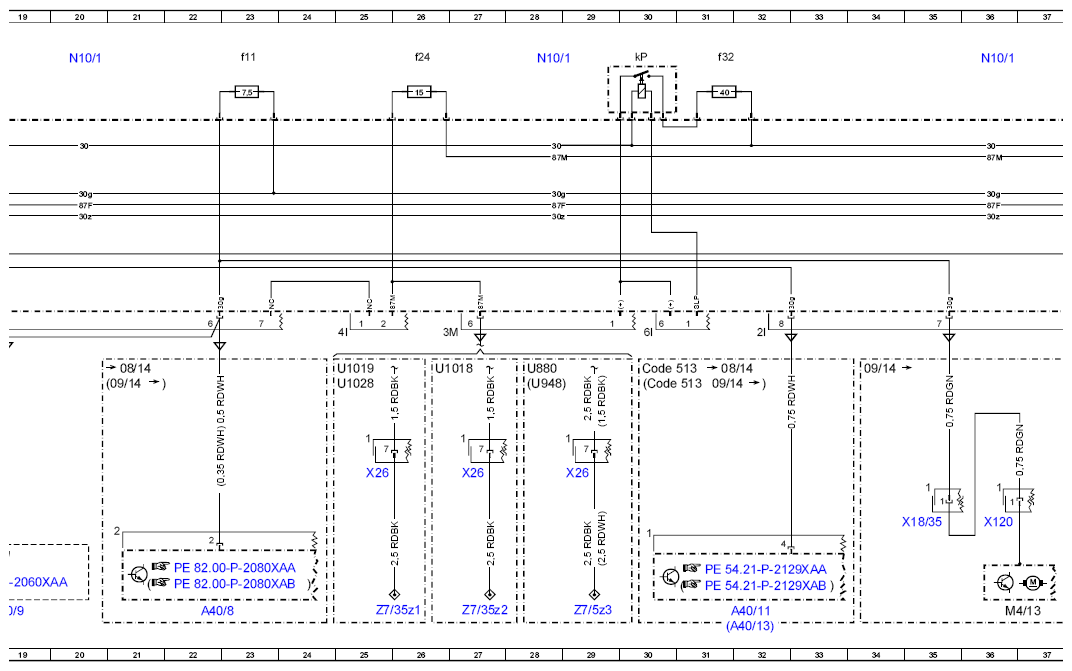

| A40/8 |
Audio/COMAND display |
22L |
| A40/9 |
Audio/COMAND control panel |
19L |

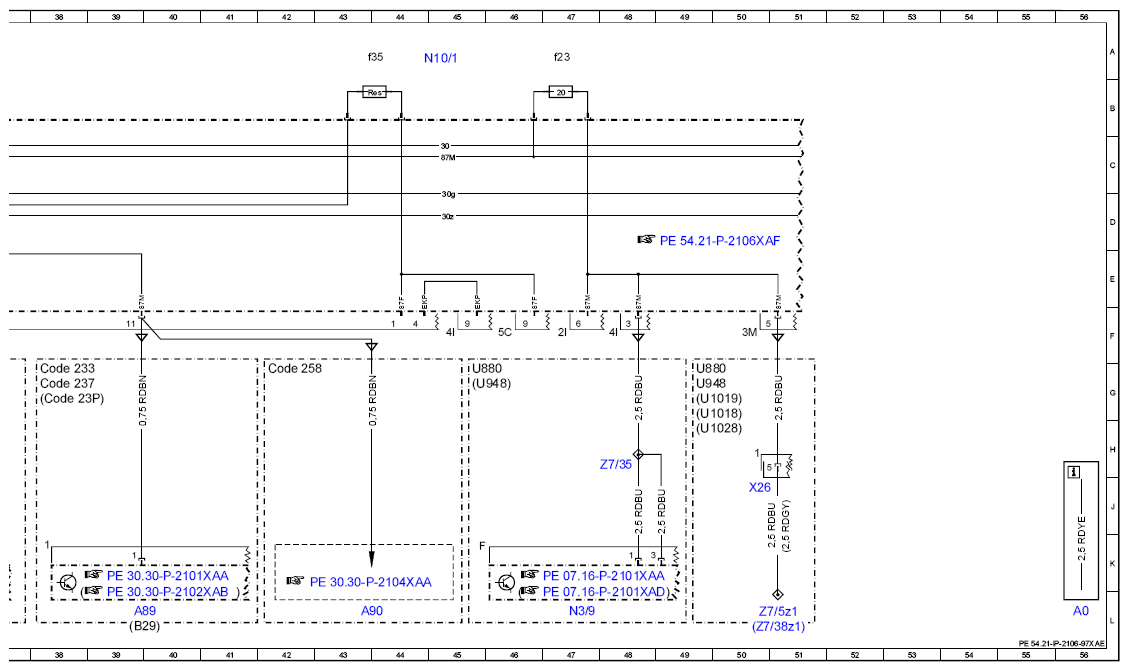

| A89 |
DISTRONIC electric controller unit |
39L |
| A90 |
COLLISION PREVENTION ASSIST controller unit |
43L |
| B29 |
Front long-range radar sensor |
39L |
| Code 233 |
DISTRONIC PLUS |
38G |
| Code 237 |
Active Blind Spot Assist |
38G |
| Code 23P |
Driver assistance package |
38G |
| Code 258 |
COLLISION PREVENTION ASSIST Plus |
42G |
| Code 4U7 |
Start/stop voltage dip protection |
1H |
| Code 513 |
Speed Limit Assist |
30G |
| Code 513 |
Speed Limit Assist |
30G |
| Code 610 |
Night View Assist |
13G |
| Code B03 |
ECO start/stop function |
1G |

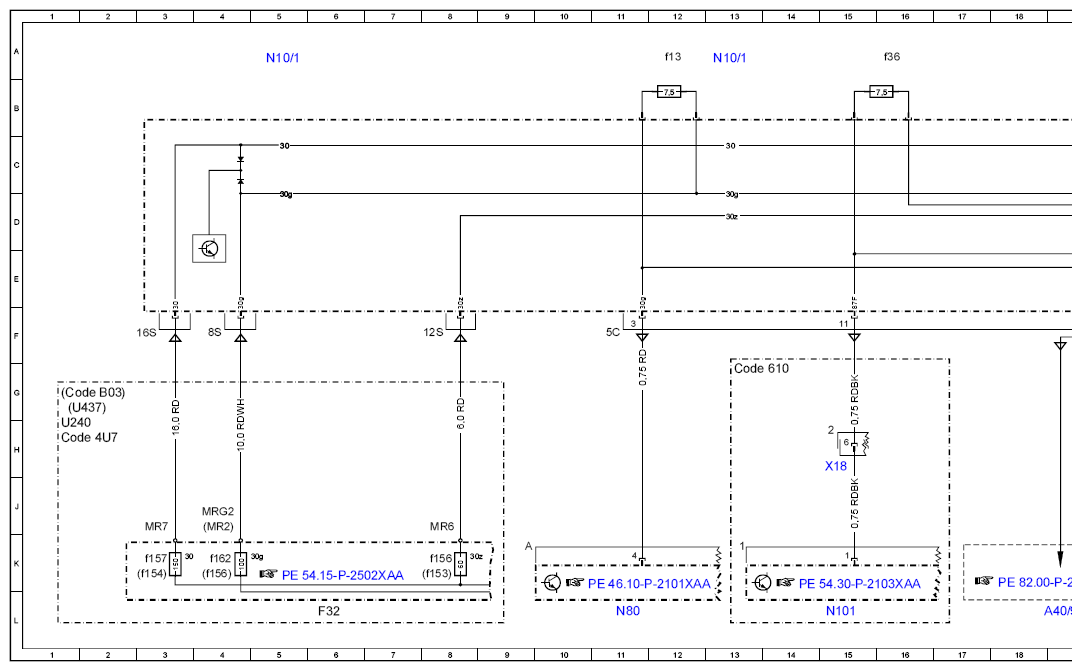

| F32 |
Front electrical prefuse box |
6L |
| F32f153 |
Prefuse 153 |
8K |
| F32f154 |
Prefuse 154 |
3K |
| F32f156 |
Prefuse 156 |
8K |
| F32f156 |
Prefuse 156 |
4K |
| F32f157 |
Prefuse 157 |
3K |
| F32f162 |
Prefuse 162 |
4K |
| M4/13 |
COMAND fan motor |
36L |
| N10/1 |
Front SAM control unit with fuse and relay module |
28A |
| N10/1 |
Front SAM control unit with fuse and relay module |
5A |
| N10/1 |
Front SAM control unit with fuse and relay module |
13A |
| N10/1 |
Front SAM control unit with fuse and relay module |
20A |
| N10/1 |
Front SAM control unit with fuse and relay module |
36A |
| N10/1 |
Front SAM control unit with fuse and relay module |
45A |
| N10/1f11 |
Fuse 11 |
23A |
| N10/1f13 |
Fuse 13 |
12A |
| N10/1f23 |
Fuse 23 |
47A |
| N10/1f24 |
Fuse 24 |
26A |
| N10/1f32 |
Fuse 32 |
31A |
| N10/1f35 |
Fuse 35 |
43A |
| N10/1f36 |
Fuse 36 |
16A |
| N10/1kP |
Secondary air injection relay |
30A |
| N101 |
Night vision assist control unit |
15L |
| N3/9 |
CDI control unit |
47L |
| N80 |
Steering column module control unit |
11L |
| U1018 |
Valid for gasoline engine 276 |
26G |
| U1018 |
Valid for gasoline engine 276 |
49G |
| U1019 |
Valid for gasoline engine 278 |
25G |
| U1019 |
Valid for gasoline engine 278 |
49G |
| U1028 |
Valid for engine 157 |
25G |
| U1028 |
Valid for engine 157 |
49H |
| U240 |
Valid for all except ECO start/stop function |
1H |
| U437 |
Valid without code (4U7) Start/stop voltage dip protection |
1G |
| U880 |
Valid for diesel engine 642 |
28G |
| U880 |
Valid for diesel engine 642 |
45G |
| U880 |
Valid for diesel engine 642 |
49G |
| U948 |
Valid for diesel engine 651 |
28G |
| U948 |
Valid for diesel engine 651 |
45G |
| U948 |
Valid for diesel engine 651 |
49G |
| X120 |
Radio fan electrical connector |
36J |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
15H |
| X18/35 |
Instrument panel and vehicle floor electrical connector |
35J |
| X26 |
Interior and engine wiring harness electrical connector |
29H |
| X26 |
Interior and engine wiring harness electrical connector |
25H |
| X26 |
Interior and engine wiring harness electrical connector |
27H |
| X26 |
Interior and engine wiring harness electrical connector |
50J |
| Z7/35 |
Circuit 87 M1e connector sleeve |
48H |
| Z7/35z1 |
Circuit 87 M1e connector sleeve |
26L |
| Z7/35z2 |
Circuit 87 M1e connector sleeve |
27L |
| Z7/38z1 |
Circuit 87 M1i connector sleeve |
51L |
| Z7/5z1 |
Circuit 87 connector sleeve |
51L |
| Z7/5z3 |
Circuit 87 connector sleeve |
29L |
