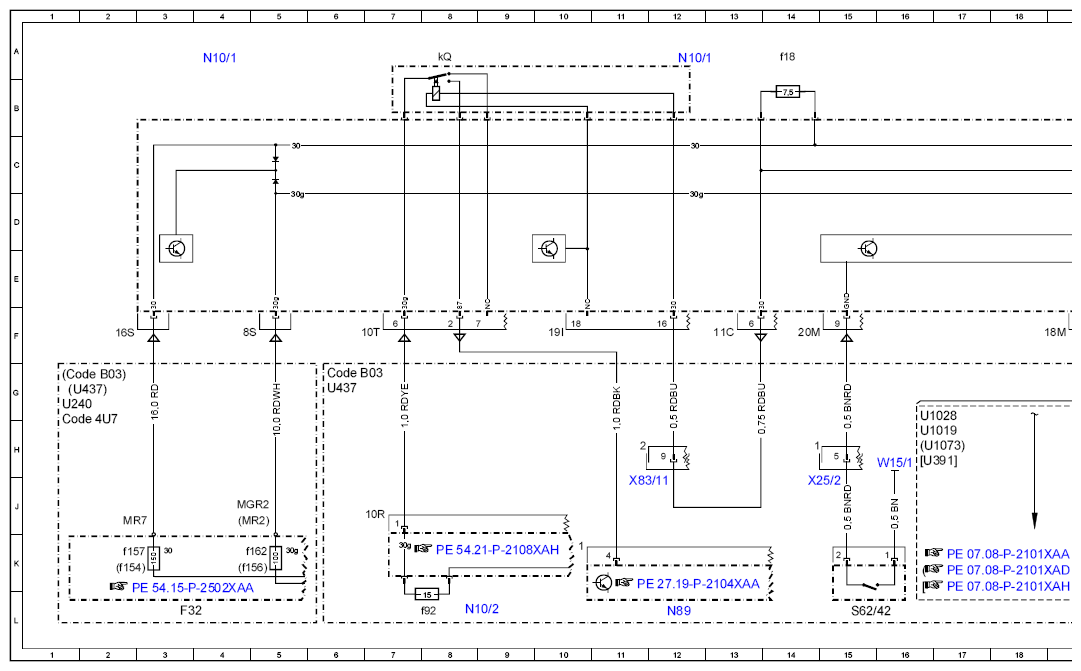

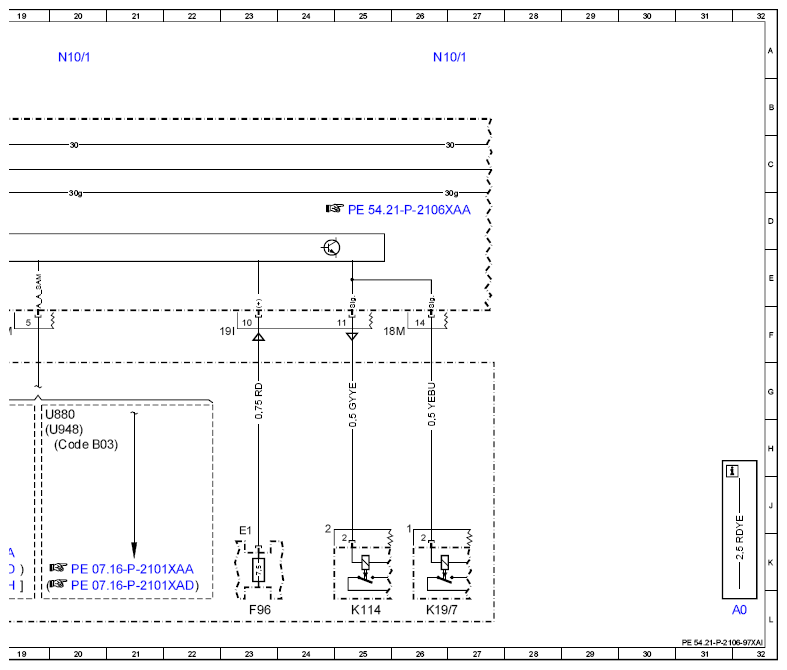

| A0 |
Color code key |
32L |
| Code 4U7 |
Start/stop voltage dip protection |
1H |
| Code B03 |
ECO start/stop function |
6G |
| Code B03 |
ECO start/stop function |
1G |
| Code B03 |
ECO start/stop function |
20H |
| F32 |
Front electrical prefuse box |
3L |
| F32f154 |
Prefuse 154 |
2K |
| F32f156 |
Prefuse 156 |
4K |
| F32f157 |
Prefuse 157 |
2K |
| F32f162 |
Prefuse 162 |
5K |
| F96 |
Additional battery circuit 30 fuse |
23L |
| K114 |
ECO start/stop function additional battery relay |
25L |
| K19/7 |
Decoupling relay |
26L |
| N10/1 |
Front SAM control unit with fuse and relay module |
4A |
| N10/1 |
Front SAM control unit with fuse and relay module |
12A |
| N10/1 |
Front SAM control unit with fuse and relay module |
26A |
| N10/1 |
Front SAM control unit with fuse and relay module |
20A |
| N10/1f18 |
Fuse 18 |
14A |
| N10/1kQ |
Backup relay |
8A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
8L |
| N10/2f92 |
Fuse 92 |
8L |
| N89 |
Transmission oil auxiliary pump control unit |
12L |
| S62/42 |
Right engine hood contact switch |
15L |
| U1019 |
Valid for gasoline engine 278 |
16H |
| U1028 |
Valid for engine 157 |
16G |
| U1073 |
Valid for gasoline engine 276.9 |
16H |
| U240 |
Valid for all except ECO start/stop function |
1G |
| U391 |
Valid for gasoline engine 276.8 |
16H |
| U437 |
Valid without code (4U7) Start/stop voltage dip protection |
6G |
| U437 |
Valid without code (4U7) Start/stop voltage dip protection |
1G |
| U880 |
Valid for diesel engine 642 |
19G |
| U948 |
Valid for diesel engine 651 |
19H |
| W15/1 |
Right footwell ground point |
16H |
| X25/2 |
Engine compartment/interior electrical connector |
15J |
| X83/11 |
Circuit 56 exterior lights switch electrical connector |
12J |
