Remove/install front backrest cover frame - AR91.10-P-1911EC

MODEL 204.3, 207

Shown on right front seat

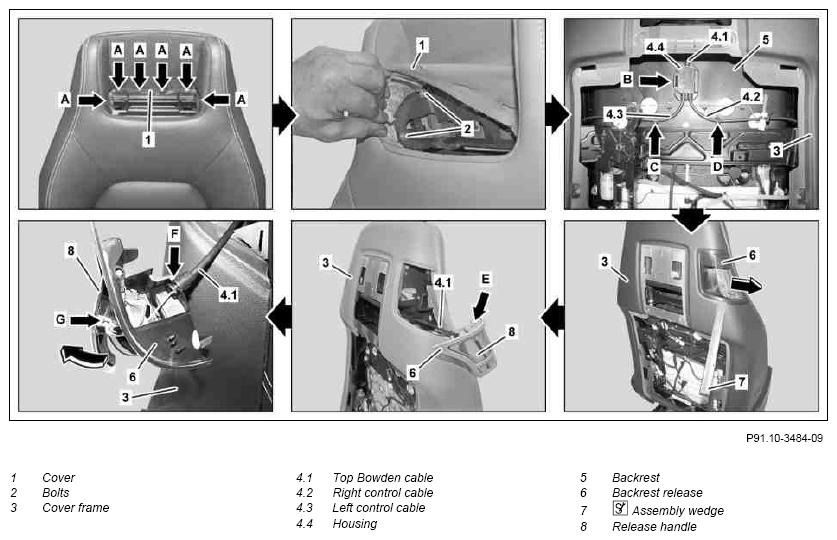

Fig 1: Identifying Front Backrest Cover Frame Remove/Install Components - Shown On Right Front Seat
G10003671Courtesy of MERCEDES-BENZ USA

Shown on right front seat

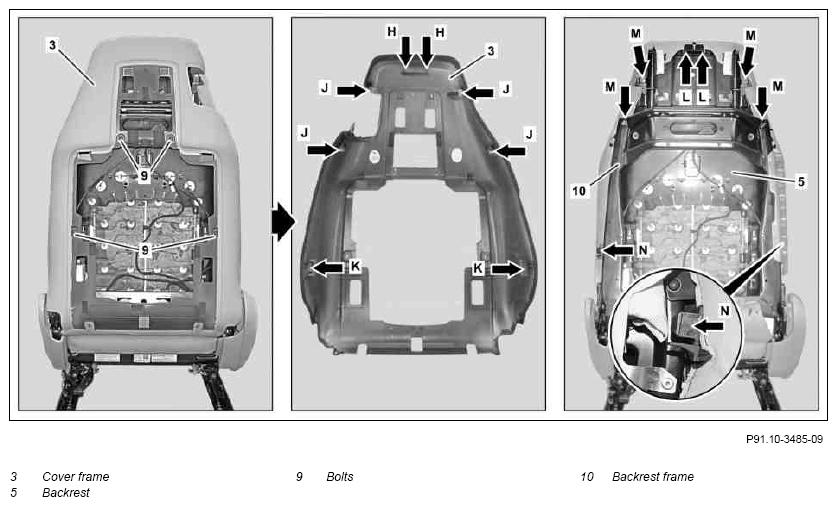

Fig 2: Identifying Front Backrest Cover Frame Remove/Install Components - Shown On Right Front Seat
G10003672Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Remove front seat head restraint guide   AR91.16-P-0050EC
2 Unhook cover (1) out of hooks (arrows A) in area of head restraint
3 Carefully pull cover (1) to one side
4 Remove bolts (2)
5 Unclip housing (4.4) from backrest (5) (arrow B) and remove
6 Unclip left Bowden cable (4.3) from backrest (5) (arrow C)
7 Unclip right Bowden cable (4.2) from backrest (5) (arrow D)
8 Unclip backrest release (6) using assembly wedge (7), as shown, at catch hook (arrow E) and pull out of cover frame (3) SPECIAL TOOL Assembly wedge Figure
9 Unhook top Bowden cable (4.1) out of backrest release (6) (arrow F)
10 Swing out release handle (8) and unhook top Bowden cable (4.1) (arrow G)
11 Remove backrest release (6)
12 Unclip driver seat lumbar support pneumatic pump or front passenger seat lumbar support pneumatic pump at cover frame (3) On vehicles with code (241) Electrically adjustable front passenger seat with memory function or with code (275) Memory package (driver seat, steering column, mirrors)
INSTALLATION IMPORTANT Observe installation position of driver seat lumbar support pneumatic pump or front passenger seat lumbar support pneumatic pump.

13 Remove screws/bolts (9) from backrest frame (10)
14 Release mounts (arrows K) from catch hooks (arrows N) INSTALLATION IMPORTANT Ensure that catch hooks (arrows N) are seated correctly in mounts (arrows K).
15 Pull out cover frame (3) at bottom far enough that cover frame (3) can be slid upward past catch hooks (arrows N)
16 Slide cover frame (3) upward and remove INSTALLATION IMPORTANT Ensure that hooks (H, J) are seated correctly in respective mounts (L, M).
17 Install in the reverse order
Fig 3: Identifying Mounting Wedge (110 589 03 59 00)
G10003673Courtesy of MERCEDES-BENZ USA
