Parking System Control Unit Component Description - GF54.65-P-5002RF

Model 205

up to model year 2019

with code 235 (Parking Pilot with PARKTRONIC)

Model 253 (except 253.99)

up to model year 2020

with code 235 (Parking Pilot with PARKTRONIC)

Shown on model 205.0

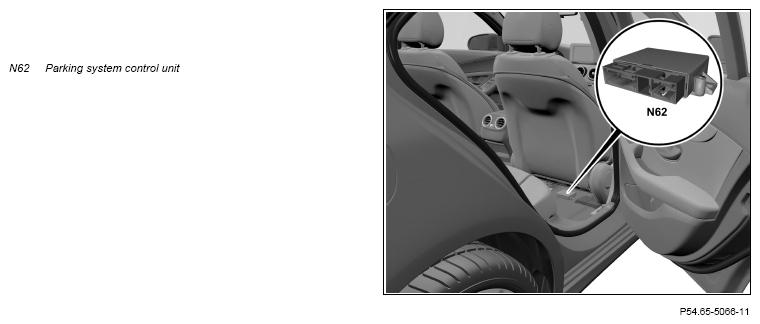

Location

The parking system control unit is located under the right front seat.

Tasks

The parking system control unit is responsible for the following tasks:

• Controlling functions
• Reading in of sensors and signals
• Evaluation of input factors
• Actuation of components
• Sending signals

Controlling functions

The parking system control unit controls the following functions:

• Parking system
• Active Park Assist

Reading in of sensors and signals

The input factors are read in via the following connections:

• Direct line
• Suspension FlexRay (Flex E)

Direct line

The signals from the following components are read via direct lines:

• Rear parking system display (A44/3) (function test)
• Left front outer parking system distance sensor (B8/1)
• Left front center parking system distance sensor (B8/2)
• Left front inner parking system distance sensor (B8/3)
• Right front inner parking system distance sensor (B8/4)
• Right front center parking system distance sensor (B8/5)
• Right front outer parking system distance sensor (B8/6)
• Outer right rear parking system distance sensor (B8/7)
• Inner right rear parking system distance sensor (B8/8)
• Inner left rear parking system distance sensor (B8/9)
• Outer left rear parking system distance sensor (B8/10)
• Left rear center parking system distance sensor (B8/11)
• Right rear center parking system distance sensor (B8/12)

Chassis FlexRay

The following signals, among others, are read in via chassis FlexRay:

• Terminal status of terminal 15
• Engine running or drive train operational
• Wheel speed and wheel rotation direction
• Vehicle speed
• Parking system button status (S6/1s3)
• Reverse gear status
• Ambient brightness
• Switch position of combination switch (S4)
• Left multifunction steering wheel button group signal (S110)
• Steering torque of electric power steering
• Steering gear position
• Brake system status information
• Parking system status

Evaluation of input factors

The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.

Actuation of components

The following components are actuated by the parking system control unit via direct lines:

Sending signals

The parking system control unit sends the following information or requests over the chassis FlexRay:

• Request to show the parking system display in the multifunction display
• Request to display messages or issue a warning tone
• Rear parking system indicator
• Parking system distance sensors
• Parking system status indication request
• Request to steer
• Information on distance up to obstacle (remaining distance up to obstacle in direction of travel)

Wiring diagram for PARKTRONIC system (PTS) control unit

Model 205 up to model year 2019 with code 235 (Parking Pilot with PARKTRONIC) Control unit N62 Model 253 (except 253.99) up to model year 2020 with code 235 (Parking Pilot with PARKTRONIC) Control unit N62

PE54.65-P-2101-97FBA
