Trunk Lid/Liftgate Control Drive Unit, Basic Function - GF80.45-P-2001A
Model all (CAR)
with code 881 (Remote boot-lid closing)
Model all (CAR)
with code 890 (Automatic rear-end door)

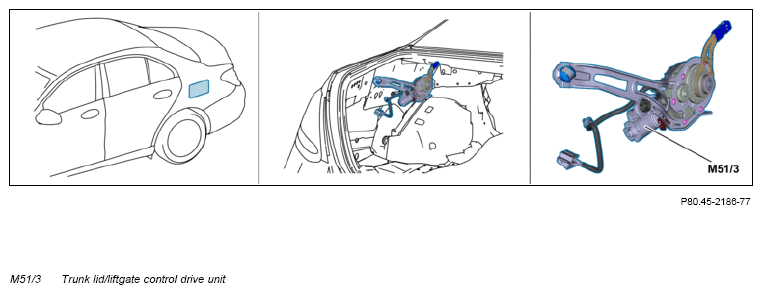

Vehicle with remote trunk closing
Location
The trunk lid/tailgate control drive unit is located on the left in the trunk between the hinge bracket and fender.
Vehicle with EASY-PACK liftgate, shown on rotary pillar drive version

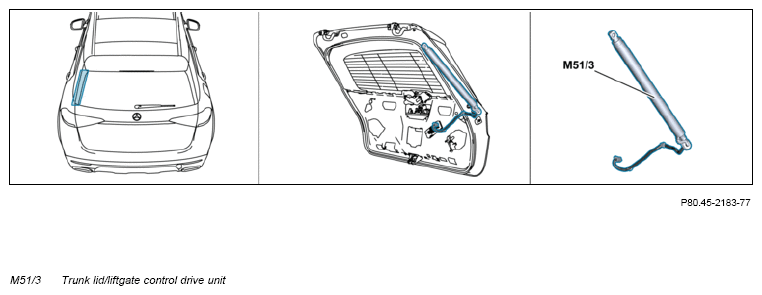

Vehicle with EASY-PACK liftgate, shown on version transmission motor
Location
Depending on the design version, the trunk lid/liftgate control drive unit is installed either in the area of the D-pillar on the roof frame or instead on one or both of the pneumatic springs.
For vehicles with a large and thus comparatively heavy liftgate, two liftgate control drive units are installed instead of the pneumatic springs. Special design considerations can also lead to two liftgate control drive units being required instead of the pneumatic springs.
Task
The trunk lid/tailgate control drive unit moves the trunk lid or tailgate.
The following components are integrated in the trunk lid/tailgate control drive unit:
- Trunk lid/liftgate control Hall sensor (position monitoring)
- Trunk lid/liftgate control electric motor (drive)
The trunk lid/liftgate control drive unit is actuated by the control unit for the trunk lid/liftgate control.
