Headlamp Control Unit, Component Description - GF82.10-P-2020RFM
Model 205
as of model year 2019
with code 631 (Static LED headlamps, left-hand traffic)
Model 205
as of model year 2019
with code 632 (Headlamps, LED, static, right-side traffic)
Model 205
as of model year 2019
with code 640 (High-performance LED)
Model 205
as of model year 2019
with code 641 (Dynamic LED headlamps, left-hand traffic)
Model 205
as of model year 2019
with code 642 (Dynamic LED headlamps, right-hand traffic)
Model 253 (except 253.99)
as of model year 2020
with code 631 (Static LED headlamps, left-hand traffic)
Model 253 (except 253.99)
as of model year 2020
with code 632 (Headlamps, LED, static, right-side traffic)
Model 253 (except 253.99)
as of model year 2020
with code 640 (High-performance LED)
Model 253 (except 253.99)
as of model year 2020
with code 641 (Dynamic LED headlamps, left-hand traffic)
Model 253 (except 253.99)
as of model year 2020
with code 642 (Dynamic LED headlamps, right-hand traffic)
Model 253.99
with code 631 (Static LED headlamps, left-hand traffic)
Model 253.99
with code 632 (Headlamps, LED, static, right-side traffic)

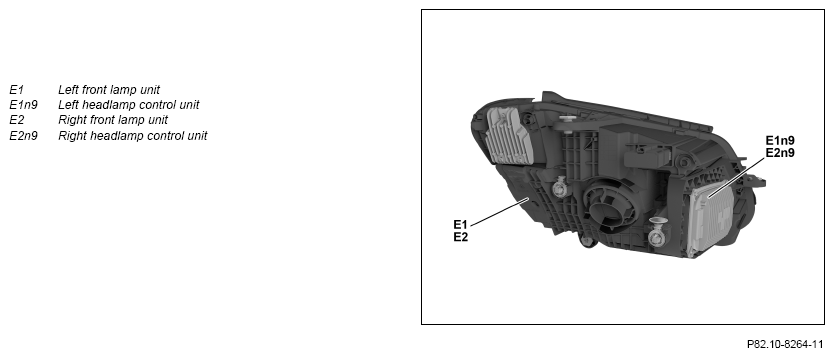

Shown with code 631 (Static LED headlamps for left-hand traffic), or code 632 (Static LED headlamps for right-hand traffic)

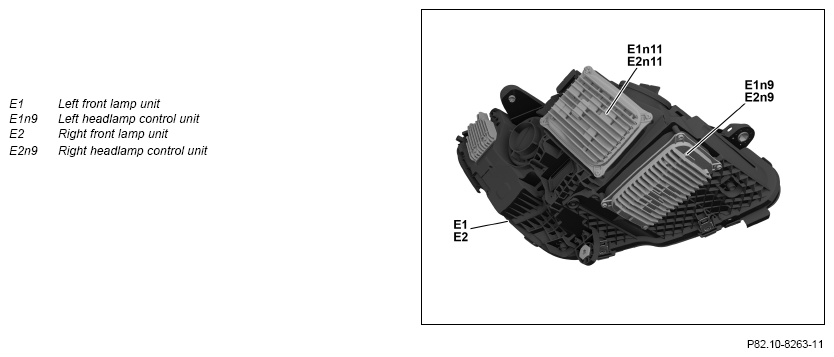

Shown with code 640 (High Performance LED), or code 641 (Dynamic LED headlamps for left-hand traffic), or code 642 (Dynamic LED headlamps for right-hand traffic)
Location
The headlamp control units are located on the reverse side of the respective front lamp units.
The headlamp control units are tightly screwed to the housing of the respective front lamp units. The headlamp control units are connected to the vehicle-side wiring harness via the front lamp units.
Tasks
The headlamp control units work in a master/slave combination and communicate with each other via the peripherals CAN (CAN PER). As the master, the left headlamp control unit synchronizes the right headlamp control unit.
The headlamp control units have the following tasks:
- Reading in of sensors and signals
- Evaluation of input factors
- Controlling functions
- Actuation of components
Reading in of sensors and signals
The input factors are read in via the following connections:
- Direct line
- Peripherals CAN
Direct line
The left headlamp control unit reads in the signals of the following components via direct lines:
- Temperature sensors in left front lamp unit
In model 205, Model 253 (except model 253.99), without code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping) and without code 483 (ADVANCED AGILITY package) and without code 489 (AIRMATIC) and without code 489 (AIR BODY CONTROL), the left headlamp control unit reads in the signals of the following sensors directly to evaluate the vehicle level:
- Left rear level sensor (B22/7)
- Left front level sensor (B22/8) (with code 640 (High Performance LED), or code 641 (LHD dynamic LED headlamp), or code 642 (RHD dynamic LED headlamp))
The right headlamp control unit reads in the signals of the following components via direct lines:
- Temperature sensors in right front lamp unit
Peripherals CAN
The headlamp control units read in the following function-relevant information via the peripherals CAN, among other things:
- Variant coding
- Terminal status of terminal 15
- Signal engine running
- Drive train operational signal
- Light function request
- Vehicle level (with code 489 (AIRMATIC), or code 489 (AIR BODY CONTROL) (left headlamp control unit only))
- Adaptive Highbeam Assist peripheral data (with code 640 (High Performance LED), or code 641 (LHD dynamic LED headlamp), or code 642 (RHD dynamic LED headlamp))
The functions that use these signals are described in the individual function descriptions (see appropriate block diagram or function schematic).
Evaluation of input factors
The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.
Controlling functions
The headlamp control units actuate the following functions:
- Position lights
- Turn signal lamp
- High beams and headlamp flasher output
- Automatic headlamp range adjustment (HRA) (left headlamp control unit only)
- Cornering lights (with CODE 640 (High-performance LED), or code 641 (Dynamic left-hand traffic LED headlamp), or code 642 (Dynamic right-hand traffic LED headlamp))
- Active light function (with code 640 (High Performance LED), or code 641 (LHD dynamic LED headlamp), or code 642 (RHD dynamic LED headlamp))
- Active light distribution (with code 640 (High Performance LED), or code 641 (LHD dynamic LED headlamp), or code 642 (RHD dynamic LED headlamp))
- Thermal management (temperature monitoring)
The front lamp units have temperature sensors that are used to sense the heat development in the areas actuated by the LEDs. The headlamp control units evaluate the signals from the temperature sensors. If the LEDs or the plastic housings of the front lamp units threaten to overheat as a consequence of high outside temperatures or high actuation currents, the headlamp control units reduce the LED actuation currents and thereby the level of heat development. The front lamp units are also ventilated. The active ventilation is also used at the same time for thawing or deicing at low outside temperatures.
Actuation of components
The actuation of the components takes place via the following connections:
- Direct line
- Peripherals CAN
Direct line
The left headlamp control unit actuates the following components via direct lines:
- Left high beam (E1e1) (with code 631 (Static left-hand traffic LED headlamp), or code 632 (Static right-hand traffic LED headlamp))
- Left low beam (E1e2) (with code 631 (Static left-hand traffic LED headlamp), or code 632 (Static right-hand traffic LED headlamp))
- Left front turn signal lamp (E1e5)
- Left front side marker light (E1e6) (with CODE 460 (Canada version), or code 494 (USA version))
- Left cornering light (E1e9) (with code 640 (High Performance LED), or code 641 (LHD dynamic LED headlamp), or code 642 (RHD dynamic LED headlamp))
- Left front ambient light (E1e23) (with code 640 (High Performance LED), or code 641 (LHD dynamic LED headlamp), or code 642 (RHD dynamic LED headlamp) except code 460 (Canada version), and except code 494 (USA version))
- Left position light and daytime running light (E1e27)
- Left front perimeter light 2 (E1e30) (with code 640 (High Performance LED), or code 641 (LHD dynamic LED headlamp), or code 642 (RHD dynamic LED headlamp))
- Left headlamp range adjustment actuator motor (E1m1)
- Fan motor 1 for left front lamp unit (E1m4)
The right headlamp control unit actuates the following components via direct lines:
- Right high beam (E2e1) (with code 631 (Static left-hand traffic LED headlamp), or code 632 (Static right-hand traffic LED headlamp))
- Right low beam (E2e2) (with code 631 (Static left-hand traffic LED headlamp), or code 632 (Static right-hand traffic LED headlamp))
- Right front turn signal lights (E2e5)
- Right front side marker light (E2e6) (with CODE 460 (Canada version), or code 494 (USA version))
- Right cornering light (E2e9) (with code 640 (High Performance LED), or code 641 (LHD dynamic LED headlamp), or code 642 (RHD dynamic LED headlamp))
- Right front ambient light (E2e23) (with code 640 (High Performance LED), or code 641 (LHD dynamic LED headlamp), or code 642 (RHD dynamic LED headlamp) except code 460 (Canada version), and except code 494 (USA version))
- Right position light and daytime running light (E2e27)
- Right front perimeter light 2 (E2e30) (with code 640 (High Performance LED), or code 641 (LHD dynamic LED headlamp), or code 642 (RHD dynamic LED headlamp))
- Right headlamp range adjustment actuator motor (E2m1)
- Fan motor 1 for right front lamp unit (E2m4)
Peripherals CAN
In vehicles with code 640 (High Performance LED), or code 641 (LHD dynamic LED headlamp), or code 642 (RHD dynamic LED headlamp), the left headlamp control unit transmits the requests for the light distribution of the high beam via the peripherals CAN to the left front LED matrix lamp unit control unit (E1n11) and to the right front LED matrix lamp unit control unit (E2n11).
The functions that use these signals are described in the individual function descriptions (see appropriate block diagram or function schematic).
| Exterior lights wiring diagram | Model 205 as of model year 2019 with code 631 (Static LED headlamps, left-hand traffic) Headlamp unit E1, Model 205 as of model year 2019 with code 632 (Headlamps, LED, static, right-side traffic) Headlamp unit E1 | PE82.10-P-2000-97FBK | |
| Model 205 as of model year 2019 with code 631 (Static LED headlamps, left-hand traffic) Headlamp unit E2, Model 205 as of model year 2019 with code 632 (Headlamps, LED, static, right-side traffic) Headlamp unit E2 | PE82.10-P-2000-97FBL | ||
| Model 205 as of model year 2019 with code 640 (High-performance LED) Headlamp unit E1, Model 205 as of model year 2019 with code 641 (Dynamic LED headlamps, left-hand traffic) Headlamp unit E1, Model 205 as of model year 2019 with code 642 (Dynamic LED headlamps, right-hand traffic) Headlamp unit E1 | PE82.10-P-2000-97FBM | ||
| Model 205 as of model year 2019 with code 640 (High-performance LED) Headlamp unit E2, Model 205 as of model year 2019 with code 641 (Dynamic LED headlamps, left-hand traffic) Headlamp unit E2, Model 205 as of model year 2019 with code 642 (Dynamic LED headlamps, right-hand traffic) Headlamp unit E2 | PE82.10-P-2000-97FBN | ||
| Model 253 (except 253.99) as of model year 2020 with code 631 (Static LED headlamps, left-hand traffic) Headlamp unit E1, Model 253 (except 253.99) as of model year 2020 with code 632 (Headlamps, LED, static, right-side traffic) Headlamp unit E1, Model 253.99 with code 631 (Static LED headlamps, left-hand traffic) Headlamp unit E1, Model 253.99 with code 632 (Headlamps, LED, static, right-side traffic) Headlamp unit E1 | PE82.10-P-2000-97FCA | ||
| Model 253 (except 253.99) as of model year 2020 with code 631 (Static LED headlamps, left-hand traffic) Headlamp unit E2, Model 253 (except 253.99) as of model year 2020 with code 632 (Headlamps, LED, static, right-side traffic) Headlamp unit E2, Model 253.99 with code 631 (Static LED headlamps, left-hand traffic) Headlamp unit E2, Model 253.99 with code 632 (Headlamps, LED, static, right-side traffic) Headlamp unit E2 | PE82.10-P-2000-97FCB | ||
| Model 253 (except 253.99) as of model year 2020 with code 640 (High-performance LED) Headlamp unit E1, Model 253 (except 253.99) as of model year 2020 with code 641 (Dynamic LED headlamps, left-hand traffic) Headlamp unit E1, Model 253 (except 253.99) as of model year 2020 with code 642 (Dynamic LED headlamps, right-hand traffic) Headlamp unit E1 | PE82.10-P-2000-97FCG | ||
| Model 253 (except 253.99) as of model year 2020 with code 640 (High-performance LED) Headlamp unit E2, Model 253 (except 253.99) as of model year 2020 with code 641 (Dynamic LED headlamps, left-hand traffic) Headlamp unit E2, Model 253 (except 253.99) as of model year 2020 with code 642 (Dynamic LED headlamps, right-hand traffic) Headlamp unit E2 | PE82.10-P-2000-97FCI |
