Parking System Control Unit, Component Description - GF54.65-P-5004RFM

Model 205

as of model year 2019

with code P44 (Parking package)

Model 205

as of model year 2019

with code P47 (Parking Pilot with 360° camera)

Model 253 (except 253.99)

as of model year 2020

with code P44 (Parking package)

Model 253 (except 253.99)

as of model year 2020

with code P47 (Parking Pilot with 360° camera)

Model 253.99

with code P47 (Parking Pilot with 360° camera)

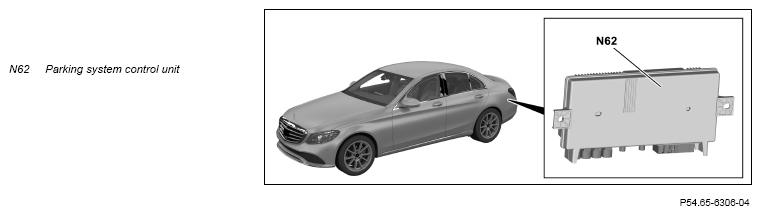

Shown: Model 205.0

Fig 1: Parking System Control Unit Component Location - Model 253 As Of M.Y. 2020 W/ Code P44, P47 (Shown On Model 205.0)
G12938179Courtesy of MERCEDES-BENZ USA

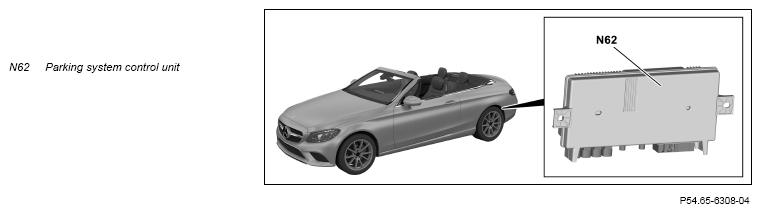

Shown: model 205.4

G12938180Courtesy of MERCEDES-BENZ USA

Location

The parking system control unit is located in the trunk on the left side wall (except model 205.4) or in the load compartment well (model 205.4).

Tasks

The parking system control unit has the following tasks:

Reading in of signals

The input factors are read in via the following connections:

Direct line

The signals from the following components are read via direct lines:

HSVL line

The image data from each of the following assembly parts is read in via a separate HSVL line:

Turning angle sensor LIN (model 253 with code 553 (Trailer hitch with turning angle sensor))

The parking system control unit reads in the data of the trailer hitch turning angle sensor (B24/24) via the turning angle sensor LIN.

Chassis FlexRay

The parking system control unit also reads in the following information over the suspension FlexRay:

The functions that use these signals are described in the individual function descriptions (see the appropriate block diagram or function schematic).

Evaluation of input factors

The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.

Actuation of components

The parking system control unit actuates the parking system distance sensors and the parking system speaker (H13/4) via direct lines.

The signals for activating the Audio/COMAND display are sent by the parking system control unit over the suspension FlexRay. The functions that use these signals are described in the individual function descriptions (see the appropriate block diagram or function schematic).

Output of signals

The parking system control unit also sends the following information or requests over the suspension FlexRay:

The parking system control unit sends the image data via a HSVL line to the head unit (A26/17).

Variants

  Parking system control unit wiring diagram Model 205 as of model year 2019 with code P44 (Parking Package); model 205 as of model year. 2019 with code P47 (Parking Pilot with 360° camera) PE54.65-P-2105-97FBA
  Wiring diagram of parking system control unit Model 253.99 with code P47 (Parking Pilot with 360° camera) PE54.65-P-2107-97FCA
