Component Description For ME-SFI (ME) Control Unit - GF07.61-P-6000MMV
Engine 276.8 in Model 205, 253
Location

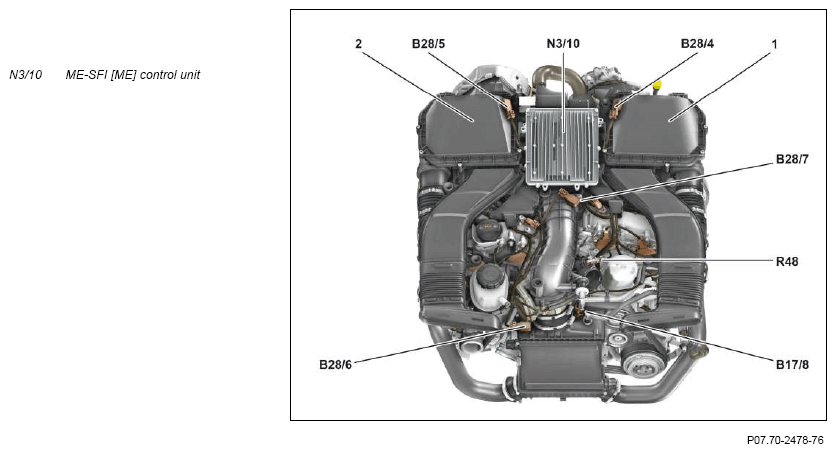

The ME-SFI [ME] control unit is located in the upper middle on the engine.
Tasks
The ME-SFI [ME] control unit fulfills the following tasks:
- Controlling the engine basic functions
- Reading in of signals
- Evaluation of input factors
- Output of signals and actuation of components Controlling the engine basic functions
- Start
- Fuel supply
- Injection control
- Ignition system
- Synchronization of injection and firing order
- Start, post-start phase and warm-up enrichment
- Engine speed control
- Alternator interface
- Lambda control
- Smooth running control
- Heat management
- Torque coordination
- Inertia fuel shutoff
- Knock sensor system
- Camshaft adjustment
- Engine limp-home mode
- European On-Board Diagnosis
- ECO start/stop function enable
- Exhaust treatment
- Charging
- Capturing fueling gases (with code 494 (USA version))
- Electronic accelerator
- Purge control
- Purge system with leak test (with code 494 (USA version))
Reading in of signals
The ME control unit reads the input factors via the following connections:
- Direct line
- Drive-LIN (LIN C1)
- Engine CAN (CAN C)
- Drive train CAN (CAN C1)
Evaluation of input factors
The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.
Output of signals and actuation of components
The ME control unit transmits the output variables via the following connections:
- Direct line
- Drive train LIN
- Engine CAN
- Drive train CAN
| Input factor over a direct line from | Initial parameter over a direct line to | Supplemental information |
|---|---|---|
| Terminal 15 | - | - |
| Circuit 30 (fused) | - | - |
| Circuit 31 | - | - |
| Circuit 87M4 | - | - |
| Knock sensor 1 (A16/1) | - | - |
| Knock sensor 2 (A16/2) | - | - |
| - | Fuel tank diagnostic module pump (A101m1) | With code 494 (USA version) as of Model year 2016 |
| - | Fuel tank diagnostic module heating element (A101r1) | With code 494 (USA version) as of Model year 2016 |
| - | Fuel tank diagnostic module solenoid valve (A101y1) | With code 494 (USA version) as of Model year 2016 |
| Fuel pressure and temperature sensor (B4/25) | - | - |
| Fuel tank pressure sensor (B4/3) | - | With code 494 (USA version) up to Model year 2016 |
| Purging pressure sensor (B4/4) | - | With CODE 494 (USA version) |
| Left intake camshaft Hall sensor (B6/4) | - | - |
| Right intake camshaft Hall sensor (B6/5) | - | - |
| Left exhaust camshaft Hall sensor (B6/6) | - | - |
| Right exhaust camshaft Hall sensor (B6/7) | - | - |
| Coolant temperature sensor (B11/4) | - | - |
| Charge air temperature sensor (B17/8) | - | - |
| Pressure sensor downstream of air filter, left cylinder bank (B28/4) | - | - |
| Pressure sensor downstream of air filter, right cylinder bank (B28/5) | - | - |
| Pressure sensor upstream of throttle valve (B28/6) | - | - |
| Pressure sensor downstream of throttle valve (B28/7) | - | - |
| Accelerator pedal sensor (B37) | - | - |
| Crankshaft Hall sensor (B70) | - | - |
| Engine compartment circuit 15 relay (K40/8kG) | - | - |
| - | Starter circuit 50 relay (K40/8kH) | - |
| Circuit 87M relay (K40/8kN) | Circuit 87M relay (K40/8kN) | - |
| Left oxygen sensor element upstream of CAT (G3/3b1) | - | - |
| - | Left oxygen sensor heater upstream of CAT (G3/3r1) | - |
| Right oxygen sensor element upstream of CAT (G3/4b1) | - | - |
| - | Right oxygen sensor heater upstream of CAT (G3/4r1) | - |
| Left oxygen sensor element downstream of CAT (G3/5b1) | - | - |
| - | Left oxygen sensor heater downstream of CAT (G3/5r1) | - |
| Right oxygen sensor element downstream of CAT (G3/6b1) | - | - |
| - | Right oxygen sensor heater downstream of CAT (G3/6r1) | - |
| - | Throttle valve actuator motor (M16/6m1) | - |
| Actual value potentiometer 1 (M16/6r1), throttle valve | - | - |
| Actual value potentiometer 2 (M16/6r2), throttle valve | - | - |
| Supplemental Restraint System control unit (N2/10) | - | - |
| - | Fuel system control unit (N118) | - |
| - | Coolant thermostat heating element (R48) | - |
| Oil level check switch (S43) | - | - |
| - | Cylinder 1 ignition coil (T1/1) | - |
| - | Cylinder 2 ignition coil (T1/2) | - |
| - | Cylinder 3 ignition coil (T1/3) | - |
| - | Cylinder 4 ignition coil (T1/4) | - |
| - | Cylinder 5 ignition coil (T1/5) | - |
| - | Cylinder 6 ignition coil (T1/6) | - |
| - | Left intake camshaft solenoid (Y49/4) | - |
| - | Right intake camshaft solenoid (Y49/5) | - |
| - | Left exhaust camshaft solenoid (Y49/6) | - |
| - | Right exhaust camshaft solenoid (Y49/7) | - |
| - | Purging switchover valve (Y58/1) | - |
| - | Activated charcoal canister shutoff valve (Y58/4) | With code 494 (USA version) up to Model year 2016 |
| - | Cylinder 1 fuel injector (Y76/1) | - |
| - | Cylinder 2 fuel injector (Y76/2) | - |
| - | Cylinder 3 fuel injector (Y76/3) | - |
| - | Cylinder 4 fuel injector (Y76/4) | - |
| - | Cylinder 5 fuel injector (Y76/5) | - |
| - | Cylinder 6 fuel injector (Y76/6) | - |
| - | Boost pressure control pressure transducer (Y77/1) | - |
| - | Quantity control valve (Y94) | |
| - | Left thrust circulating air switchover valve (Y101/1) | - |
| - | Right thrust circulating air switchover valve (Y101/2) | - |
| - | Engine oil pump valve (Y130) | - |
| Input factors via the drive-LIN (LIN C1) | Initial parameters via the drive-LIN (LIN C1) | Supplemental information |
|---|---|---|
| Alternator (G2) | Alternator (G2) | - |
| Input factors over engine CAN (CAN C) | Initial parameters via engine CAN (CAN C) | Supplemental information |
|---|---|---|
| Instrument cluster (A1) | Instrument cluster (A1) | Via user interface-CAN (CAN HMI), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Supplemental Restraint System control unit (N2/10) | - | Via user interface-CAN (CAN HMI), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Front SAM control unit (N10/6) | - | Over the interior CAN (CAN B), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Electronic Stability Program control unit (N30/4) | - | Via suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Model 205: AIRmatic control unit (N51/3) (with code 483 (ADVANCED AGILITY package) and code 489 (AIRMATIC)) |
Via suspension FlexRay (Flex E) and powertrain control unit (N127) | |
| Model 253: AIR BODY CONTROL control unit (N51/3) (with code 489 (AIR BODY CONTROL)) |
Via suspension FlexRay (Flex E) and powertrain control unit (N127) | |
| Radar sensors control unit (N62/1) (with CODE 23P (Driving assistance package Plus)) | Via suspension FlexRay (Flex E), Electronic Stability Program control unit (N30/4) and powertrain control unit (N127) | |
| Left front door control unit (N69/1) | Over the interior CAN (CAN B), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) | |
| Electronic ignition lock control unit (N73) | Electronic ignition lock control unit (N73) | Via suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Powertrain control unit (N127) | Powertrain control unit (N127) | - |
| Diagnostics connection (X11/4) | Diagnostics connection (X11/4) | Via diagnostic CAN (CAN D), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Input factors over drive train CAN 1 (CAN C1) | Initial parameters via drive train CAN 1 (CAN C1) | Supplemental information |
|---|---|---|
| Instrument cluster (A1) | Instrument cluster (A1) | Via user interface-CAN (CAN HMI), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Climate Control control unit (N22/1) | Over the interior CAN (CAN B), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) | |
| Electronic Stability Program control unit (N30/4) | - | Via suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Model 205: AIRmatic control unit (N51/3) (with code 483 (ADVANCED AGILITY package) and code 489 (AIRMATIC)) |
- | Via suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Model 253: AIR BODY CONTROL control unit (N51/3) (with code 489 (AIR BODY CONTROL)) |
Via suspension FlexRay (Flex E) and powertrain control unit (N127) | |
| Radar sensors control unit (N62/1) (with CODE 23P (Driving assistance package Plus)) | - | Via suspension FlexRay (Flex E), Electronic Stability Program control unit (N30/4) and powertrain control unit (N127) |
| Steering column tube module control unit (N80) | - | Via suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Fuel system control unit (N118) | Fuel system control unit (N118) | - |
| Powertrain control unit (N127) | Powertrain control unit (N127) | - |
| Fully integrated transmission control unit (Y3/8n4) | Fully integrated transmission control unit (Y3/8n4) | - |
Structure
The ME-SFI [ME] control unit housing is made out of diecast aluminum and the cover is made out corrosion-protected sheet steel. The ME-SFI [ME] control unit is water and dust protected. The inside contains the 32-bit measuring and control electronics for the engine management.
Voltage supply
The ME control unit is supplied with a power from "circuit 30 secured" and additionally, with "ignition ON", via circuit 87 M4. In the control voltage range, it has both short-circuit protection and reversed polarity protection. Power is supplied through several engaged parallel pins connected in parallel to relieve the electrical connections.
Variants
The engine management variants, such as country and exhaust variants, are activated via variant coding. Exchange of the ME-SFI [ME] control unit is not necessary.
