Component Description For ME-SFI (ME) Control Unit - GF07.61-P-6000MRA
Engine 274.9 in Model 205 (except 205.047/053/054/147/247/253) and Model 253 (except 253.354/954)

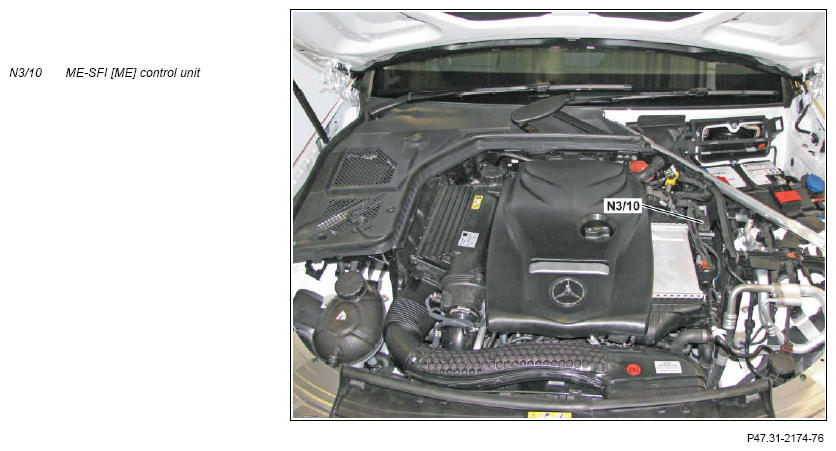

View of engine compartment
Location
The ME-SFI [ME] control unit is located on the left of the engine next to the charge air distributor.
Tasks
The ME-SFI [ME] control unit fulfills the following tasks:
- Controlling the engine basic functions
- Reading in of signals
- Evaluation of input factors
- Output of signals and actuation of components
The ME-SFI [ME] control unit also acts as an interface (Gateway) between the attached CAN bus systems.
Controlling the engine basic functions
- Ignition ON
- Start
- Ignition OFF
- Fuel supply
- Injection control
- Ignition system
- Synchronization of injection and firing order
- Start, post-start phase and warm-up enrichment
- Engine speed control
- Alternator interface
- Lambda control
- Smooth running control
- Heat management
- Torque coordination
- Inertia fuel shutoff
- Knock sensor system
- Camshaft adjustment
- Engine limp-home mode
- European On-Board Diagnosis
- Engine management Start-Stop
- Charging
- Exhaust treatment
- Exhaust gas recirculation (with NOx catalytic converter) (for code 920 (Gasoline direct injection with stratified charge))
- Electronic accelerator
- Capturing fueling gases (for code 494 (USA version))
- Purge control
- Purging with leak test (with code 494 (USA version))
Reading in of signals
Input factors are read in over the following connections:
- Direct line
- Drive-LIN (LIN C1)
- Engine CAN (CAN C)
- Drive train CAN (CAN C1)
- Drive train sensor CAN (CAN I)
Evaluation of input factors
The input factors that have been read in are evaluated by the integral microprocessor, and the relevant assembly parts are actuated.
Output of signals and actuation of components
Initial parameter are output over the following connections:
- Direct line
- Drive train LIN
- Engine CAN
- Drive train CAN
- Drive train sensor CAN (for code 920 (Gasoline direct injection with stratified charge))
The electronic ignition lock control unit (N73) is the central interface (Gateway) for exchanging the function-relevant data of the control units that are connected to the various CAN bus systems.
Input factors and initial parameters for the following assembly parts are read in or output over direct lines by the ME-SFI [ME] control unit and are needed by the engine management:
| Input factors over a direct line | Initial parameters over a direct line | Supplemental information |
|---|---|---|
| Terminal 15 | - | - |
| Circuit 30 (fused) | - | - |
| Circuit 31 | - | - |
| Circuit 87M4 | - | - |
| Knock sensor 1 (A16/1) | - | - |
| Knock sensor 2 (A16/2) | - | - |
| - | Fuel tank diagnostic module pump (A101m1) | For CODE 494 (USA version) as of Model year 2016 |
| - | Fuel tank diagnostic module heating element (A101r1) | For CODE 494 (USA version) as of Model year 2016 |
| - | Fuel tank diagnostic module solenoid valve (A101y1) | For CODE 494 (USA version) as of Model year 2016 |
| Fuel pressure and temperature sensor (B4/25) | - | - |
| Fuel tank pressure sensor (B4/3) | - | For CODE 494 (USA version) up to Model year 2016 |
| Purging pressure sensor (B4/4) | - | With CODE 494 (USA version) |
| Exhaust gas recirculation pressure sensor 1 (B5/5) | - | For code 920 (Gasoline direct injection with stratified charge) |
| Exhaust gas recirculation pressure sensor 2 (B5/6) | - | For code 920 (Gasoline direct injection with stratified charge) |
| Intake camshaft Hall sensor (B6/15) | - | - |
| Exhaust camshaft Hall sensor (B6/16) | - | - |
| Coolant temperature sensor (B11/4) | - | - |
| Temperature sensor upstream of NOx storage catalytic converter (B16) | - | For code 920 (Gasoline direct injection with stratified charge) |
| Charge air temperature sensor upstream of throttle valve (B17/7) | - | - |
| Charge air temperature sensor downstream of throttle valve (B17/9) | - | - |
| Pressure sensor upstream of throttle valve (B28/6) | - | - |
| Pressure sensor downstream of throttle valve (B28/7) | - | - |
| Pressure sensor downstream of air filter (B28/11) | - | - |
| Accelerator pedal sensor (B37) | - | - |
| Clutch pedal sensor (B53/1) | - | with manual transmission |
| Crankshaft Hall sensor (B70) | - | - |
| Manual transmission main shifter shaft position sensor (B79/3) | - | with manual transmission |
| Oxygen Sensor sensor element downstream of catalytic converter (G3/1b1) | - | - |
| - | Oxygen sensor heater downstream of catalytic converter (G3/1r1) | - |
| Oxygen Sensor sensor element upstream of catalytic converter (G3/2b1) | - | - |
| - | Oxygen sensor heater upstream of catalytic converter (G3/2r1) | - |
| - | Throttle valve actuator motor (M16/6m1) | - |
| Actual value potentiometer 1 (M16/6r1), throttle valve | - | - |
| Actual value potentiometer 2 (M16/6r2), throttle valve | - | - |
| - | Electric coolant pump (M75/11) | Except code M014 (Uprated engine) and code 494 (USA version) |
| Supplemental Restraint System control unit (N2/10) | - | - |
| Engine compartment circuit 15 relay (K40/8kG) | - | - |
| - | Starter circuit 50 relay (K40/8kH) | - |
| Circuit 87M relay (K40/8kN) | Circuit 87M relay (K40/8kN) | - |
| - | Fuel system control unit (N118) | - |
| - | Wide open throttle operation vent line heater element (R39/2) | - |
| - | Coolant thermostat heating element (R48) | - |
| Oil level check switch (S43) | - | - |
| - | Cylinder 1 ignition coil (T1/1) | - |
| - | Cylinder 2 ignition coil (T1/2) | - |
| - | Cylinder 3 ignition coil (T1/3) | - |
| - | Cylinder 4 ignition coil (T1/4) | - |
| - | Heating system shutoff valve (Y16/2) | For code M014 (Uprated engine) and code 494 (USA version) |
| Exhaust gas recirculation valve Hall sensor (Y27/1b1) | - | For code 920 (Gasoline direct injection with stratified charge) |
| - | Exhaust gas recirculation valve rotating solenoid (Y27/1y1) | For code 920 (Gasoline direct injection with stratified charge) |
| - | Intake camshaft solenoid (Y49/1) | - |
| - | Exhaust camshaft solenoid (Y49/2) | - |
| - | Intake camshaft valve lift changeover actuator (Y49/8) | For code A14 (Camtronic) |
| Intake camshaft valve lift changeover Hall sensor (Y49/8b1) | - | For code A14 (Camtronic) |
| - | Purging switchover valve (Y58/1) | - |
| - | Partial load operation crankcase ventilation system valve (Y58/2) | - |
| - | Activated charcoal canister shutoff valve (Y58/4) | For CODE 494 (USA version) up to Model year 2016 |
| - | Cylinder 1 fuel injector (Y76/1) | - |
| - | Cylinder 2 fuel injector (Y76/2) | - |
| - | Cylinder 3 fuel injector (Y76/3) | - |
| - | Cylinder 4 fuel injector (Y76/4) | - |
| - | Boost pressure control pressure transducer (Y77/1) | - |
| - | Quantity control valve (Y94) | - |
| - | Deceleration air switchover valve (Y101) | - |
| - | Engine oil pump valve (Y130) | - |
Input parameters and initial parameters for the following assembly parts and control units are transmitted or received by the ME-SFI [ME] or CDI control unit via the LIN or CAN and are needed by the engine management system:
| Input factors via the drive-LIN (LIN C1) | Initial parameters via the drive-LIN (LIN C1) | Supplemental information |
|---|---|---|
| Alternator (G2) | Alternator (G2) | - |
| Input factors over engine CAN (CAN C) | Initial parameters via engine CAN (CAN C) | Supplemental information |
|---|---|---|
| Instrument cluster (A1) | Instrument cluster (A1) | Via user interface-CAN (CAN HMI), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Head unit (A26/17) | - | Via user interface-CAN (CAN HMI), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Supplemental Restraint System control unit (N2/10) | - | Via user interface-CAN (CAN HMI), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Front SAM control unit (N10/6) | - | Over the interior CAN (CAN B), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Left front door control unit (N69/1) | - | Over the interior CAN (CAN B), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Electronic ignition lock control unit (N73) | Electronic ignition lock control unit (N73) | Via suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Powertrain control unit (N127) | Powertrain control unit (N127) | - |
| Diagnostics connection (X11/4) | Diagnostics connection (X11/4) | Via diagnostic CAN (CAN D), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Input factors via drive train CAN (CAN C1) | Initial parameters via drive train CAN (CAN C1) | Supplemental information |
|---|---|---|
| Instrument cluster (A1) | Instrument cluster (A1) | Via user interface-CAN (CAN HMI), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Climate Control control unit (N22/1) | - | Over the interior CAN (CAN B), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Electronic Stability Program control unit (N30/4) | - | Via suspension FlexRay (Flex E) and powertrain control unit (N127) |
| AIRMATIC control unit (N51/3) (with code 483 (ADVANCED AGILITY package) and with code 489 (AIRMATIC)) (Model 205) or AIR BODY CONTROL control unit (N51/3) (with code 489 (AIR BODY CONTROL)) (Model 253) | - | Via suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Radar sensors control unit (N62/1) for code 23P (Driving Assistance Package) | - | Via suspension FlexRay (Flex E), Electronic Stability Program control unit (N30/4) and powertrain control unit (N127) |
| Steering column tube module control unit (N80) | - | Via suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Fuel system control unit (N118) | Fuel system control unit (N118) | - |
| Powertrain control unit (N127) | Powertrain control unit (N127) | - |
| Fully integrated transmission control unit (Y3/8n4) | Fully integrated transmission control unit (Y3/8n4) | with automatic transmission |
| Input factors via drive train sensor CAN (CAN I) | Initial parameters via drive train sensor CAN (CAN I) | Supplemental information |
|---|---|---|
| NOx sensor control unit (N37/4) | NOx sensor control unit (N37/4) | For code 920 (Gasoline direct injection with stratified charge) |
Structure
The ME-SFI [ME] control unit housing is made out of diecast aluminum and the cover is made out corrosion-protected sheet steel. The ME-SFI [ME] control unit is water and dust protected.
The inside contains the 32-bit measuring and control electronics for the engine management.
Voltage supply
The ME-SFI [ME] control unit is supplied with a power from "circuit 30 secured" and also for ignition ON from "circuit 87 M4".
In the operating voltage range it has both short-circuit protection and reversed polarity protection.
Power is supplied through several engaged parallel pins connected in parallel to relieve the electrical connections.
Ground connection
The "circuit 31" ground connection is made via several ground lines to the left major assembly compartment electronics ground point (W16/5).
Variants
The variants of the engine management, for exampled country and exhaust variants, are activated with XD over the variant coding. Exchange of the ME-SFI [ME] control unit is not necessary.
| Wiring diagram for gasoline-DI control unit | N3/10, engine side | PE07.08-P-2101-97FBK | |
| N3/10 Vehicle side | PE07.08-P-2101-97FBJ |
