Overview Of System Components For Gasoline Injection And Ignition System With Direct Injection - GF07.70-P-9998MNA
Engine 177.9 in Model 205, 253
Shown: Model 205.0
with code 464 (Full display digital instrument cluster)
Engine 177.9 in Model 205, 253
The indicator and warning lamps are shown as pictograms in the display.

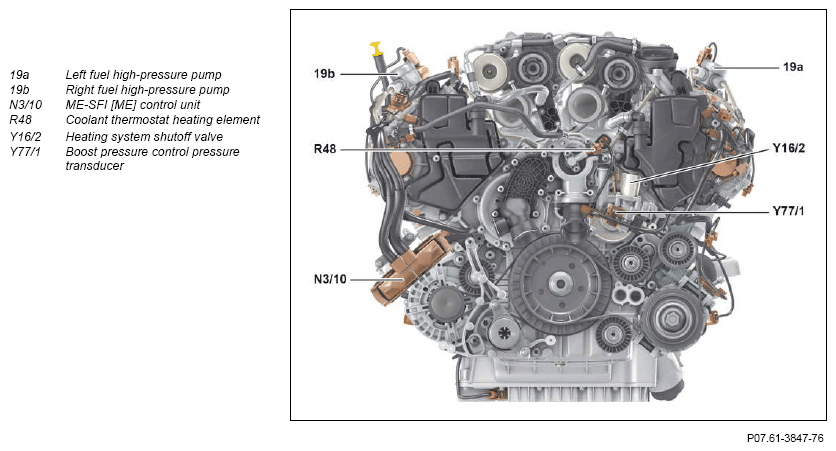

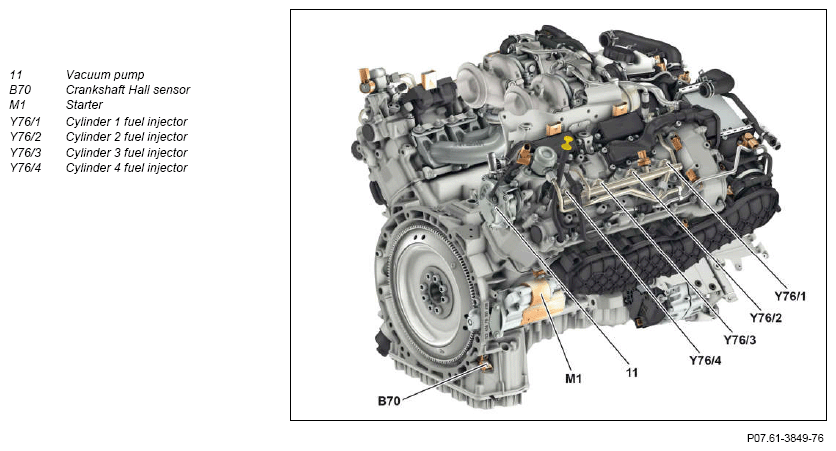

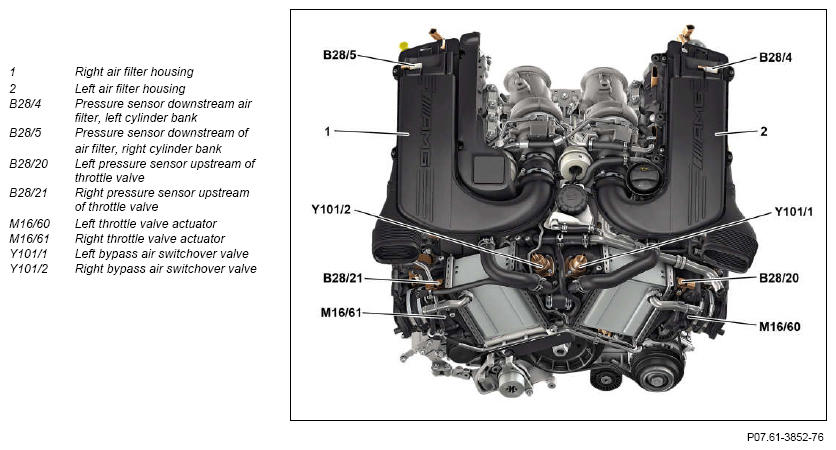

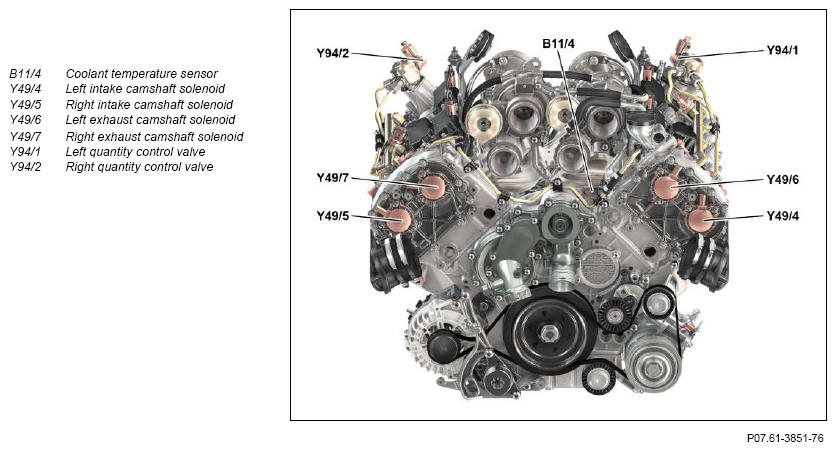

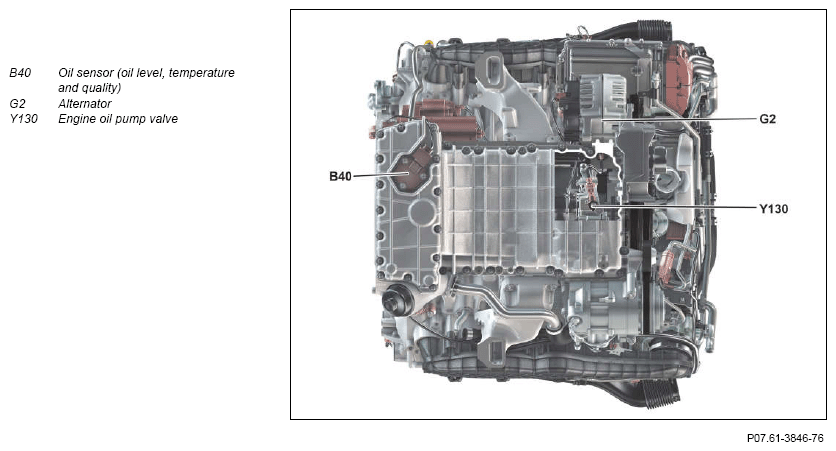

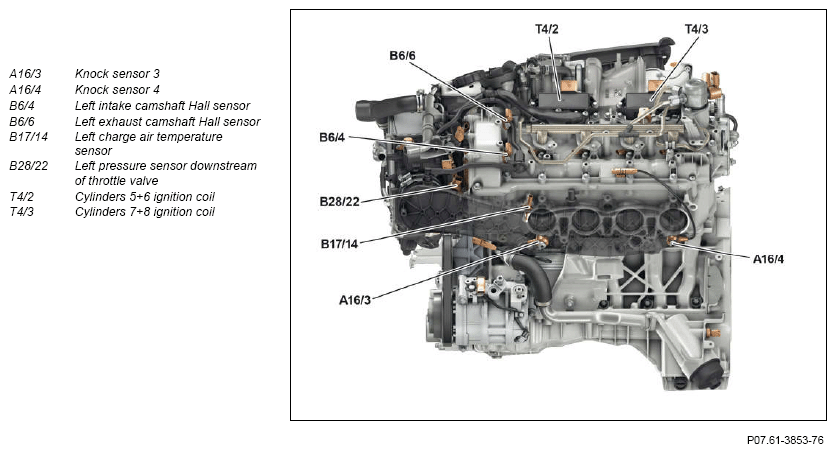

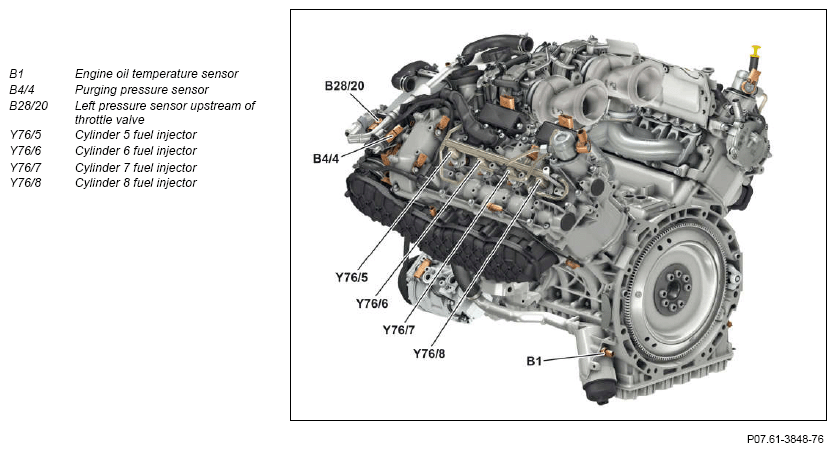

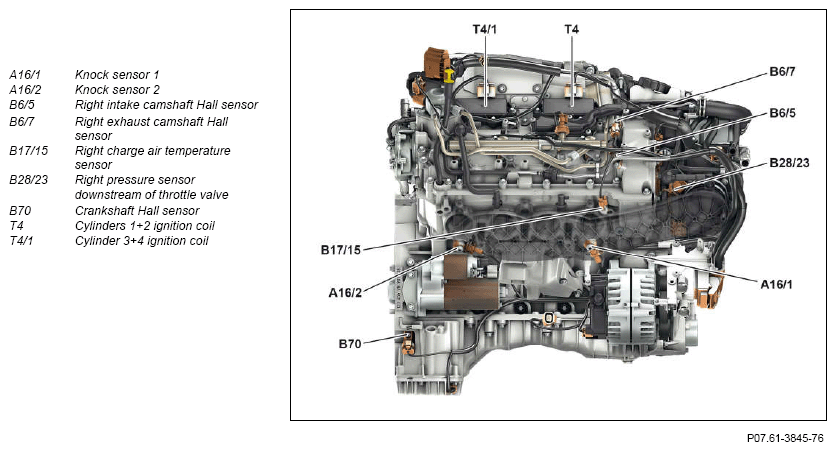

Shown on engine 177.9 in Model 205
Shown on engine 177.9 in Model 205
Shown on engine 177.9 in Model 205
Shown on engine 177.9 in Model 205
Shown on engine 177.9 in Model 205
Shown on engine 177.9 in Model 205
Shown on engine 177.9 in Model 205
Shown on engine 177.9 in Model 205

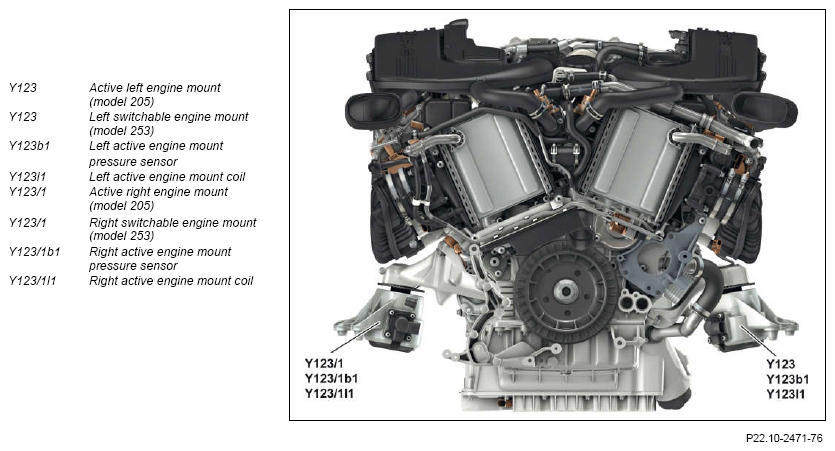

Shown on engine 177.9 in Model 205 with code 466 (Active engine mount)

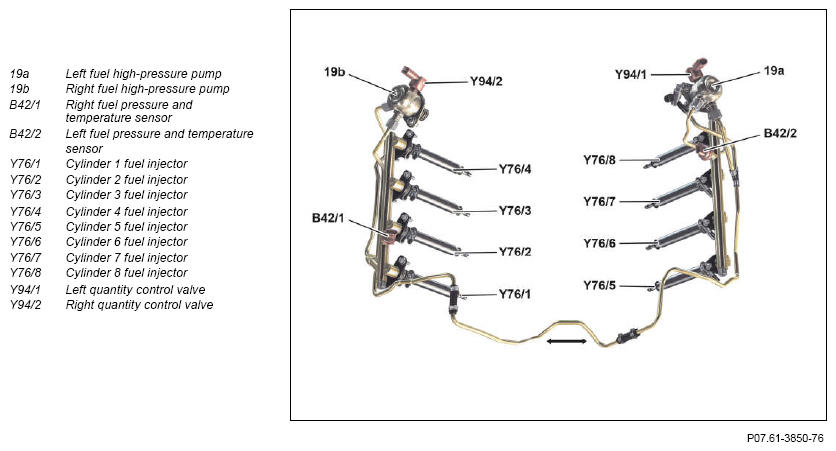

Shown: fuel high-pressure circuit

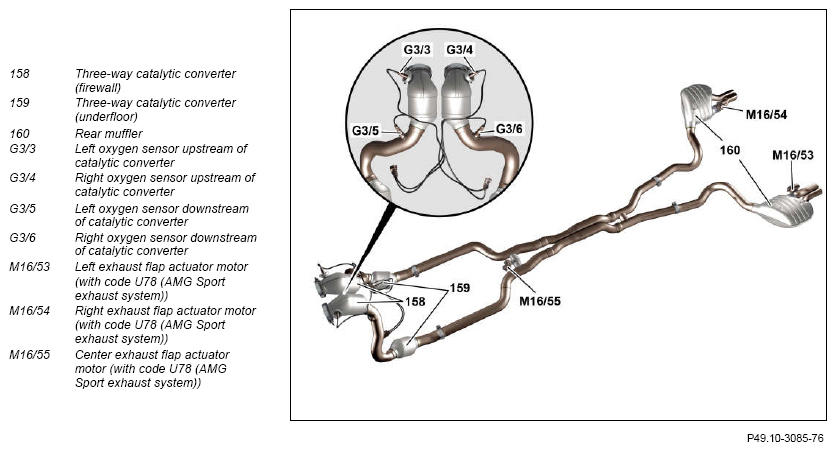

Shown on exhaust system on Model 205.0

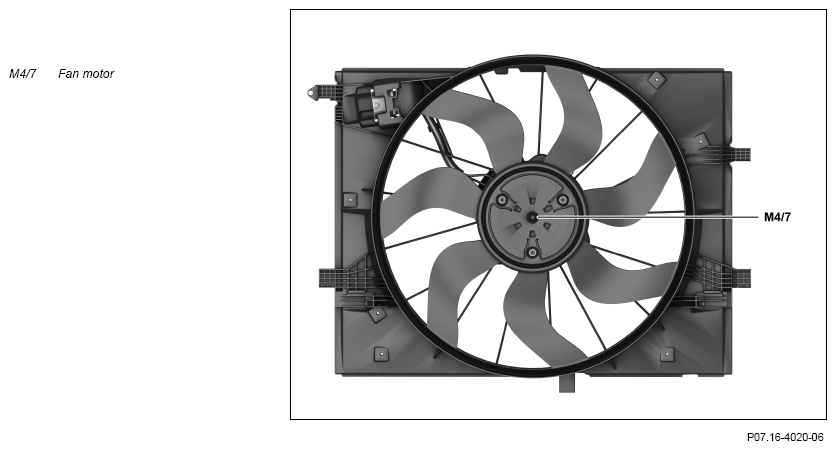

Shown: fan motor (M4/7)

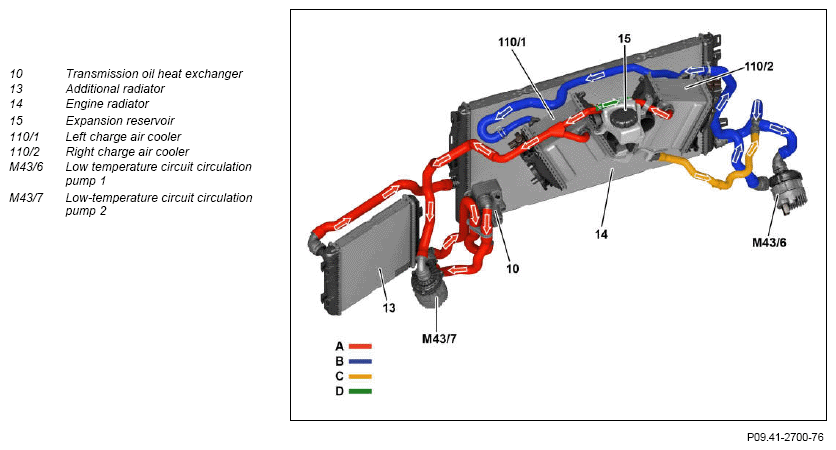

Shown: low-temperature circuit Model 205.0

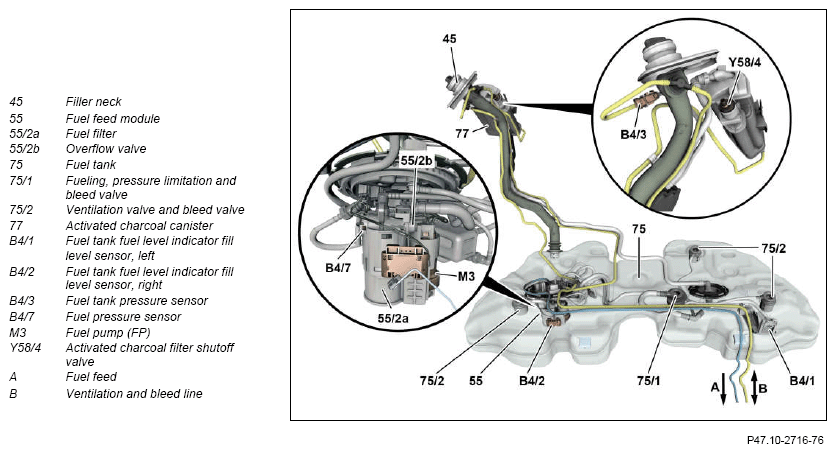

Phantom view of fuel tank, shown on Model 205 with code 494 (USA version) up to Model year 2016

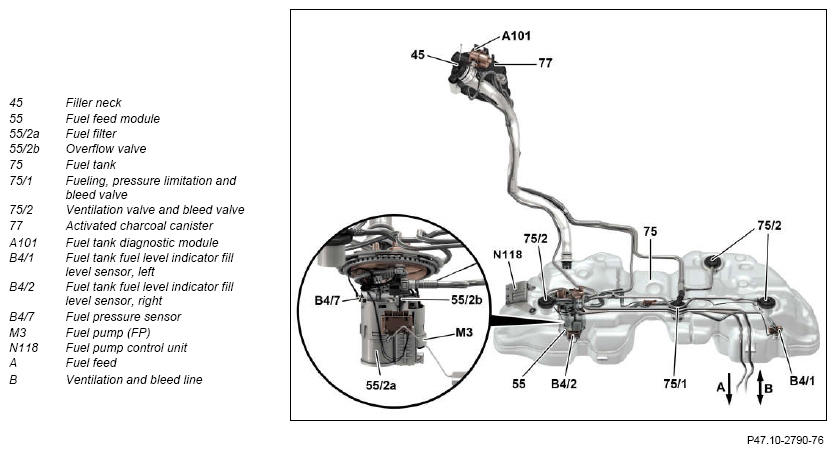

Phantom view of fuel tank, shown on Model 205 with code 494 (USA version) from Model year 2016

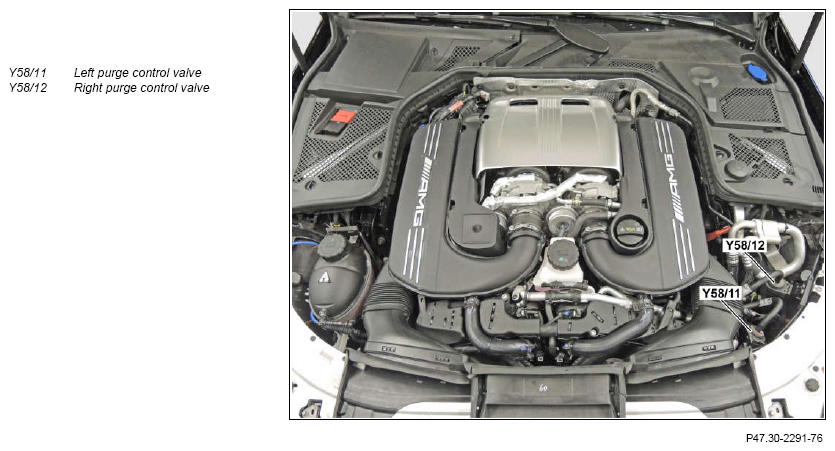

Shown on engine compartment Model 205

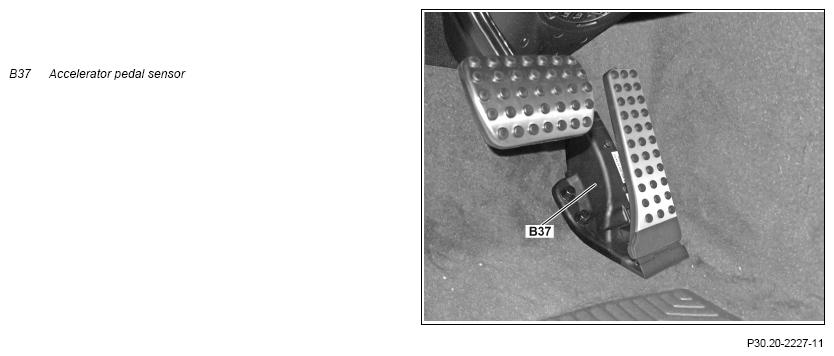

Shown on driver-side footwell

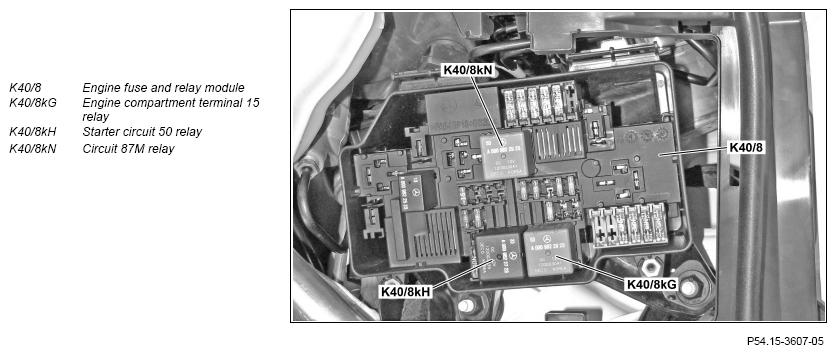

Engine fuse and relay module (K40/8) in the left rear engine compartment

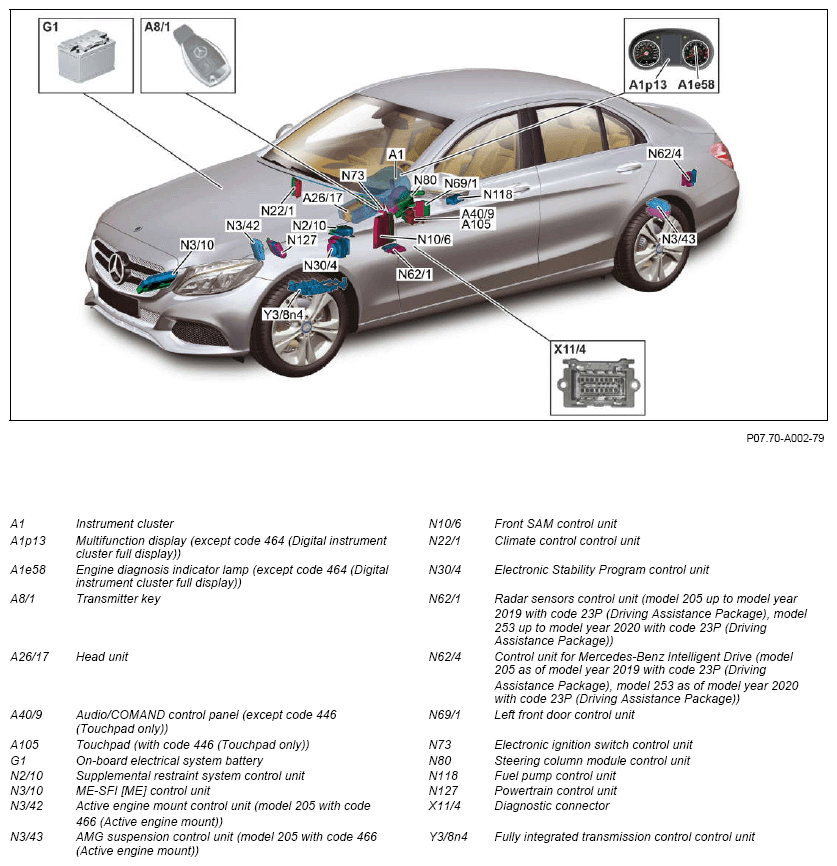

Control, Model 205
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| Head unit, component description | Engine 177.9 in Model 205 up to Model year 2019 with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) Engine 177.9 in Model 253 up to Model year 2020 with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) |
GF82.85-P-3140RF | |
| A26/17 Engine 177.9 in Model 205 up to Model year 2019 with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) Engine 177.9 in Model 253 up to Model year 2020 with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) |
GF82.85-P-3140RFA | ||
| A26/17 Engine 177.9 in Model 205 as of Model year 2019 with code 506 (Audio 20 NTG 5.5 radio) Engine 177.9 in Model 205 with code 531 (COMAND APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) Engine 177.9 in Model 253 with code 531 (COMAND APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) |
GF82.85-P-3140RFB | ||
| A26/17 Engine 177.9 in Model 253 with code 547 (Connect 20 Entry (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) Engine 177.9 in Model 253 with code 548 (Connect 20 MID (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) Engine 177.9 in Model 253 with code 549 (Connect 20 HIGH (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RFM | ||
| Component description for Audio/COMAND control panel | Engine 177.9 in Model 205 as of Model year 2019 except code 446 (Touchpad only) Engine 177.9 in Model 205 up to Model year 2019 Engine 177.9 in Model 253 up to Model year 2020 A40/9 |
GF54.21-P-4501RF | |
| Touchpad, component description | Engine 177.9 in Model 205 as of Model year 2019 with code 446 (Touchpad only) Engine 177.9 in Model 253 as of Model year 2020 with code 446 (Touchpad only) A105 |
GF54.21-P-4511RF | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RF | |
| Component description for ME-SFI (ME) control unit | N3/10 | GF07.61-P-6000MNA | |
| Active engine mount control unit, component description | Model 205 with engine 177.9 with code 466 (Active engine mount) N3/42 |
GF22.10-P-2001MNA | |
| AMG sports suspension control unit, component description | Model 205 with engine 177.9 with code 466 (Active engine mount) Model 205 with engine 177.9 with code 467 (Electronic locking differential) N3/43 |
GF54.21-P-1002RF | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010RF | |
| Climate Control control unit, component description | N22/1 | GF83.40-P-2250RF | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119RF | |
| Component description for radar sensors control unit | Engine 177.9 in Model 205 up to Model year 2019 with code 23P (Driving Assistance package) Engine 177.9 in Model 253 up to Model year 2020 with code 23P (Driving Assistance package) N62/1 |
GF30.30-P-3301RF | |
| Mercedes-Benz Intelligent Drive control unit, component description | Engine 177.9 in Model 205 as of Model year 2019 with code 23P (Driving Assistance package) Engine 177.9 in Model 253 as of Model year 2020 with code 23P (Driving Assistance package) N62/4 |
GF30.30-P-3312RFM | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001RF | |

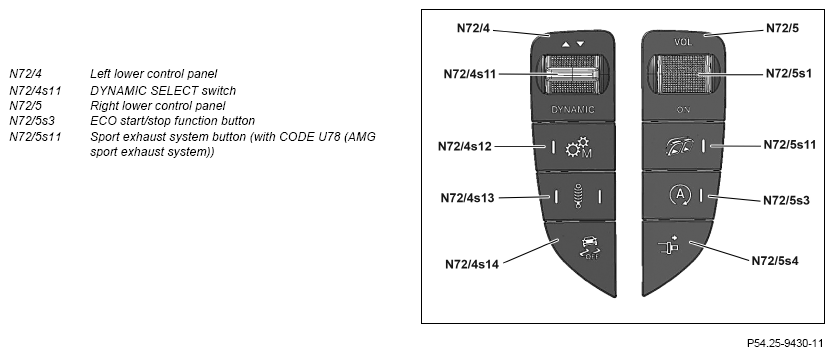

| Lower control panel, component description | N72/4, N72/5 | GF54.25-P-4270RF | |
| Component description for the electronic ignition lock control unit | Engine 177.9 in Model 205 up to Model year 2019 Engine 177.9 in Model 253 up to Model year 2020 N73 |
GF80.57-P-6001RF | |
| Engine 177.9 in Model 205 as of Model year 2019 Engine 177.9 in Model 253 as of Model year 2020 N73 |
GF80.57-P-6001RFM | ||
| Component description for steering column tube module control unit | Engine 177.9 in Model 205 up to Model year 2019 Engine 177.9 in Model 253 up to Model year 2020 N80 |
GF54.21-P-6051RF | |
| Engine 177.9 in Model 205 as of Model year 2019 Engine 177.9 in Model 253 as of Model year 2020 N80 |
GF54.21-P-6051RFM | ||
| Component description for fuel pump control unit | N118 | GF47.40-P-2001MNA | |
| Drivetrain control unit, component description | N127 | GF54.21-P-2141MNA | |
| Component description for fully integrated transmission control unit | Transmission 722.930 in Model 205 with engine 177.9 Y38n4 |
GF27.60-P-5165AIA | |
| Engine 177.9 in Model 205 with transmission 725.066 Y38n4 |
GF27.60-P-5165ANG | ||
| Engine 177.9 in Model 253 with transmission 725.0 Y38n4 |
GF27.60-P-5165ANI | ||
| Table of contents for function description of gasoline injection and ignition system with direct injection | GF07.70-P-0998MNA |
