Overview Of System Components For Gasoline Injection And Ignition System With Direct Injection - GF07.70-P-9998MRH
Engine 274.9 in Model 205.047/053/054/147/247/253
Engine 274.9 in Model 253.354/954
Shown on Model 205.047

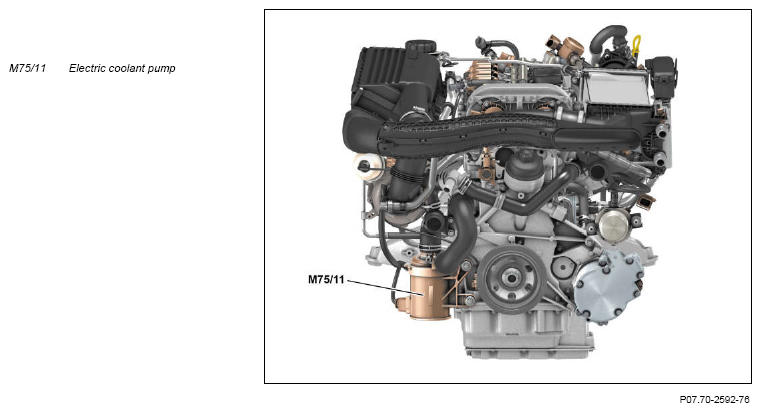

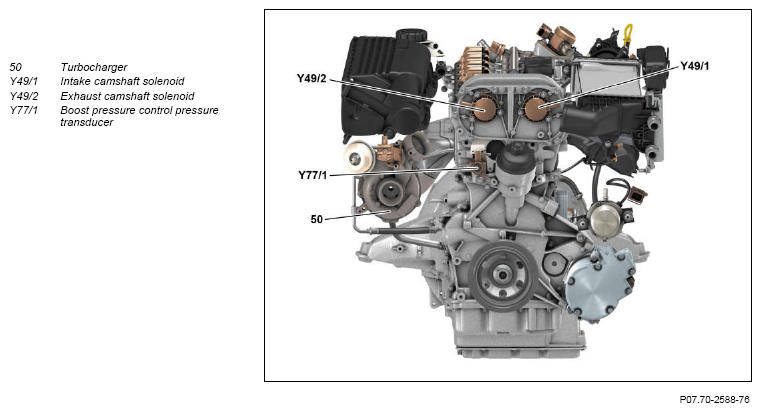

Engine front view

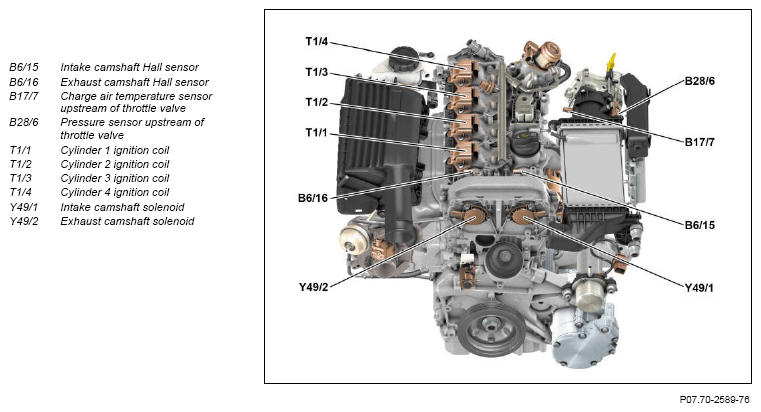

Engine top front view

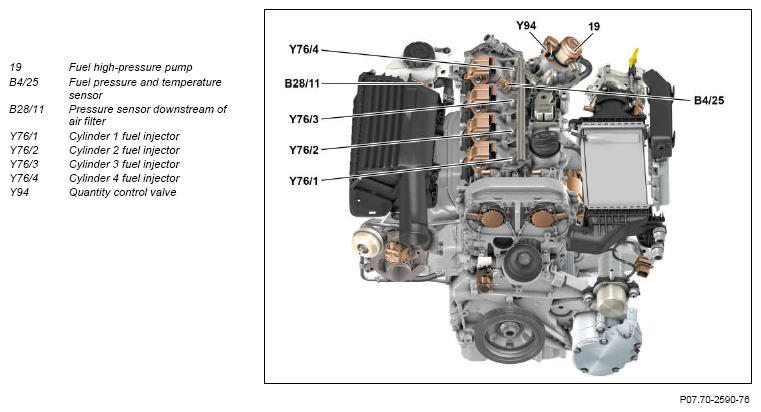

Engine top front view

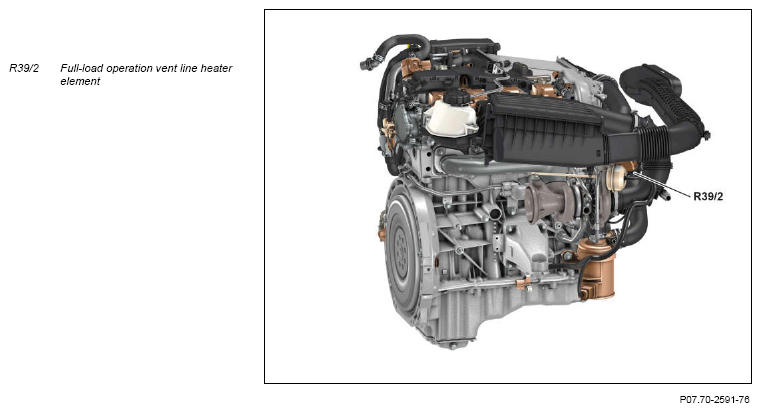

View of engine from the rear right
View of engine from front right

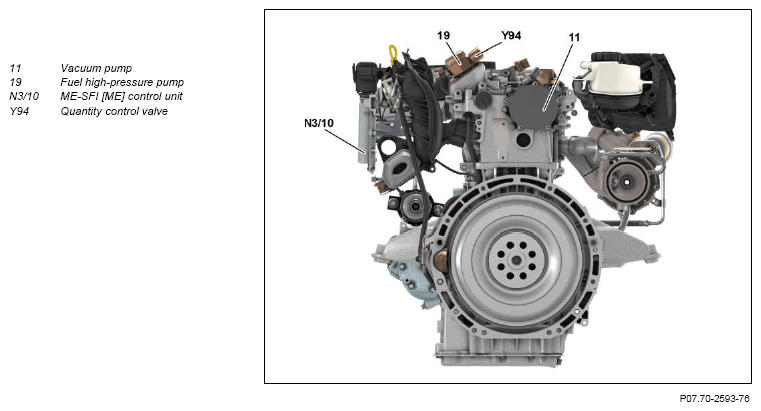

Engine rear view
View of engine from the left
Bottom view of engine

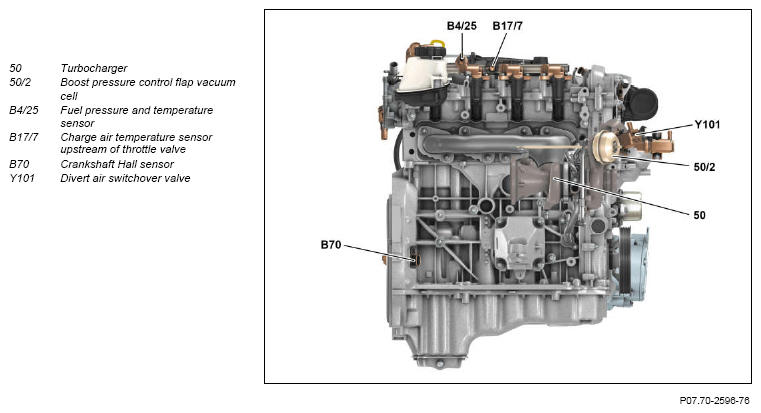

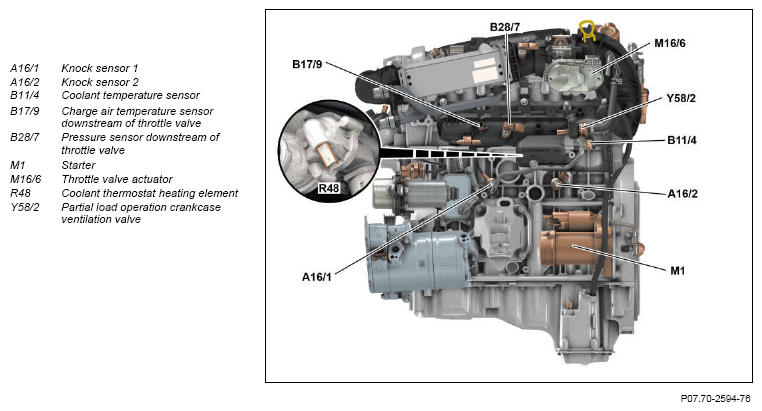

Engine right view

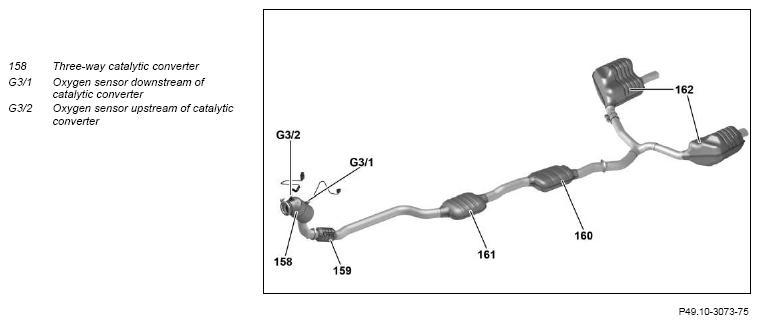

Display of exhaust system

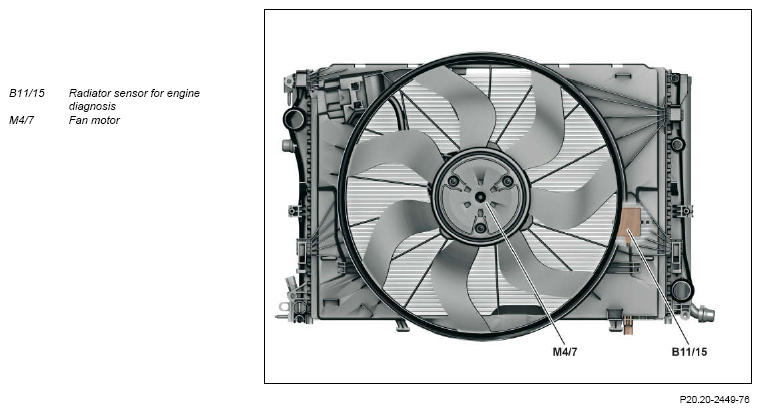

View of radiator from rear (with code 494 (USA version) and code 917 (PZEV emission USA))

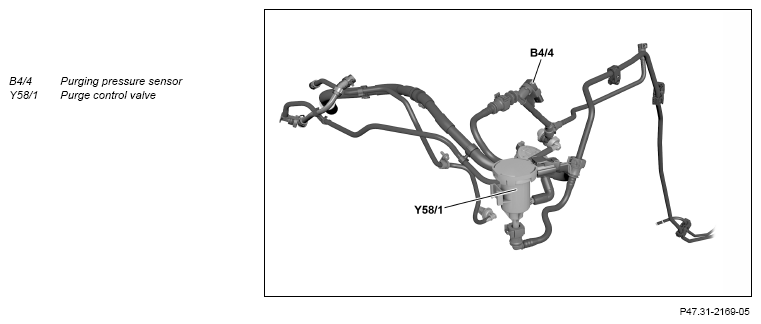

View of aeration and ventilation system (with code 494 (USA version))

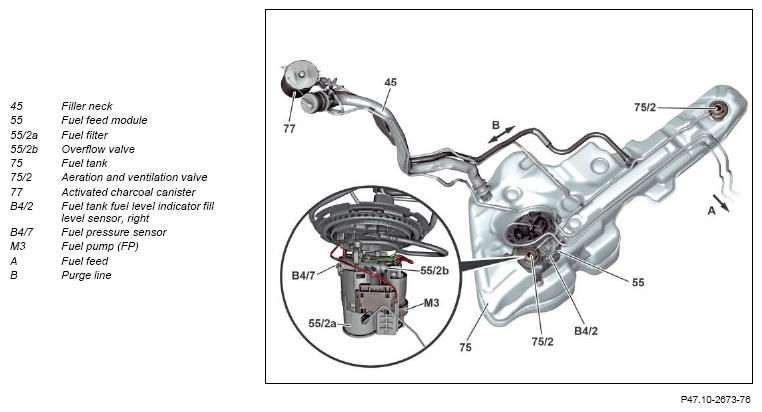

Fuel tank phantom view (except code 494 (USA version) and except code 916 (fuel tank 66 l) (Model 205) and except code 916 (fuel tank with increased capacity) (Model 253))

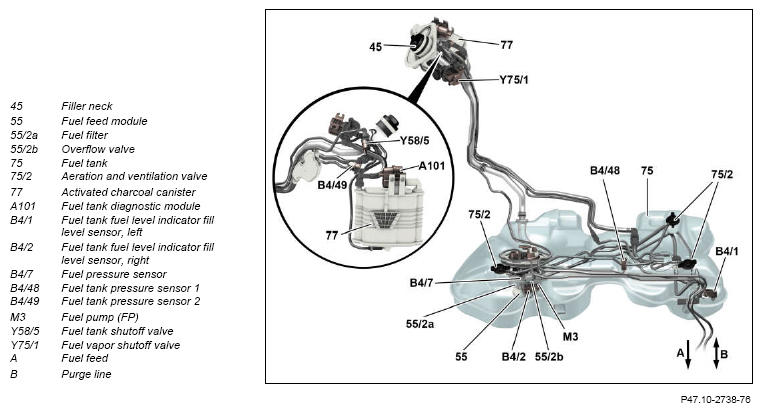

Fuel tank phantom view (with code 494 (USA version) and code 916 (fuel tank 66 l) (Model 205) or code 916 (fuel tank with increased capacity) (Model 253))

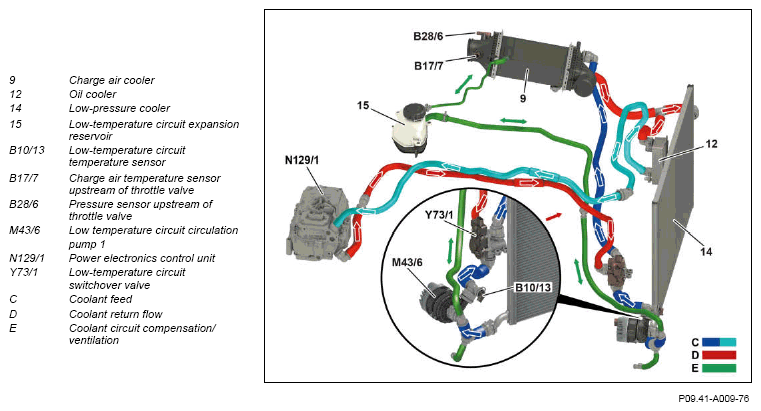

Shown on low-temperature circuit up to Model year 2017

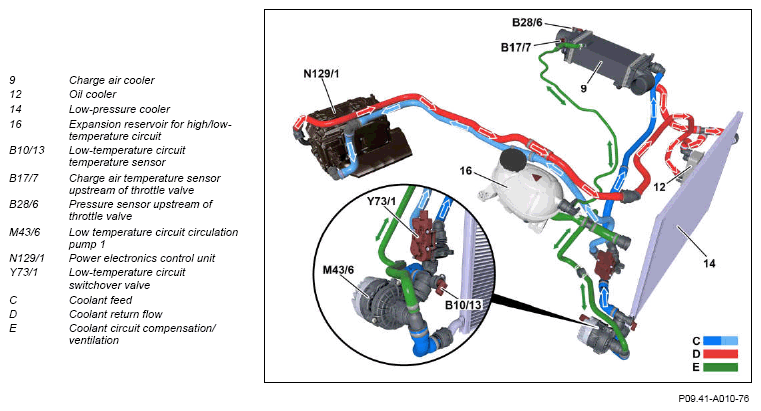

Shown on low-temperature circuit as of Model year 2017

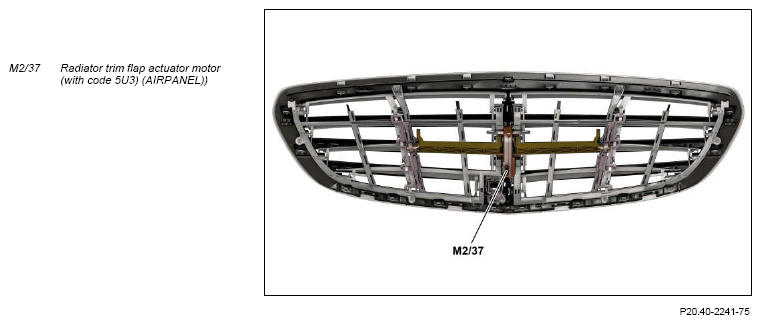

View of radiator trim from the rear

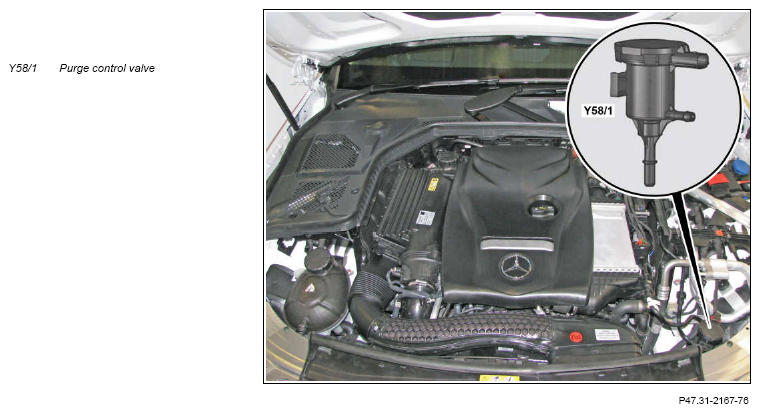

View of engine compartment

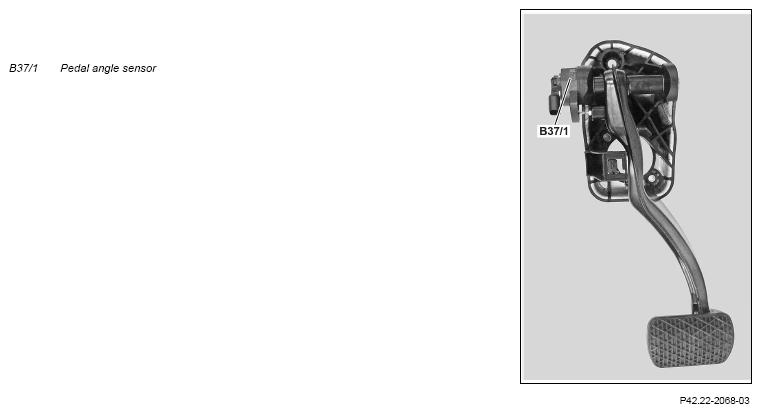

View of brake pedal

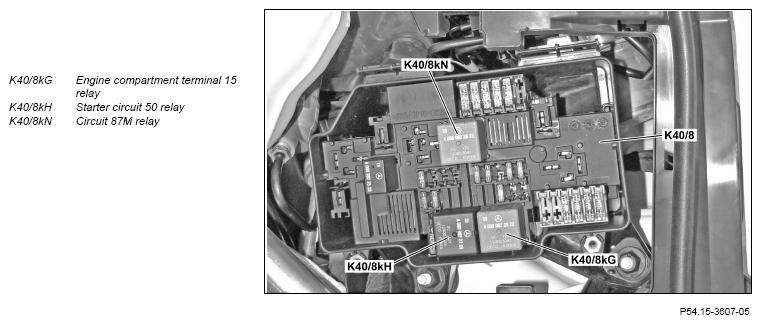

View of engine fuse and relay module (K40/8) in rear left engine compartment

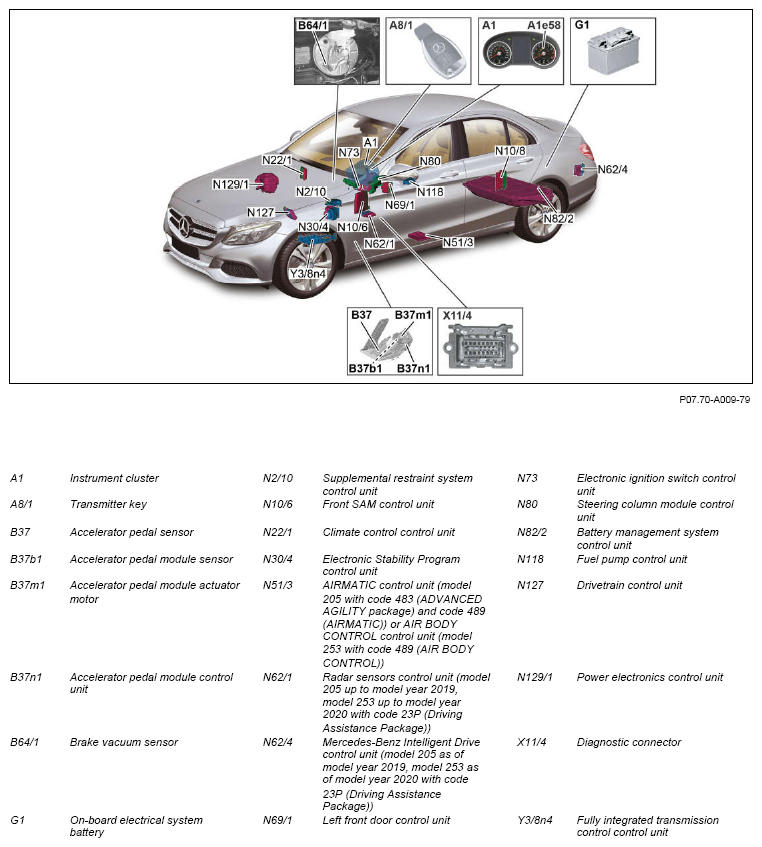

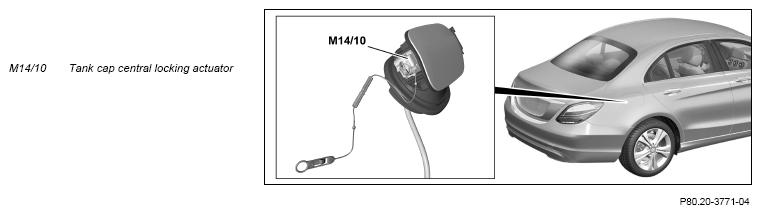

Shown: Model 205.0

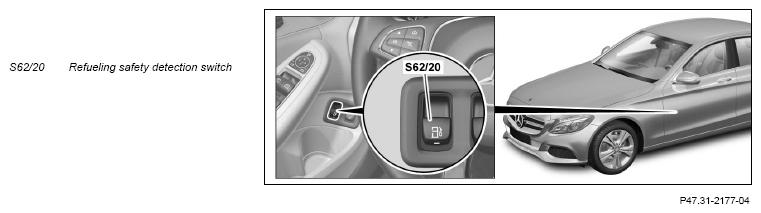

Shown: Model 205.0
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| Accelerator pedal module control unit, component description | B37n1 | GF07.08-P-2000MRA | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RF | |
| Component description for ME-SFI (ME) control unit | N3/10 | GF07.61-P-6000MRH | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010RF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030RF | |
| Climate Control control unit, component description | N22/1 | GF83.40-P-2250RF | |
| Component description for Electronic Stability Program control unit | Engine 274.9 in Model 205.047/053/054/147/247/253 Engine 274.9 in Model 253.354/954 N30/4 |
GF42.45-P-5119RFH | |
| AIRMATIC control unit, component description | Model 205.047/053/054/147/247/253 with engine 274.9 with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC) N51/3 |
GF32.22-P-5110RF | |
| AIR BODY CONTROL control unit, component description | Engine 274.9 in Model 253.354/954 with code 489 (AIR BODY CONTROL) N51/3 | GF32.22-P-5111RF | |
| Component description for radar sensors control unit | Model 205.047/053/054/147/247/253 with engine 274.9 up to Model year 2019 with code 23P (Driving Assistance package) Model 253.354/954 with engine 274.9 up to Model year 2020 with code 23P (Driving Assistance package) N62/1 |
GF30.30-P-3301RF | |
| Mercedes-Benz Intelligent Drive control unit, component description | Engine 274.9 in Model 205.047/053/054/147/253 as of Model year 2019 with code 23P (Driving Assistance package) N62/4 | GF30.30-P-3312RFM | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001RF | |
| Component description for the electronic ignition lock control unit | Model 205.047/053/054/147/247 with engine 274.9 up to Model year 2019 Model 253.354/954 with engine 274.9 up to Model year 2020 N73 |
GF80.57-P-6001RF | |
| Engine 274.9 in Model 205.047/053/054/147/253 as of Model year 2019 N73 | GF80.57-P-6001RFM | ||
| Component description for steering column tube module control unit | Model 205.047/053/054/147/247/253 with engine 274.9 up to Model year 2019 Model 253.354/954 with engine 274.9 up to Model year 2020 N80 |
||
| Engine 274.9 in Model 205.047/053/054/147/253 as of Model year 2019 N80 |
GF54.21-P-6051RF GF54.21-P-6051RFM |
||
| Component description for battery management system control unit | Engine 274.9 in Model 205.047/053/147/247/253 Engine 274.9 in Model 253.354/954 N82/2 |
GF54.10-P-3012RFH | |
| Component description for fuel pump control unit | N118 | GF47.40-P-2001MRH | |
| Drivetrain control unit, component description | N127 | GF54.21-P-2141MRH | |
| Component description for power electronics control unit | Engine 274.920 in Model 205.047/053/147/247/253 Engine 274.920 in Model 253.354/954 N129/1 |
GF08.20-P-1001RFH | |
| Component description for fully integrated transmission control unit | Model 205.047/147/247 with engine 274.9 with transmission 724.2 Model 253.354/954 with engine 274.9 with transmission 724.2 Y38n4 |
GF27.60-P-5165RFH | |
| Model 205.053/253 with engine 274.9 with transmission 725.017 Y38n4 |
GF27.60-P-5165AHH | ||
| Table of contents for function description of gasoline injection and ignition system with direct injection | GF07.70-P-0998MRH |
