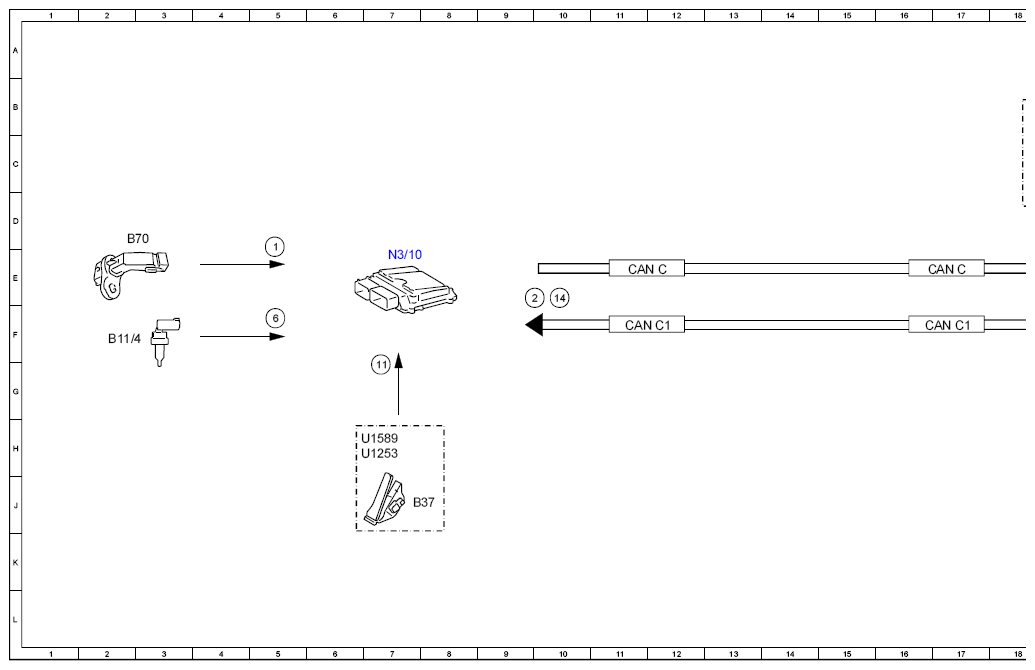

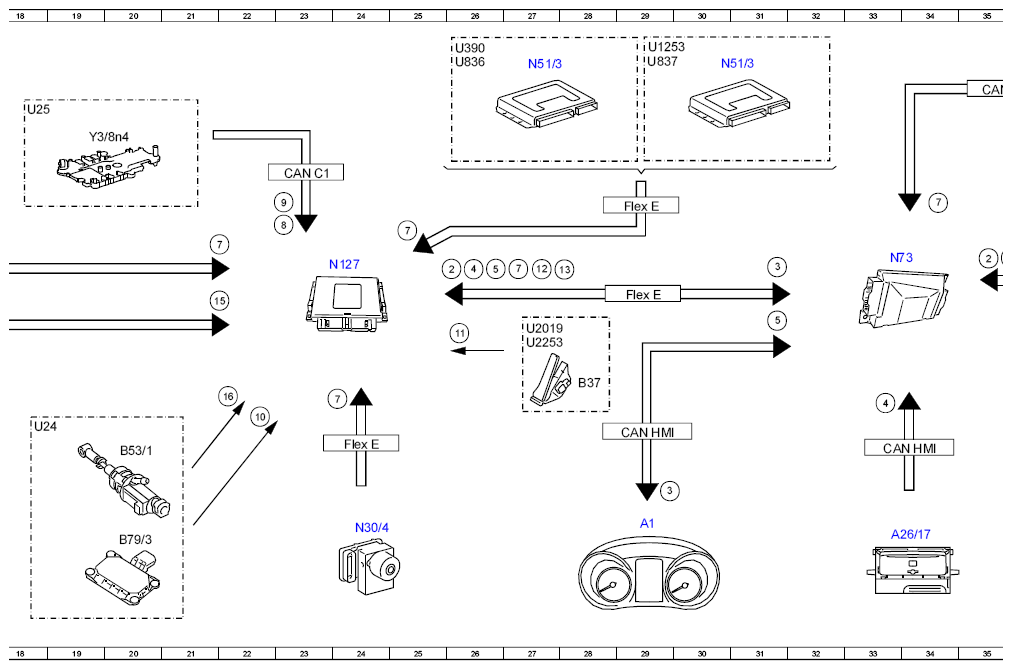

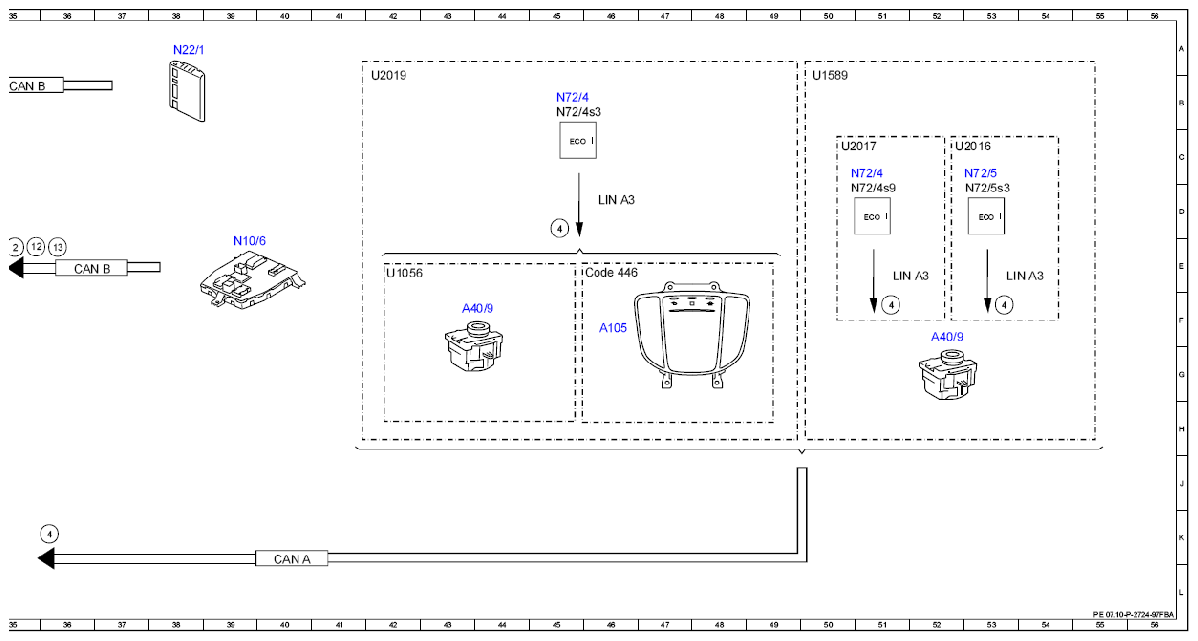

Electrical Function Schematic For Engine Management, Eco Start/Stop Function - PE07.10-P-2724-97FBA

Engine 274.9 in model 205 (except 205.047/147/247) Engine 274.9 in model 253 (except 253.354/954)

Code: Designation: Position:
1 Crankshaft Hall sensor, signal 5D
10 Manual transmission main shifter shaft position sensor, signal 22G
11 Accelerator pedal sensor, signal 7G
11 Accelerator pedal sensor, signal 26F
12 Engine hood contact switch, status 27D
12 Engine hood contact switch, status 36E
13 On-board electrical system energy state, signal 27D
13 On-board electrical system energy state, signal 36E
14 Engine start, request 10E
15 Engine running, signal 22E
16 Clutch pedal sensor, signal 22G
2 Outside temperature, signal 35E
2 Outside temperature, signal 10E
2 Outside temperature, signal 25E
3 Instrument cluster, message 29J
3 Instrument cluster, message 31E
4 ECO start/stop function button, status 36K
4 ECO start/stop function button, status 33G
4 ECO start/stop function button, status 45D
4 ECO start/stop function button, status 51F
4 ECO start/stop function button, status 53F
4 ECO start/stop function button, status 26E
5 Vehicle speed, signal 26E
5 Vehicle speed, signal 31F
6 Coolant temperature sensor, signal 5F
7 Engine stop enable, status 24G
7 Engine stop enable, status 21D
7 Engine stop enable, status 25D
7 Engine stop enable, status 34D
7 Engine stop enable, status 27E
8 Transmission oil temperature, signal 23D
9 Gear range, status 23D
A1 Instrument cluster 29J
A105 Touchpad 46F
A26/17 Head unit 34K
A40/9 Audio/COMAND control panel 43F
A40/9 Audio/COMAND control panel 52F
B11/4 Coolant temperature sensor 2F
B37 Accelerator pedal sensor 28G
B37 Accelerator pedal sensor 7J
B53/1 Clutch pedal sensor 20H
B70 Crankshaft Hall sensor 2D
B79/3 Manual transmission main shifter shaft position sensor 20K
CAN A Telematics CAN 40K
CAN B Interior CAN 36E
CAN B Interior CAN 35B
CAN C Engine CAN 11E
CAN C Engine CAN 17E
CAN C1 Drive train CAN 11F
CAN C1 Drive train CAN 17F
CAN C1 Drive train CAN 23C
CAN HMI User interface CAN 33H
CAN HMI User interface CAN 29H
Code 446 Touchpad only 46E
Flex E Chassis FlexRay 29E
Flex E Chassis FlexRay 24H
Flex E Chassis FlexRay 29D
LIN A3 LCP LIN 46D
LIN A3 LCP LIN 51E
LIN A3 LCP LIN 53E
N10/6 Front SAM control unit 39E
N127 Drivetrain control unit 24E
N22/1 Climate control, control unit 38A
N3/10 ME-SFI [ME] control unit 7E
N30/4 Electronic Stability Program control unit 24J
N51/3 AIRMATIC control unit 27A
N51/3 AIRMATIC control unit 30A
N72/4 Left lower control panel 45B
N72/4 Left lower control panel 51C
N72/4s3 ECO start/stop function button 45B
N72/4s9 ECO start/stop function button 51D
N72/5 Right lower control panel 53C
N72/5s3 ECO start/stop function button 53D
N73 Electronic ignition switch control unit 33E
U1056 Valid except code 446 (Touchpad only) 42E
U1253 Valid for model 253 29A
U1253 Valid for model 253 6H
U1589 Valid up to model year 2019 50B
U1589 Valid up to model year 2019 6H
U2016 Valid up to model year 2016 52C
U2017 Valid as of model year 2016 50C
U2019 Valid as of model year 2019 42B
U2019 Valid as of model year 2019 27F
U2253 Not valid for model series 253 27F
U24 Valid for manual transmission 18H
U25 Valid for automatic transmission 18B
U390 Valid for model 205 26A
U836 Valid for AIRMATIC 26A
U837 Valid for AIR BODY CONTROL 29A
Y3/8n4 Fully integrated transmission control, control unit 19C
